Home >> Mercury >> 2008 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> System Diagram >> Strobe/Light Bar Control Switch

Strobe/Light Bar Control Switch

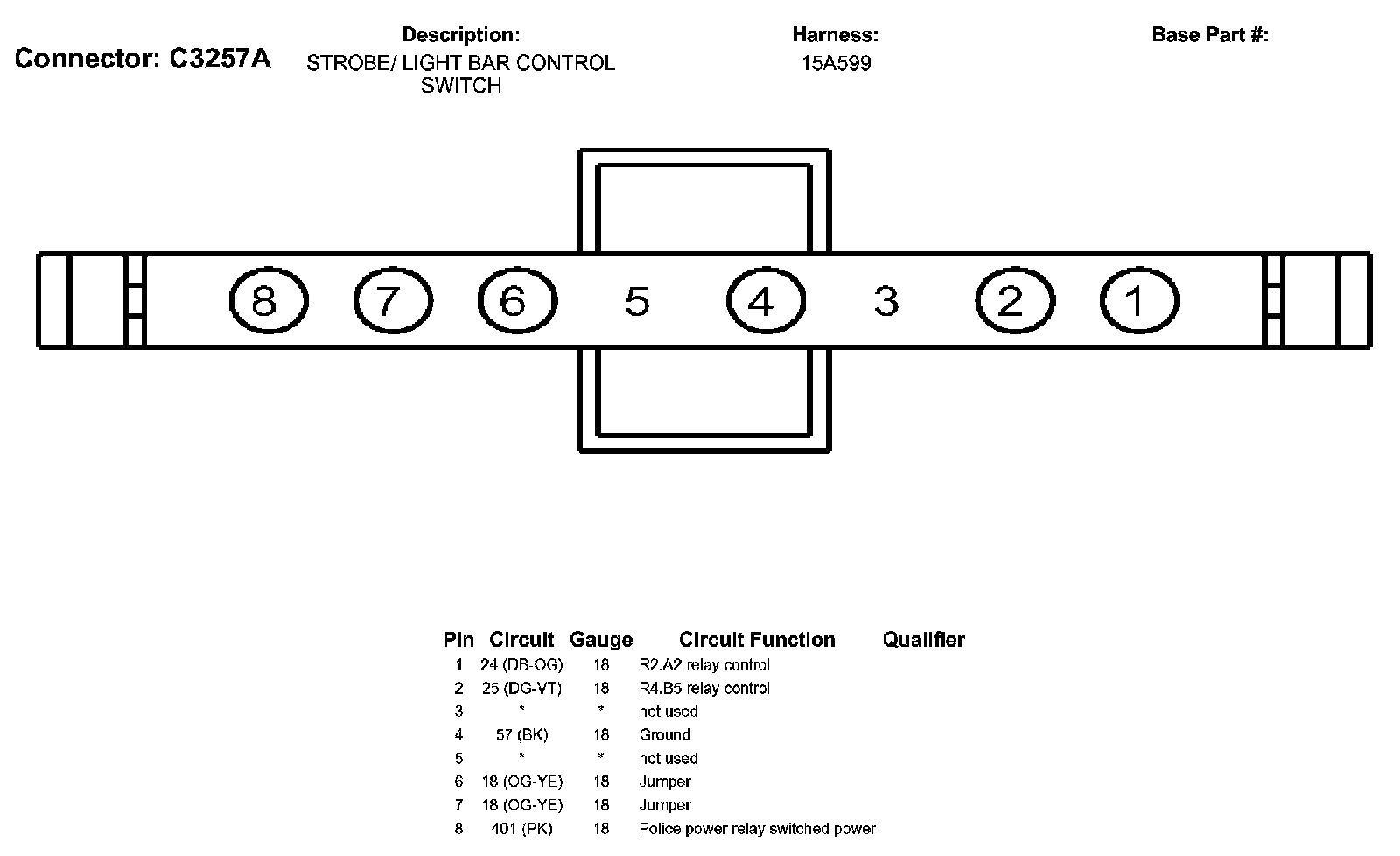

C3257A:

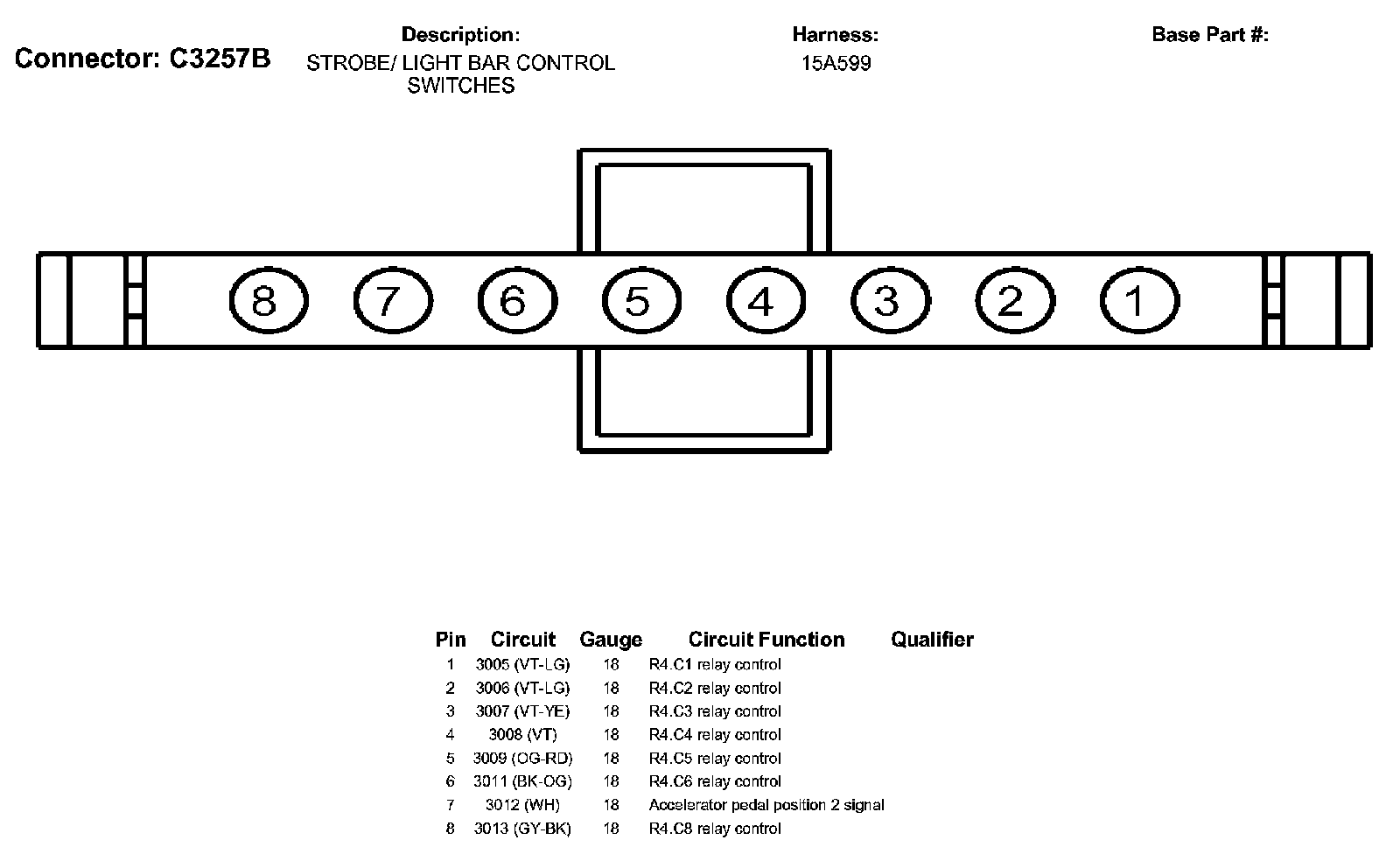

C3257B:
