Home >> Mercury >> 2008 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp >> System Diagram >> Headlamp, Right

Headlamp, Right

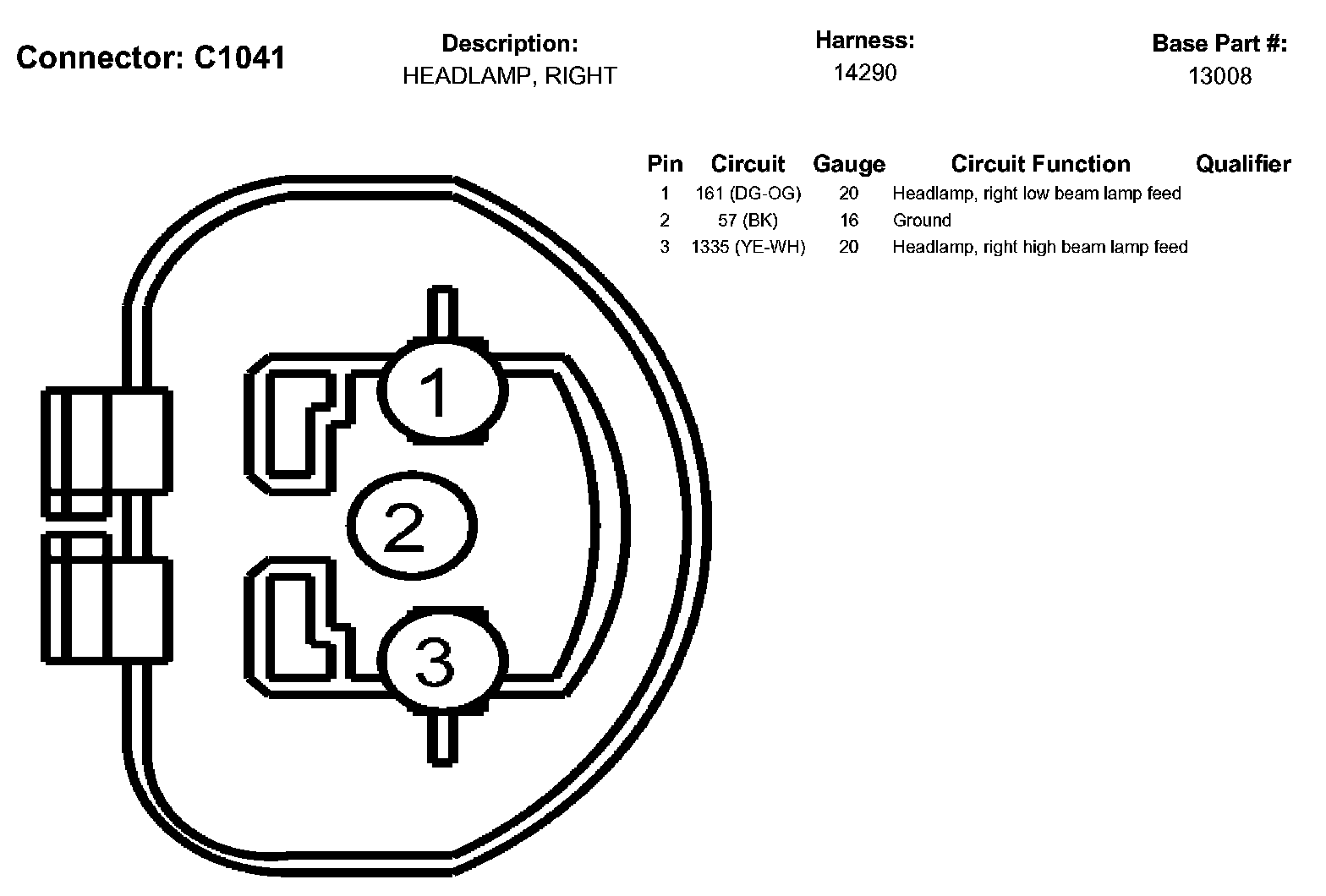

C1041:

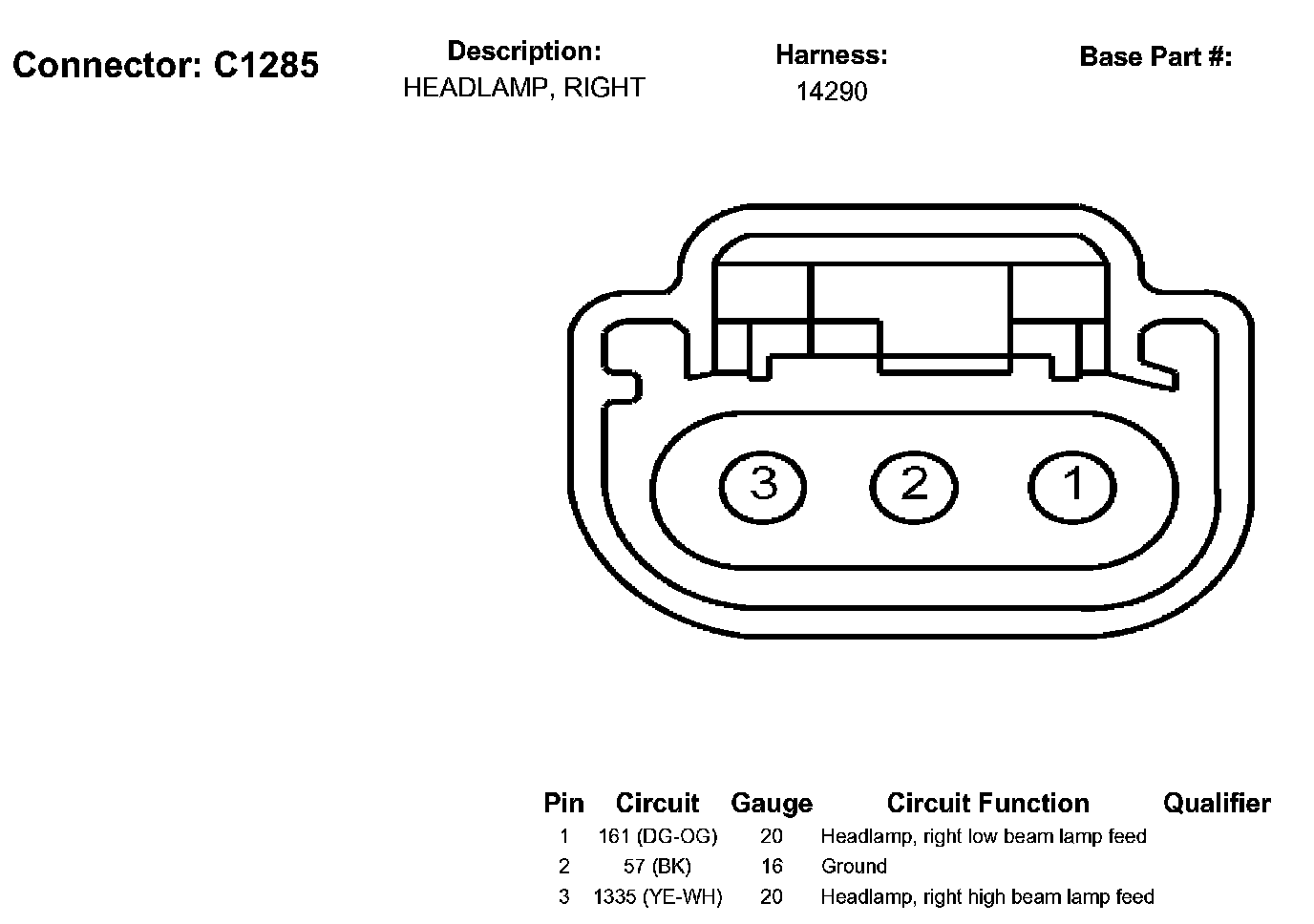

C1285:
