Test A: The Speed Control Is Inoperative

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

Normal Operation
The PCM sends a signal through circuit 151 (LB/BK) to the speed control switch, which passes through the clockspring. The return signal is sent through circuit 848 (DG/OG).

This pinpoint test is intended to diagnose the following:
- PCM not configured for speed control
- Speed control switches
- Digital transmission range (TR) sensor
- PCM

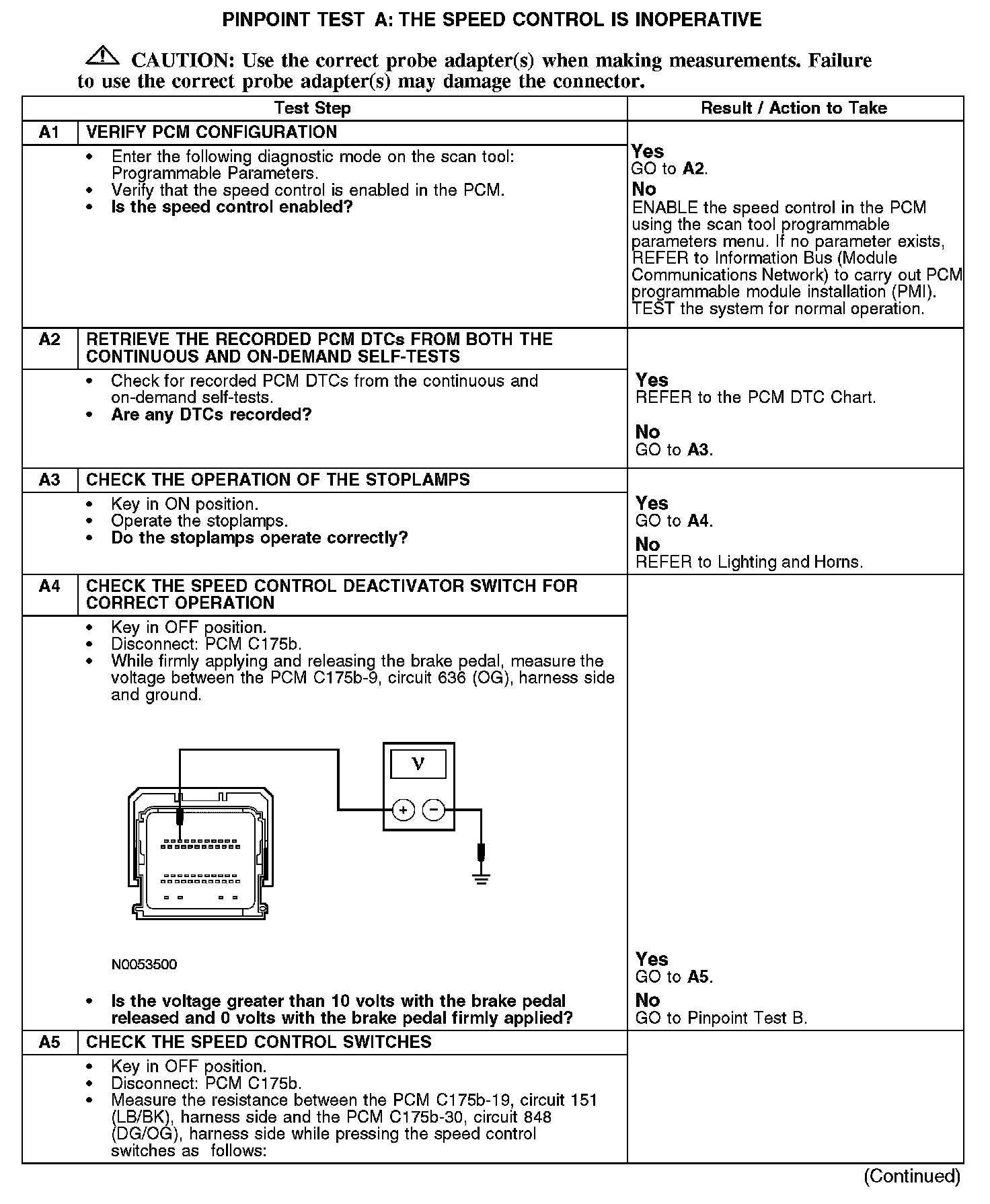

A1-A5:

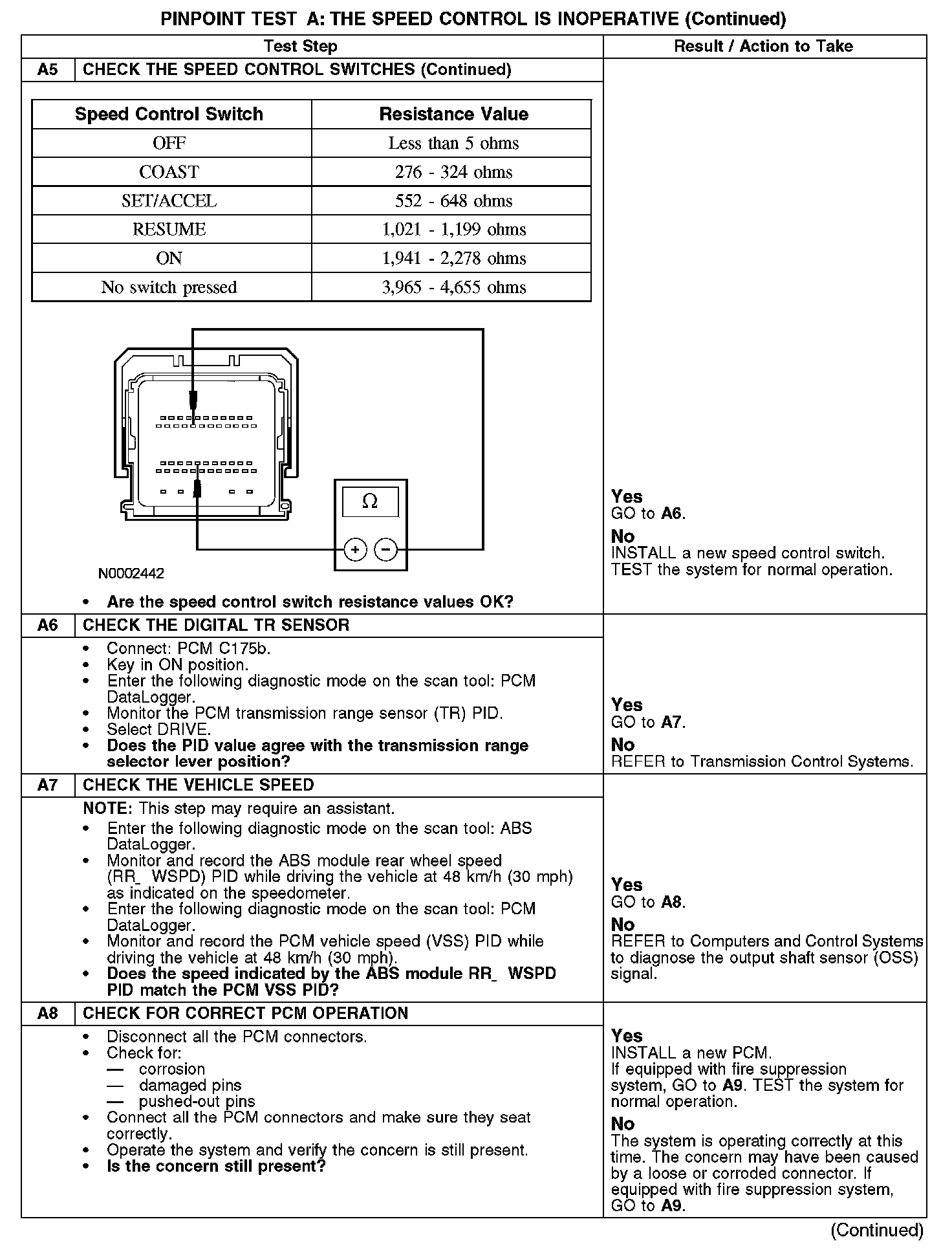

A5-A8:

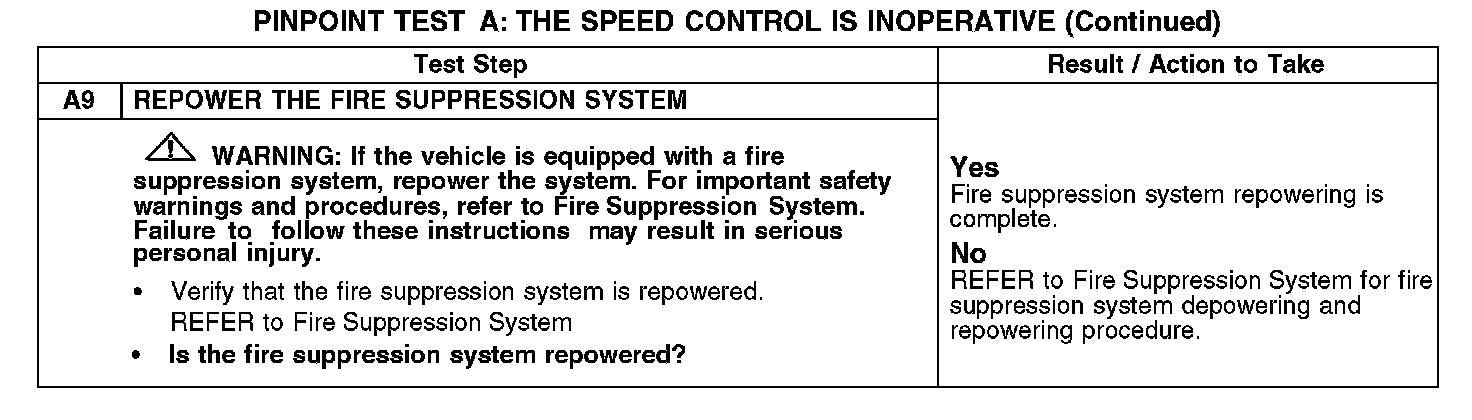

A9:
