Inspection and Verification - Adjustable Pedals

Inspection and Verification - Adjustable Pedals

1. Verify the customer concern by operating the adjustable pedal.
2. Visually inspect for obvious signs of mechanical or electrical damage.

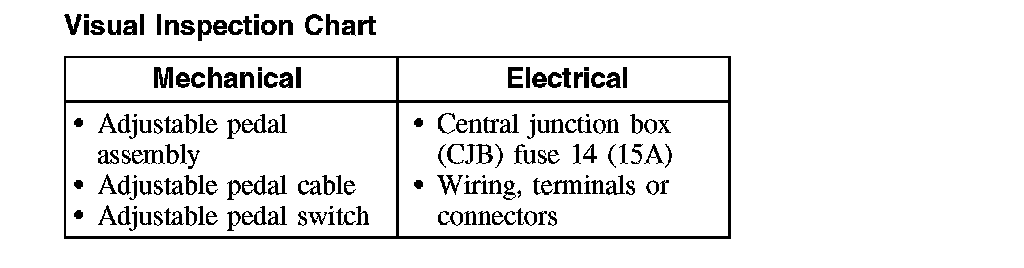

Visual Inspection Chart

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, GO to Symptom Chart - Adjustable Pedals. Symptom Chart - Adjustable Pedals
