Removal and Installation

Brake Master Cylinder














Removal and Installation

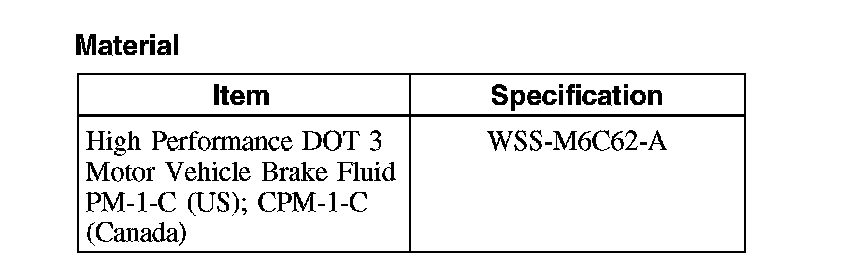

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

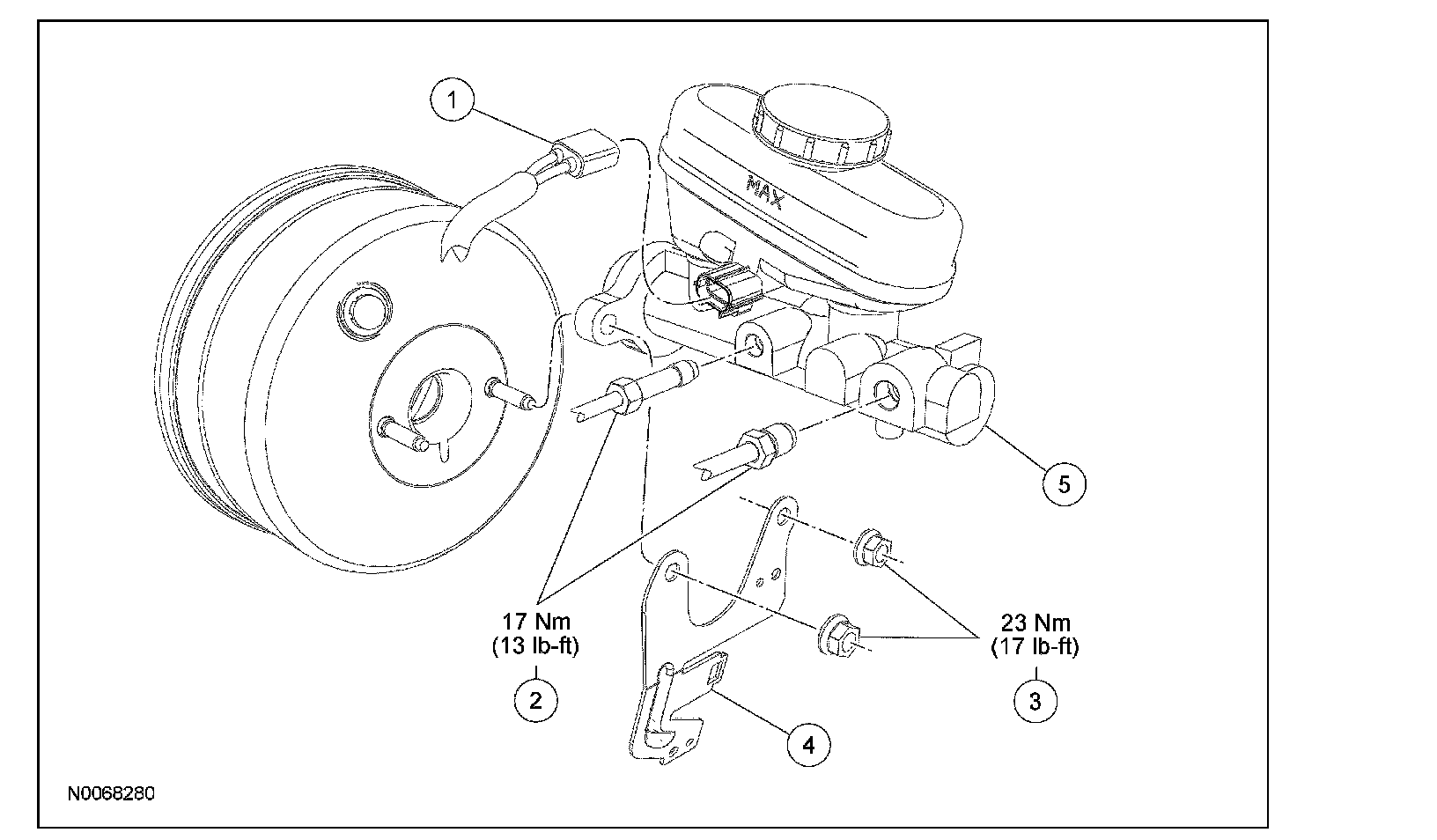

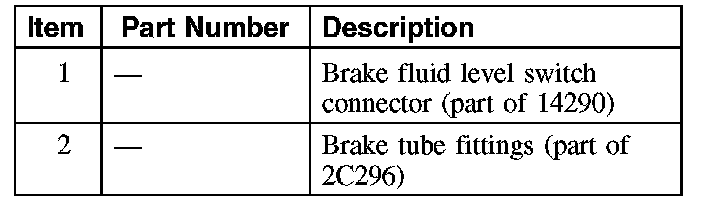

1. Disconnect the brake tube fittings from the master cylinder.
^ To install, tighten to 17 Nm (13 ft. lbs.).
2. Disconnect the brake fluid level switch connector.

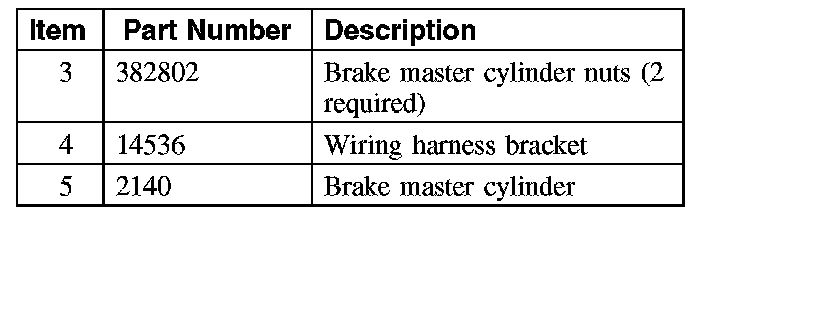

3. Remove the 2 brake master cylinder nuts.
^ To install, tighten to 23 Nm (17 ft. lbs.).
4. Remove the wiring harness bracket and position aside.





5. Remove the brake master cylinder.
6. To install, reverse the removal procedure.
^ Bleed the brake system.
