Power Seat Switch: Service and Repair
LUMBAR CONTROL SWITCHExploded View
Front Seat Backrest (Part 1):
Front Seat Backrest (Part 2):
Front Seat Cushion (Part 1):
Front Seat Cushion (Part 2):
Removal and Installation
WARNING:
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Driver side shown, passenger side similar.
1. Depower the SRS.

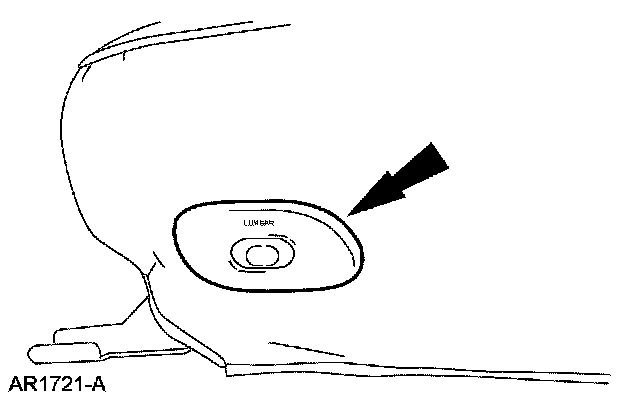

2. NOTE: Take care in removing the power lumbar bezel, pry the side of bezel at tabs to remove.
Remove the cover.

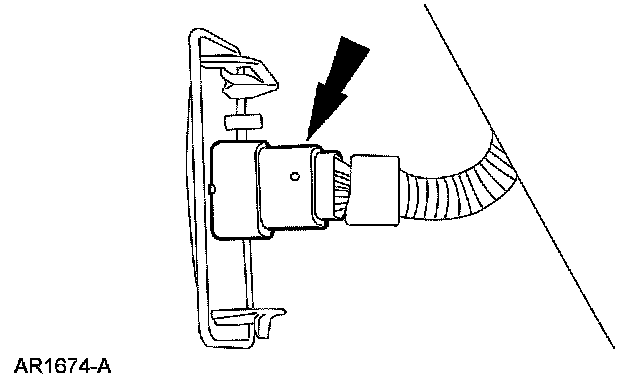

3. Disconnect the lumbar control switch electrical connector. Remove the lumbar control switch.
4. To install, reverse the removal procedure.
5. Repower the SRS.
