Test K: The Heated Seat Is Inoperative - Driver, Does Not Operate In Low

PINPOINT TEST K: THE HEATED SEAT IS INOPERATIVE - DRIVER, DOES NOT OPERATE IN LOW

Normal Operation
The heated seat is activated when the heated seat switch sends a ground signal to the heated seat module input from circuit 1255 (WH/RD) to activate LOW heat or OFF. The system will remain ON until the module times-out or is switched OFF.

This pinpoint test is intended to diagnose the following:
- Faulty circuit
- Faulty heated seat switch
- Faulty heated seat module

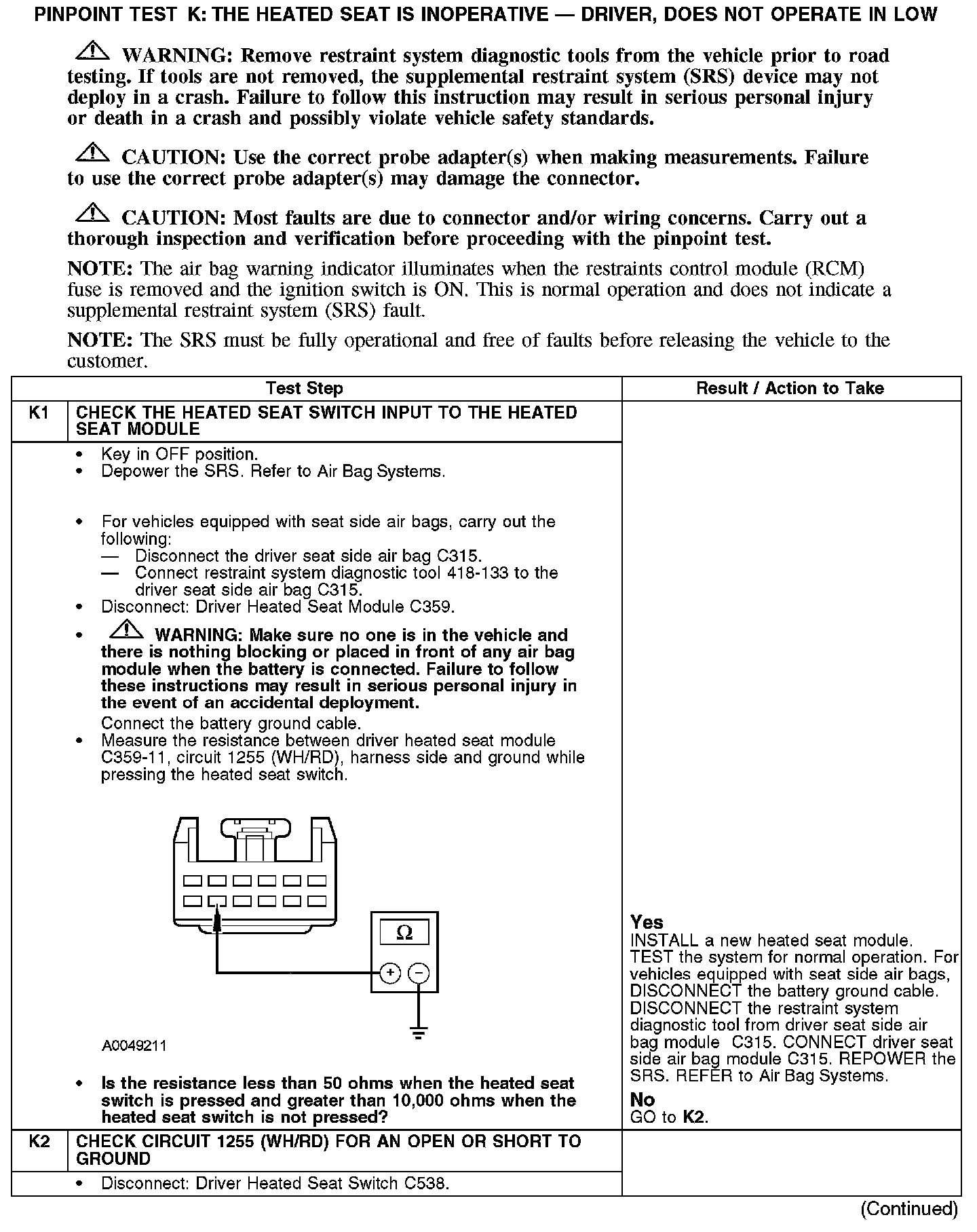

K1-K2:

K2-K3:
