Seat Track: Service and Repair

SEAT TRACK

Exploded View

Front Seat Backrest (Part 1):

Front Seat Backrest (Part 2):

Front Seat Cushion (Part 1):

Front Seat Cushion (Part 2):

Removal and Installation

WARNING:
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Driver side shown, passenger side similar (except where indicated).

All seat tracks
1. Position the seat to access the fasteners.
2. Depower the SRS.
3. Remove the affected seat.

Driver seat track only
4. Disconnect the safety belt buckle electrical connector.

5. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.

Remove the nut and the safety belt buckle.
- To install, tighten to 40 Nm (30 lb-ft).

Passenger seat track only

6. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.

Remove the safety belt buckle with belt tension sensor.
1 Disconnect the electrical connector.
2 Remove the nut.
- To install, tighten to 40 Nm (30 lb-ft).

3 Remove the safety belt buckle with belt tension sensor.

All seat tracks

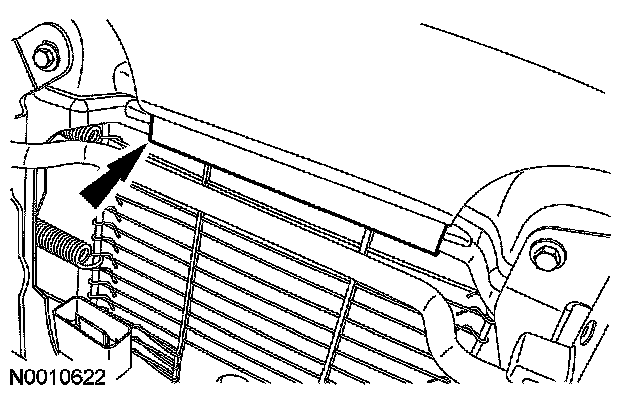

7. Release the cushion trim cover rear J-clip.

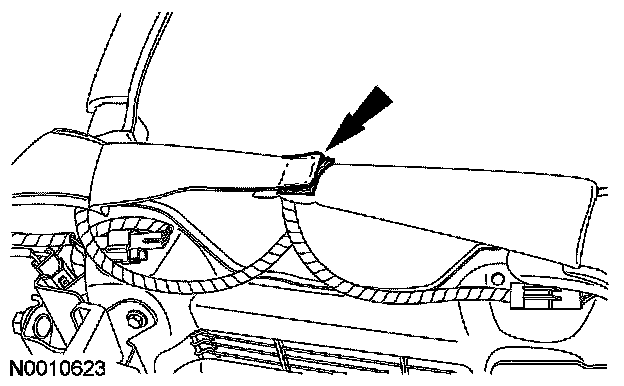

8. Release the cushion trim cover rear hook-and-loop strip.

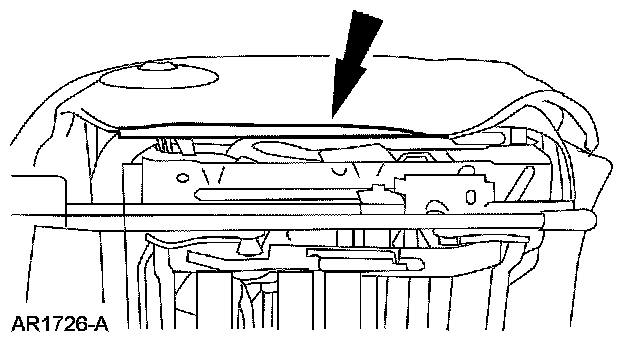

9. Release the J-clip.

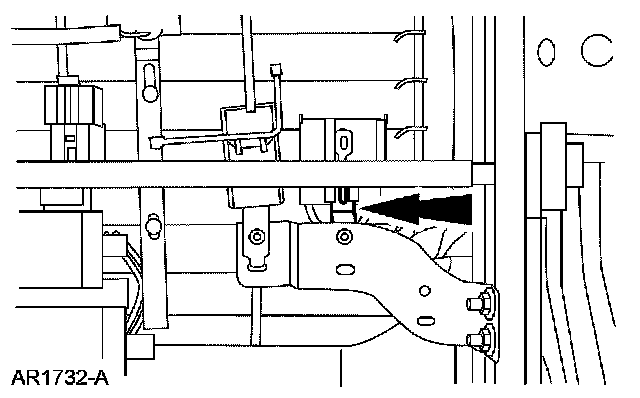

10. Detach the electrical connector.







Driver seat track
11. Disconnect the seat position sensor electrical connector

Power seat tracks
12. Remove the 2 recliner-to-seat track bolts.
- To install, tighten to 52 Nm (38 lb-ft).

Manual seat tracks
13. Remove the 2 recliner-to-seat track bolts.
- To install, tighten to 55 Nm (41 lb-ft).

All seat tracks
14. Remove the pivot bolt.
- To install, tighten to 45 Nm (33 lb-ft).

15. Remove the seat track.
- Disconnect any electrical connectors still attached.
- Remove the 4 seat track-to-cushion frame bolts and seat track.
- To install, tighten to 20 Nm (15 lb-ft).

16. To install, reverse the removal procedure.
17. Install the affected seat
18. Repower the SRS.
