Overhaul

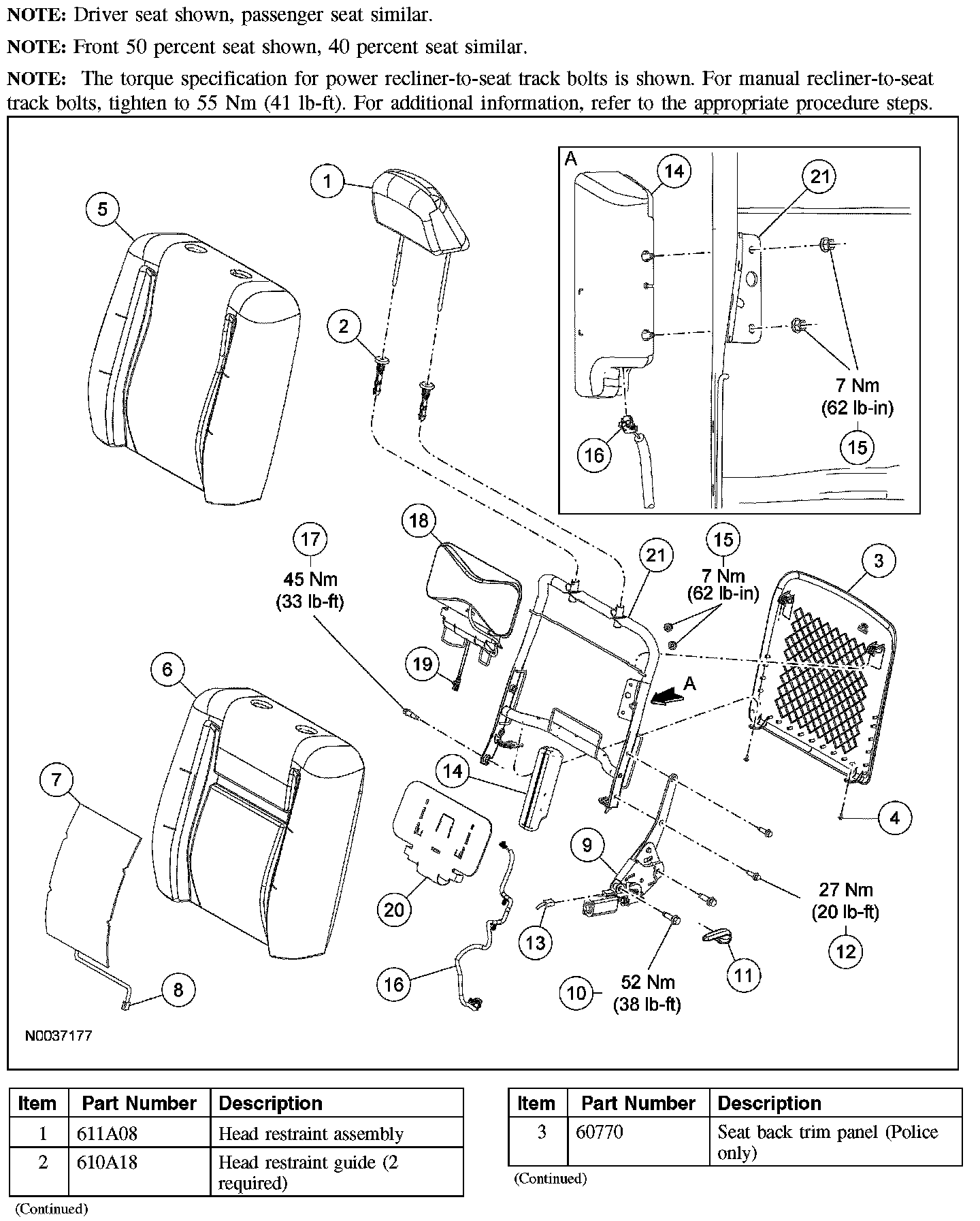

SEAT BACKREST - FRONTPart 1:
Part 2:
Disassembly
WARNING:
- Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- If the seat side air bag cover has been damaged or separated from its mounting, or if the air bag material has been exposed, install a new seat side air bag module. Never try to repair the seat side air bag module. Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
- Front seat backrest trim covers installed on seats equipped with seat side air bags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- If a side air bag deployment took place the seat backrest foam pad, trim cover, and side air bag module must be installed new. The backrest frame should be installed new if necessary.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Driver side shown, passenger side similar.
All vehicles
1. Position the seat to access the fasteners.
2. Depower the SRS.
3. Remove the front seat backrest.
Police vehicles

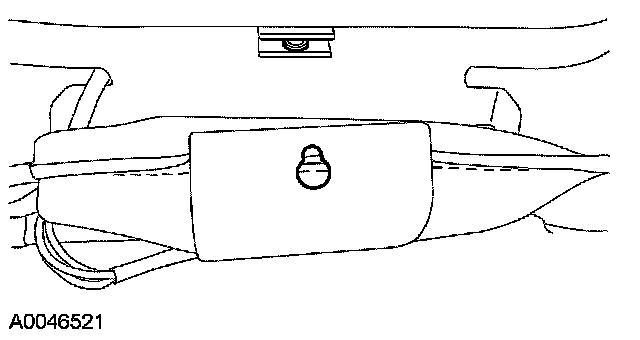

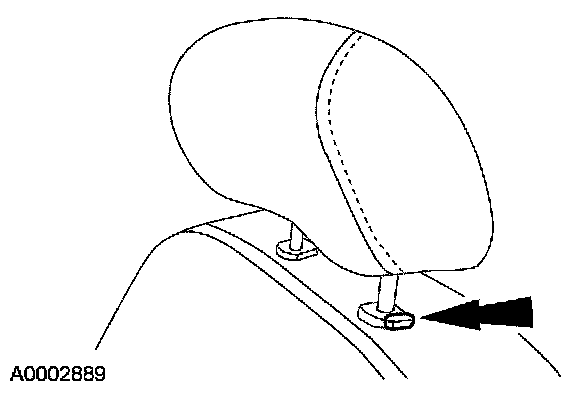

4. Remove the head restraint locking clip (outboard side - driver, inboard side - passenger).
All vehicles

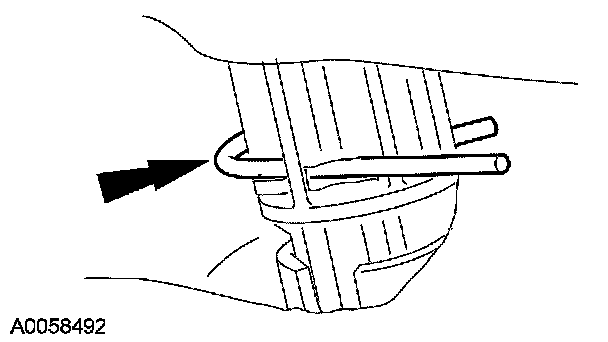

5. Pull the head restraint out to the end of travel. Press the release button and then pull the head restraint rod past its stop position.
Vehicles with seat side air bags
6. NOTE: If installing a new side air bag module, use new retaining nuts. If the same side air bag module is to be reused, then reuse the side air bag module nuts.

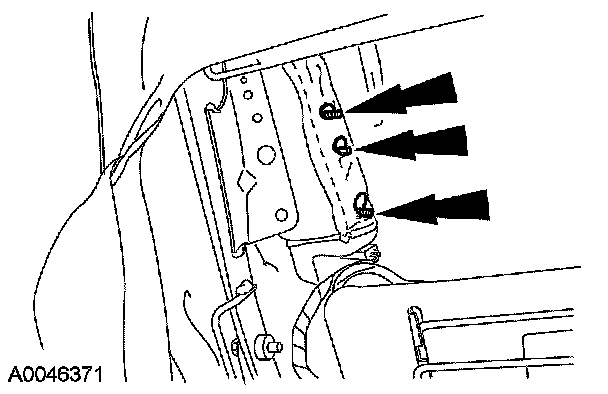

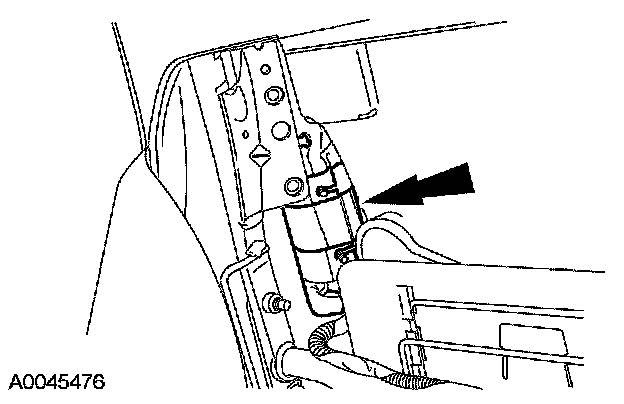

Remove the side air bag module nuts.
7. Position the side air bag module and deployment chute away from the mounting bracket and seat backrest frame.
8. Position the backrest trim cover and backrest foam pad forward enough to access the side air bag module.
9. Remove the side air bag module from the deployment chute.
- Pull the side air bag module mounting studs back through the deployment chute openings and remove the side air bag module from the deployment chute.
10. Disconnect the electrical connector and remove the side air bag module.
All vehicles

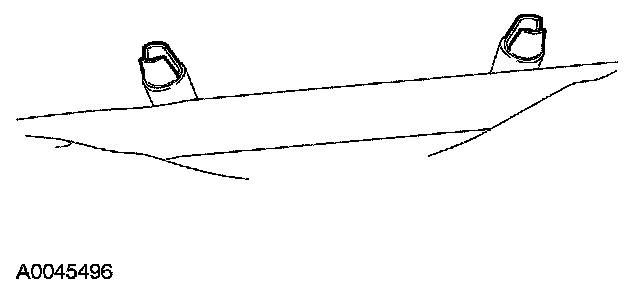

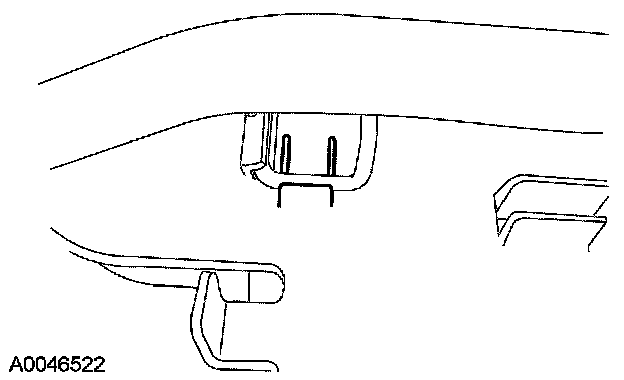

11. From inside the seat backrest, pinch the headrest guide pin ends and remove the sleeves.
12. Remove the backrest foam pad and trim cover.
- Separate the trim cover from the backrest foam pad.
Vehicles with power lumbar

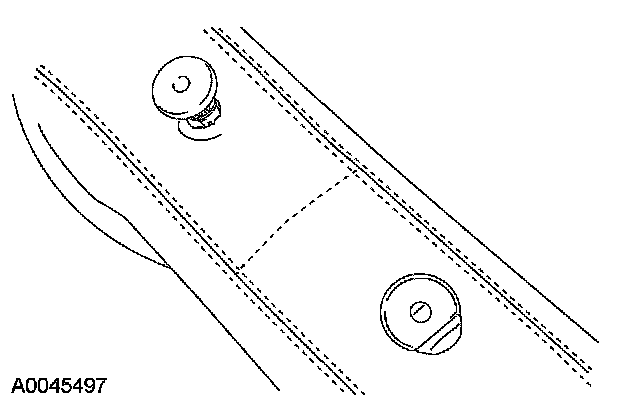

13. Detach the lumbar motor bracket clip.
14. Detach the 2 lumbar support bracket clips and slide the lumbar assembly up and off.
Assembly
Vehicles with power lumbar
1. Slide the lumbar support bracket and lumbar assembly on lumbar seat frame until seated on the 2 clips.
2. Install the lumbar motor and attach the lumbar motor bracket clip.
Vehicles with seat side air bags

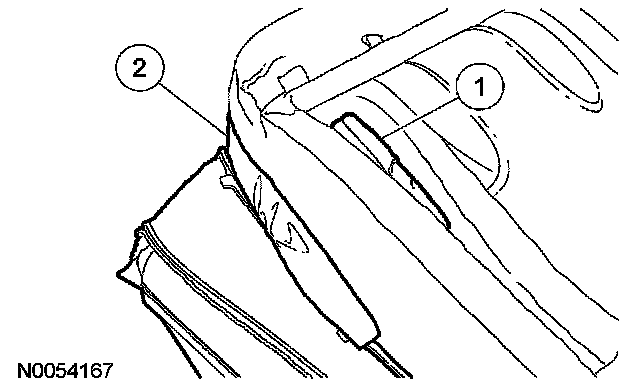

3. Position the backrest trim cover to the backrest foam pad.
1 With the backrest trim cover inside out, feed the side air bag module deployment chute through the backrest foam pad opening.
2 Make sure the deflector flap is positioned as shown.
All vehicles
4. Position the backrest trim cover around the backrest foam pad and attach the hook-and-loop strips.
- If equipped with a seat side air bag, make sure the deflector flap is positioned between the backrest trim cover and the backrest foam pad.
5. Align the backrest foam pad and trim cover to the backrest frame.
6. Install the head restraint sleeves.
Police vehicles

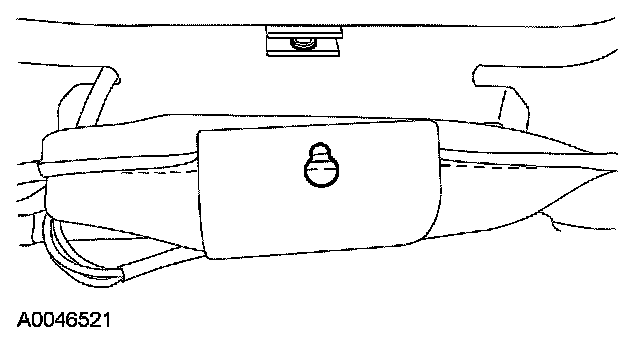

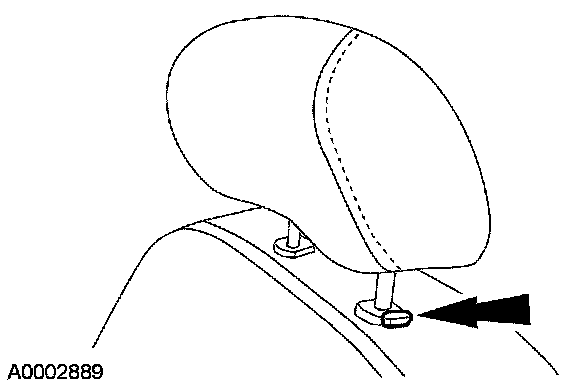

7. Install the head restraint locking clip onto the head restraint sleeve.
Vehicles with seat side air bags

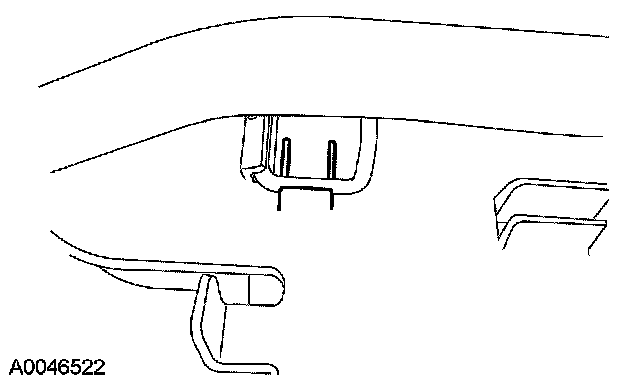

8. Connect the side air bag module electrical connector.
9. WARNING:
- Before installing the seat side air bag module/deployment chute assembly:
- Inspect the side air bag module and mounting surfaces for any damage or foreign material.
- Remove any foreign material from the mounting surfaces of the deployment chute, the seat backrest frame mounting bracket and the air bag module cavity in the seat backrest foam pad.
- Install new parts if damaged.
Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
- Inspect the seat side air bag module and mounting surfaces for any damage or foreign material before installing the seat side air bag module. If any damage is found, install new components. If any foreign material is found, remove it. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.
- If the seat side air bag cover has been damaged or separated from its mounting, or if the air bag material has been exposed, install a new seat side air bag module. Never try to repair the seat side air bag module. Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
- Check the seat side air bag deployment chute for damage. The deployment chute must not be repaired. If there is any damage to the deployment chute, a new seat back trim cover and deployment chute must be installed as a unit. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.
- If the seat side air bag module deployment chute is not correctly positioned and closed, the seat side air bag module may not deploy correctly. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.
NOTE: The alignment pin will only allow the side air bag module to be installed to the seat backrest mounting bracket one way.
Position the side air bag module into the deployment chute.
- Position the side air bag module into the deployment chute with the alignment pin offset to the top and the electrical connector to the bottom of the seat backrest. This will position the alignment pin correctly when the side air bag module and deployment chute are mounted to the backrest frame mounting bracket.
- The side air bag module mounting studs and alignment pin must come through the deployment chute stud openings.
10. WARNING:
- Before installing the seat side air bag module/deployment chute assembly:
- Inspect the side air bag module and mounting surfaces for any damage or foreign material.
- Remove any foreign material from the mounting surfaces of the deployment chute, the seat backrest frame mounting bracket and the air bag module cavity in the seat backrest foam pad.
- Install new parts if damaged.
Failure to follow these instructions may result in the seat side air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
- Front seat backrest trim covers installed on seats equipped with seat side air bags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side air bag module deploying incorrectly and increase the risk of serious personal injury or death in a crash.

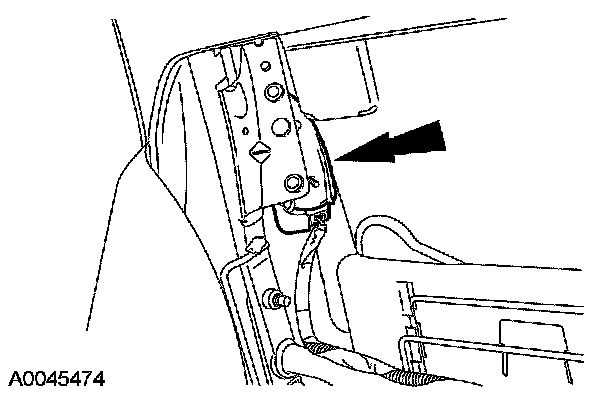

Install the side air bag module onto the front seat backrest frame mounting bracket. Install the nuts.
- The deployment chute should not have any wrinkles or folds where it contacts the seat back frame mounting bracket.
- Tighten to 7 Nm (62 lb-in).
11. Reposition the backrest foam pad and trim cover to the backrest frame.
12. NOTE: The backrest frame and side air bag module have been removed for clarity.

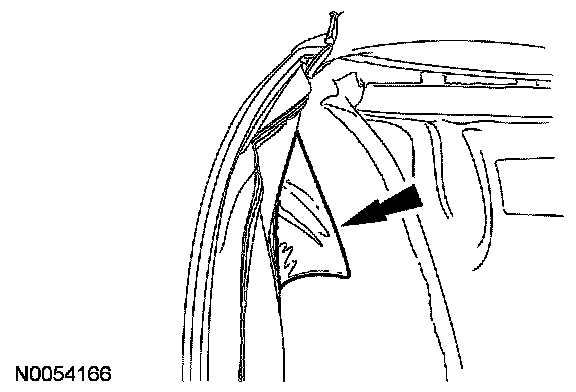

Make sure the deflector flap lays flat between the backrest trim cover and backrest foam pad.
All vehicles
13. Install the head restraint.
14. Install the front seat backrest.
15. Repower the SRS.
