Exterior Mirror Cover

EXTERIOR MIRROR COVER

Exploded View







Removal

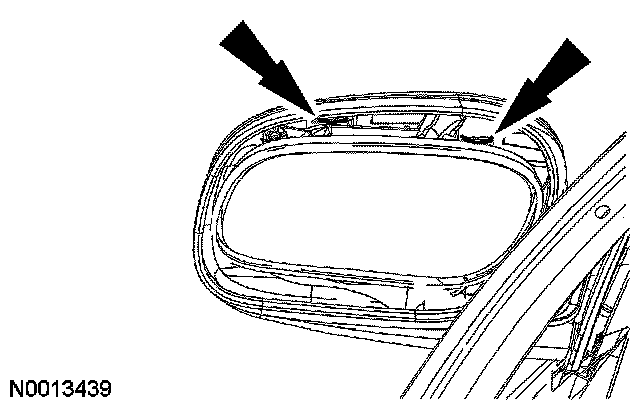

1. Position the exterior mirror glass in the full downward position.
2. Using a suitable tool, release the 2 locking tabs from the exterior mirror cover.

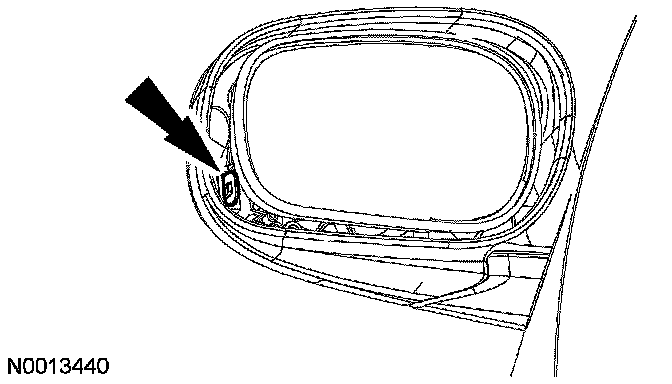

3. Position the exterior mirror glass in the full in position.
4. Using a suitable tool, release the locking tab and remove the exterior mirror cover.







Installation
1. Position the exterior mirror cover on the exterior mirror.
2. Place a hand against the back of the exterior mirror cover and press the cover in place until it is fully seated.
