Exterior Mirror

EXTERIOR MIRROR

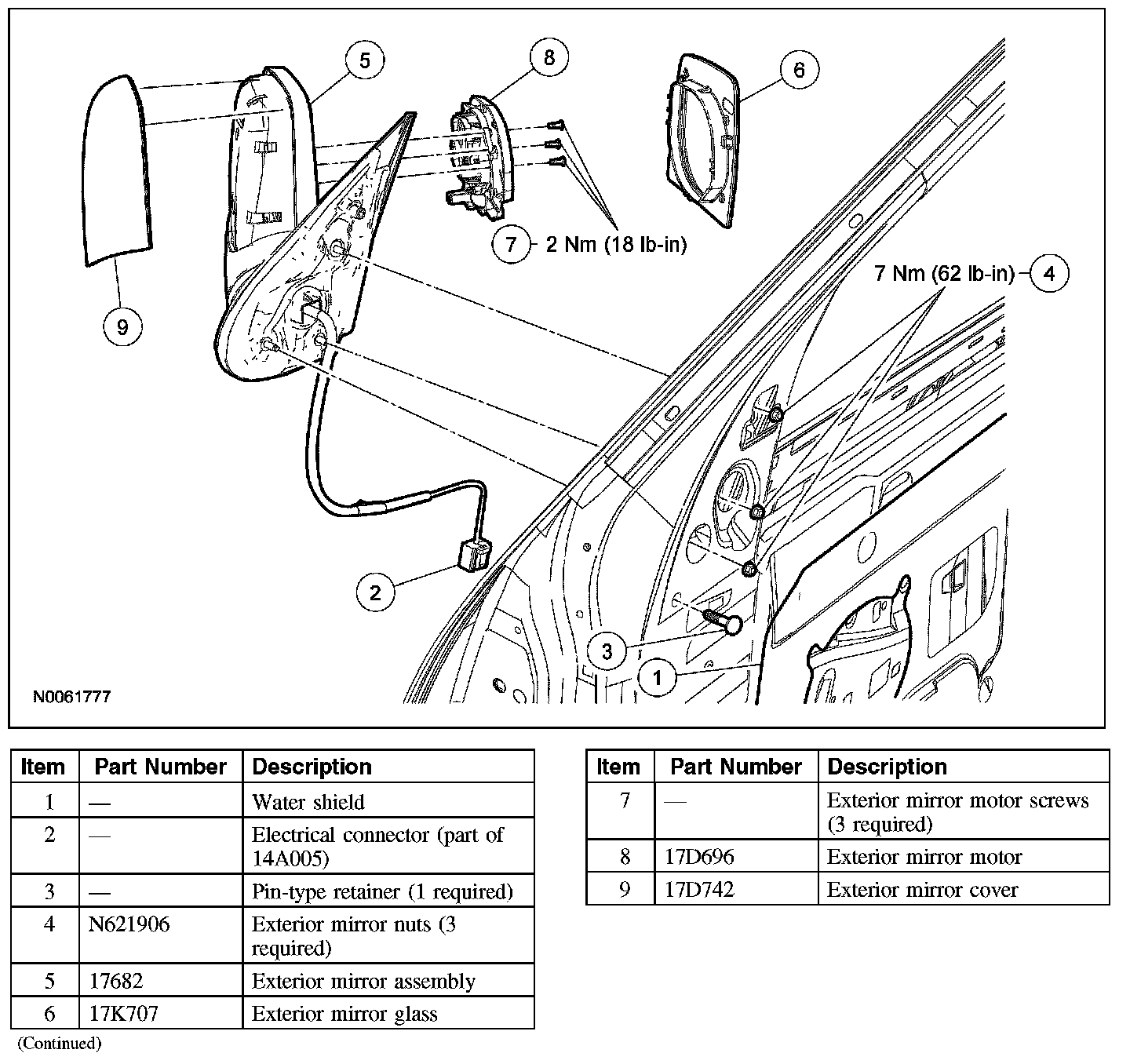

Exploded View







Removal and Installation
1. Remove the front door trim panel.
2. Position the water shield aside.
3. Remove the pin-type retainer.
4. Through the door opening, disconnect the power exterior mirror electrical connector.
5. Remove the 3 nuts and the exterior mirror.
- To install, tighten to 7 Nm (62 lb-in).

6. To install, reverse the removal procedure.
