Rear Door Lock Actuator

REAR DOOR LOCK ACTUATOR

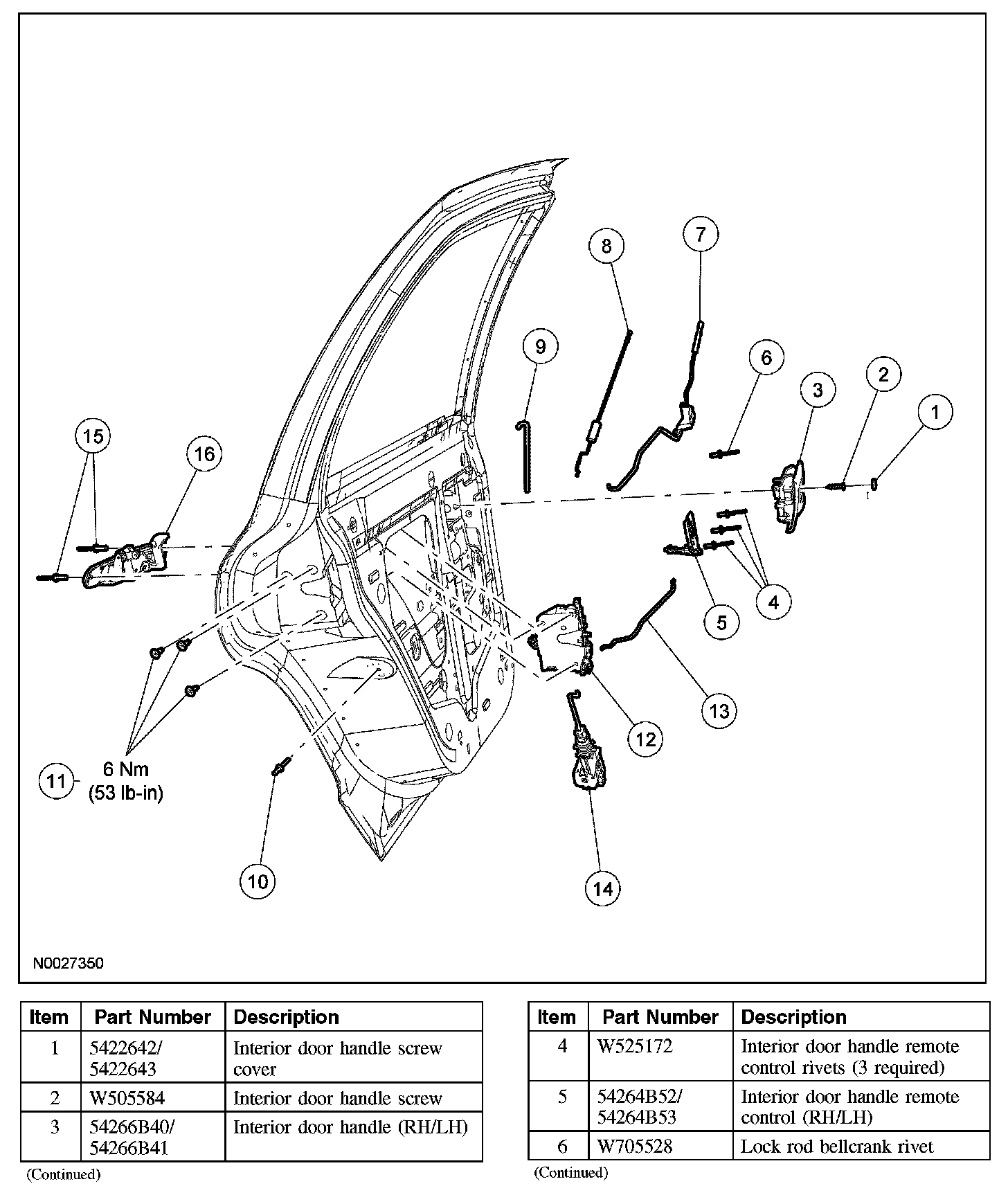

Exploded View

Part 1:

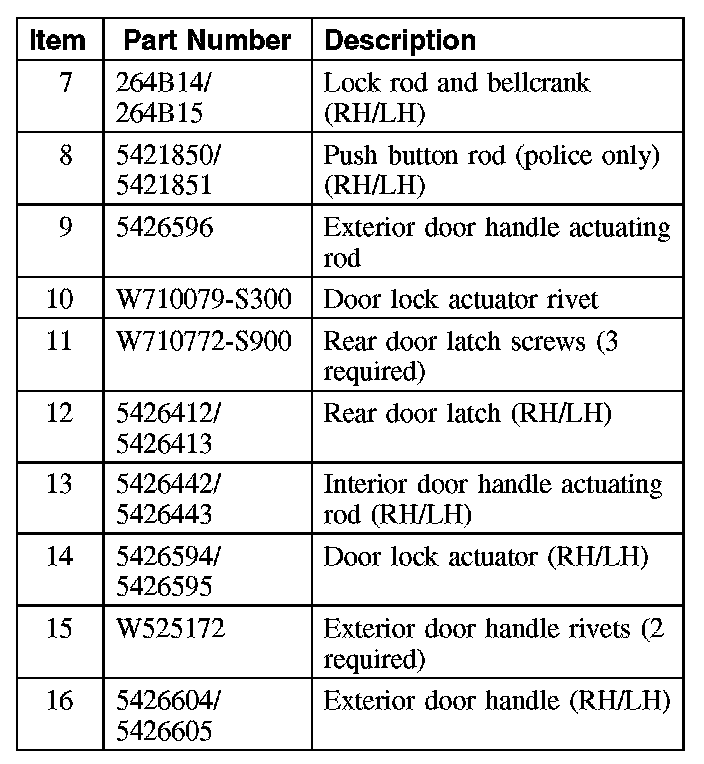

Part 2:

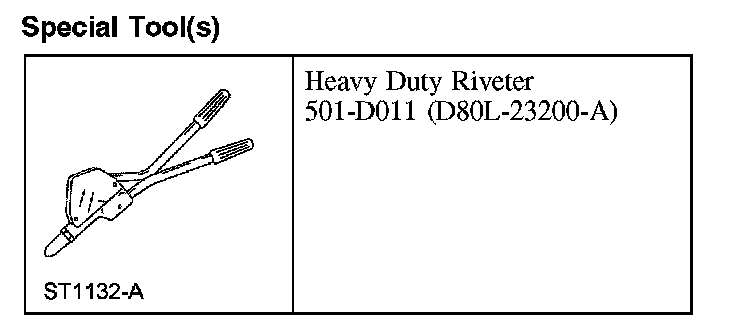

Special Tool(s)

Special Tool(s):

Removal and Installation
1. Remove the rear door latch.
2. Remove the door lock actuator.
3. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
