SEAT ARMREST - REAR






Disassembly and Assembly

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

For police vehicles equipped with a fire suppression system, depower the system.

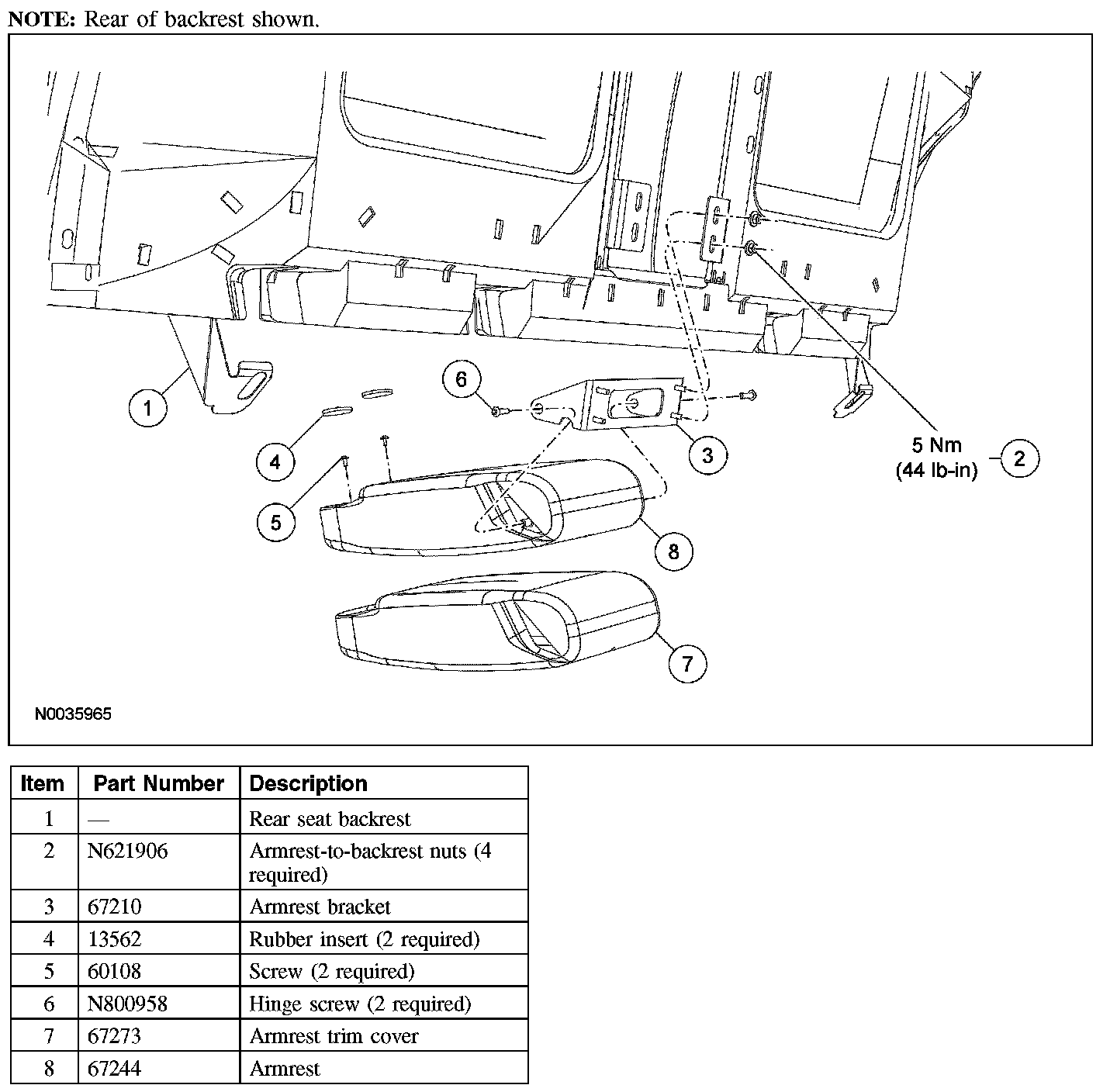

2. Remove the armrest.
3. Remove the rubber inserts from the armrest cup holder.
4. Remove the 2 screws from the armrest cup holder.
5. Remove the 2 pivot screws from the armrest.

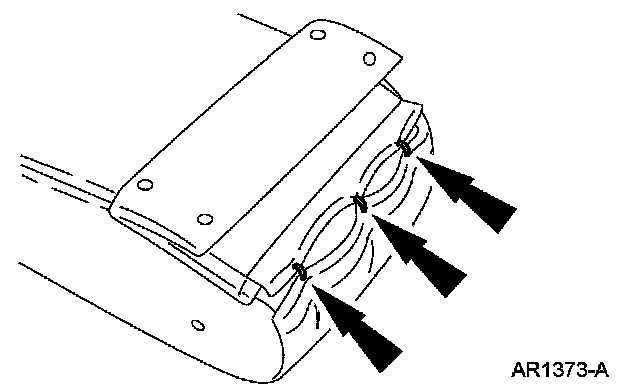

6. Remove the hog rings.







7. Remove the armrest trim cover.
8. To assemble, reverse the disassembly procedure.
9. Install the armrest.

10. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

For police vehicles equipped with a fire suppression system, repower the system.
