Fender Splash Shield - RH

FENDER SPLASH SHIELD - RH

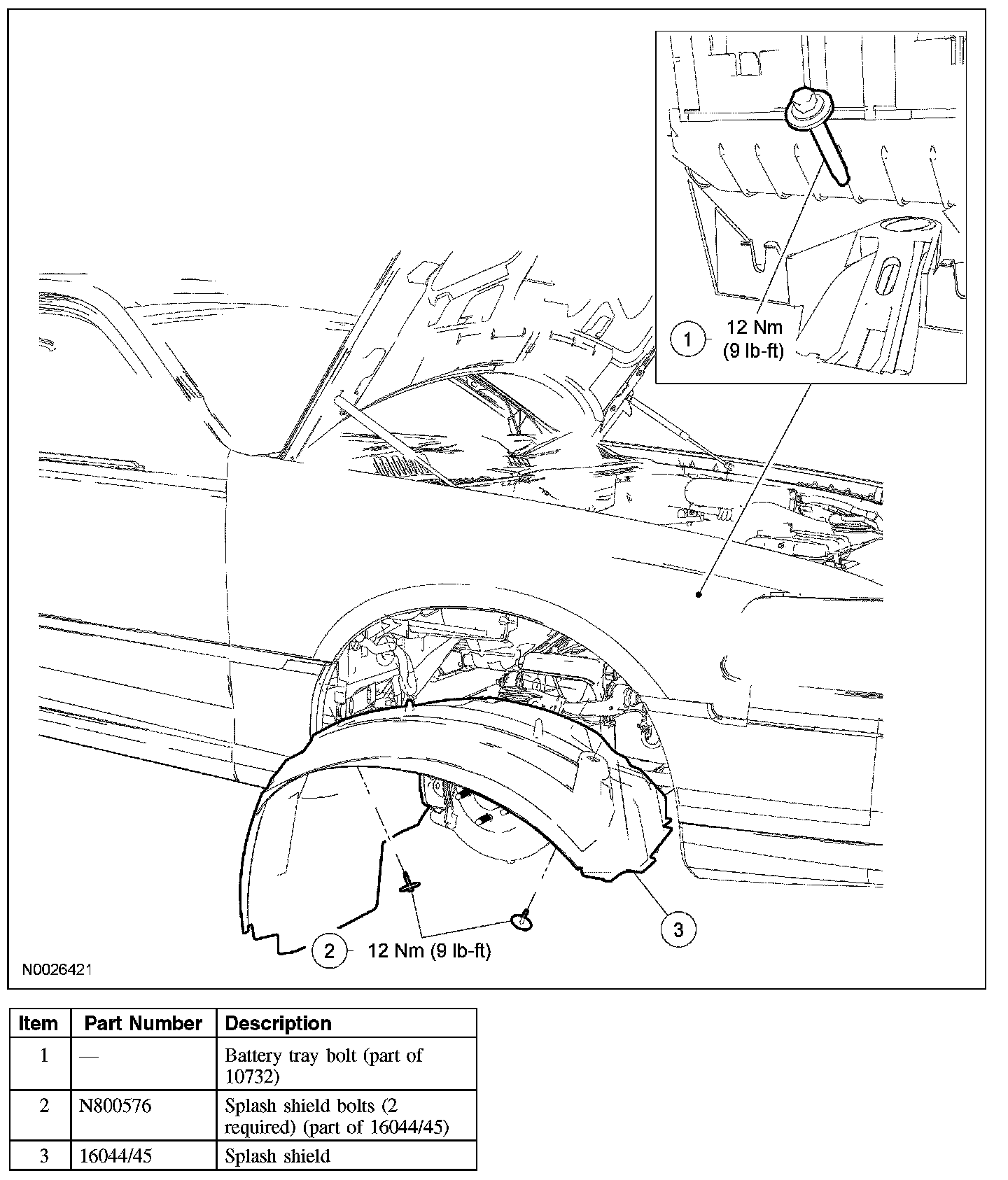

Removal and Installation

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

Remove the battery.

2. Remove the battery tray bolt.
- To install, tighten to 12 Nm (9 lb-ft).

3. With the vehicle in NEUTRAL, position it on a hoist.
4. Remove the 2 bolts and the fender splash shield.
- To install, tighten to 12 Nm (9 lb-ft).

5. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

To install, reverse the removal procedure.
