Rear Door: Service and Repair

DOOR - REAR







Removal and Installation
1. Disconnect the electrical connector at the door.

2. CAUTION: To avoid damaging the door, this step requires an assistant.

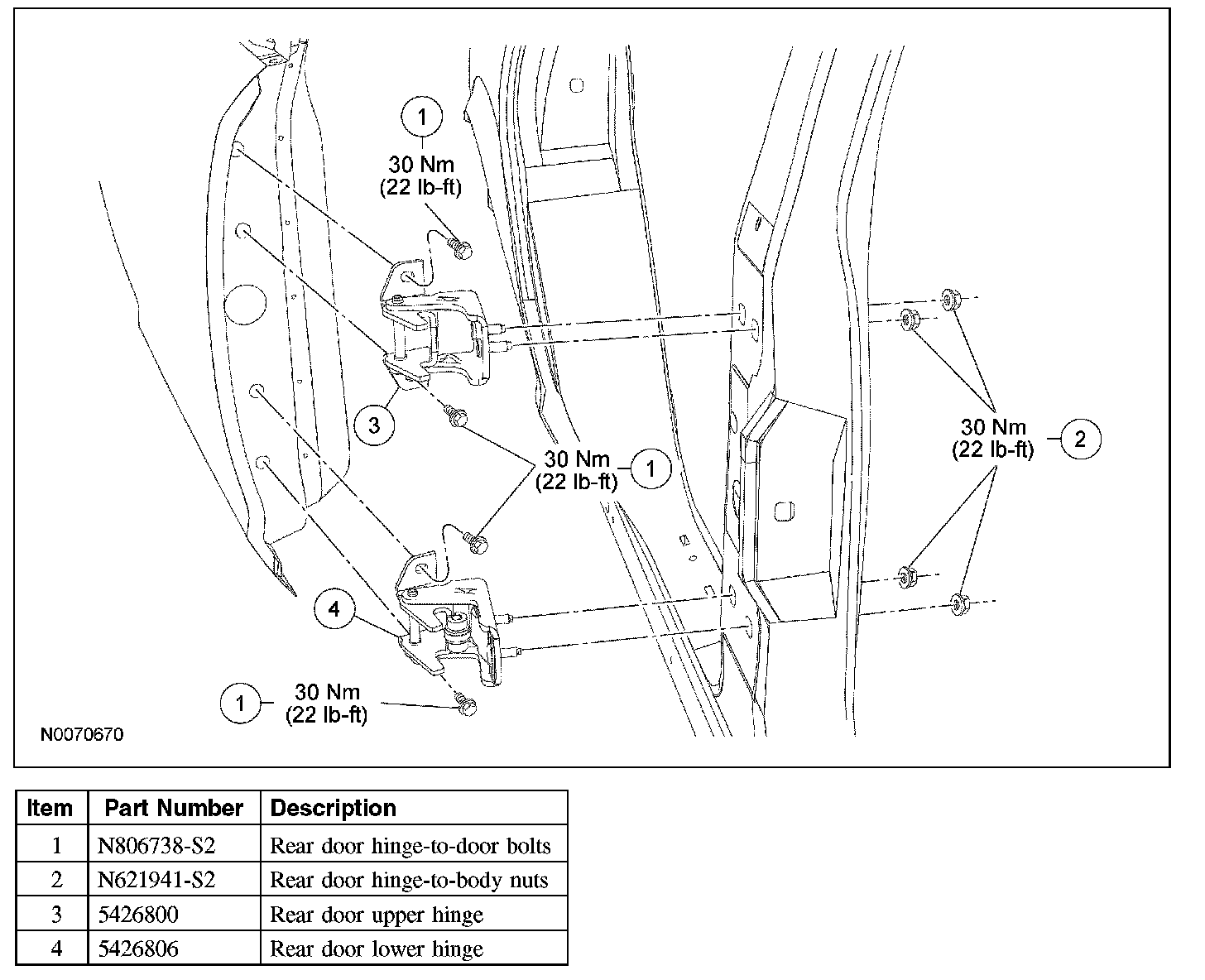

With a wax pencil, mark the position of each hinge and remove the door hinge-to-door bolts.
- To install, tighten to 30 Nm (22 lb-ft).

3. Remove the door.

4. CAUTION: To minimize the possibility of cross threading, hand start all fasteners during installation.

To install, reverse the removal procedure.
- Check for correct door alignment. For additional information, refer to Door Alignment - Rear. Adjustments
