Rear Door Latch: Service and Repair

REAR DOOR LATCH

Exploded View

Part 1:

Part 2:

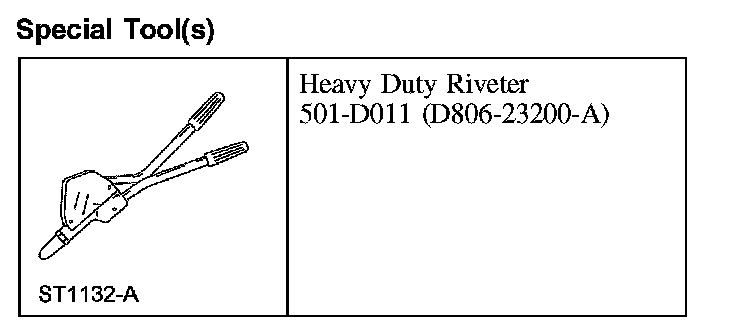

Special Tool(s)

Special Tool(s):

Removal and Installation
1. Remove the rear door trim panel.
2. Position the watershield aside.
3. Remove the 3 rivets and position the interior door handle remote control aside.
4. If equipped with the police package, remove the door lock push button rod cover.
5. Remove the door lock push button rod bellcrank rivet.
6. Disconnect the door lock push button rod from the lock rod bellcrank.
7. Release the door lock push button rod from the clip.
8. Open the clip and release the exterior door handle actuating rod.
9. Disconnect the door ajar switch electrical connectors.
10. Disconnect the door lock actuator electrical connector.
11. Remove the door lock actuator rivet.
12. Remove the 3 screws and remove the rear door latch.
- To install, tighten to 6 Nm (53 lb-in).

13. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
