Front Bumper: Service and Repair

BUMPER - FRONT

Exploded View

Part 1:

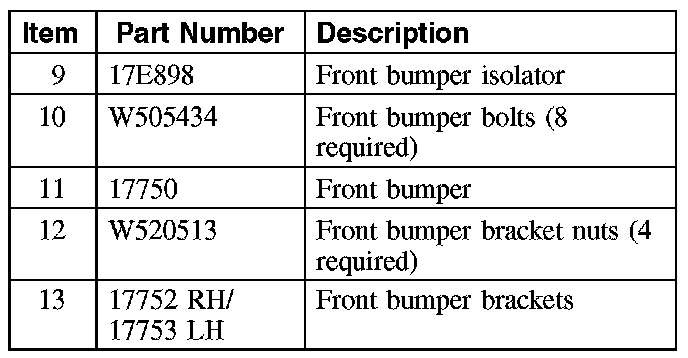

Part 2:

Removal and Installation
1. Remove the front bumper isolator.
2. Remove the 8 front bumper bolts (4 each side) and the front bumper.
- To install, tighten to 25 Nm (18 lb-ft).

3. To install, reverse the removal procedure.
