Door Sensor/Switch (For Alarm): Service and Repair

DOOR DISARM SWITCH

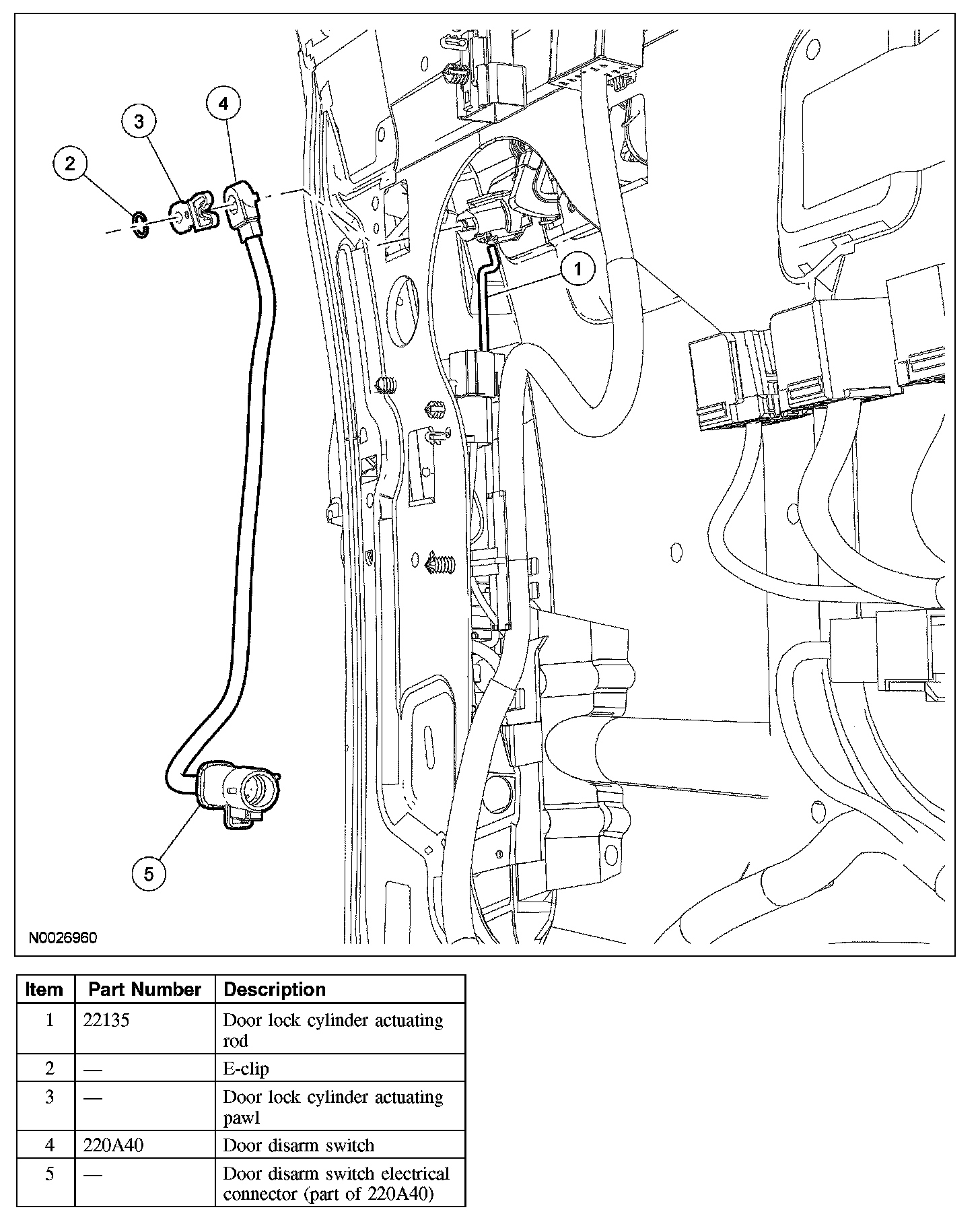

Removal and Installation
1. Remove the LH front door trim panel.
2. Position the watershield aside.
3. Disconnect the door lock cylinder actuating rod from the door lock cylinder actuating pawl.
4. Remove the E-clip.
5. Remove the door lock cylinder actuating pawl.
6. Disconnect the electrical connector and remove the door disarm switch.
7. To install, reverse the removal procedure.

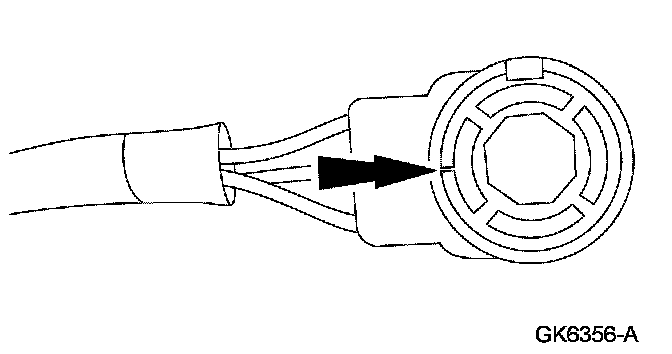

- The door disarm switch mark must be positioned toward the harness side of the switch prior to installation.
