Alarm System Transmitter: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER







Removal and Installation

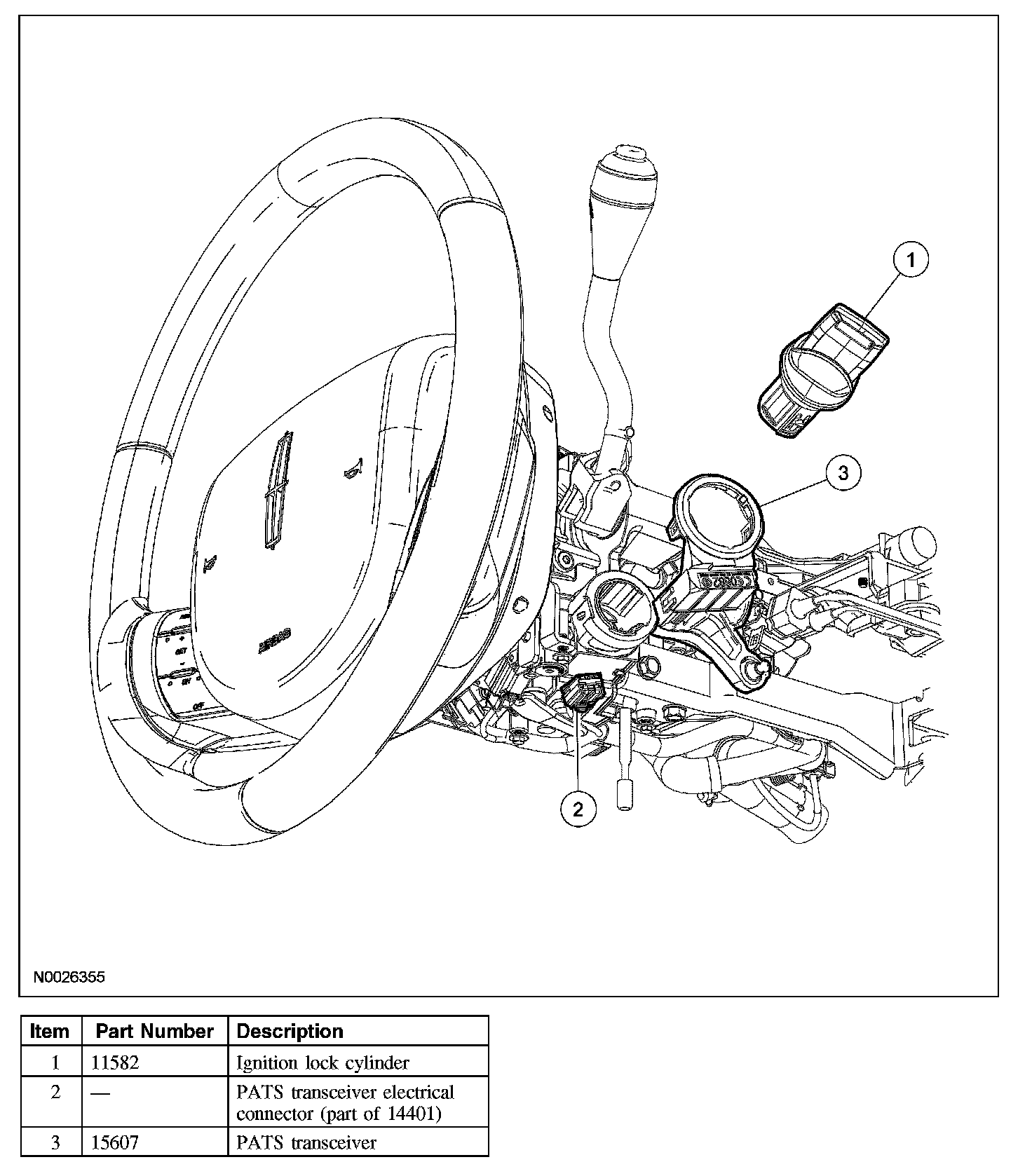

1. Remove the ignition lock cylinder.

2. NOTE: If necessary, use a suitable tool to gently pry the 2 locking tabs outward far enough to release the transceiver from the steering column.

Disconnect the electrical connector and remove the PATS transceiver.

3. NOTE: Replacement of the PATS transceiver does not require the PATS keys to be programmed into the PCM again.

To install, reverse the removal procedure.
