ANTENNA LEAD-IN CABLE







Removal and Installation
1. Remove the audio unit.

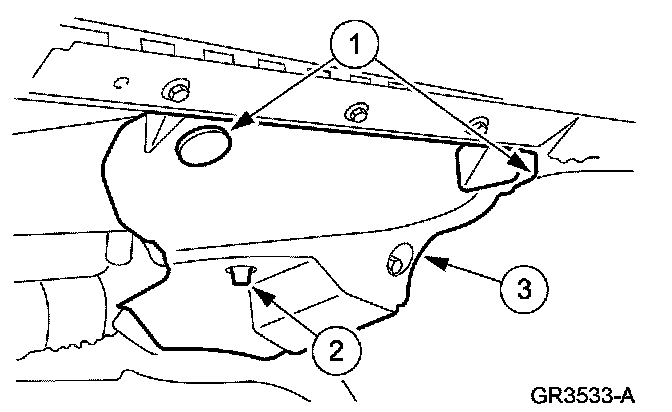

2. Remove the RH lower instrument panel insulator.
1 Remove the pin-type retainers.
2 Release the locking tab.
3 Remove the insulator.
- Disconnect the courtesy lamp.







3. Disconnect the antenna lead-in cable.

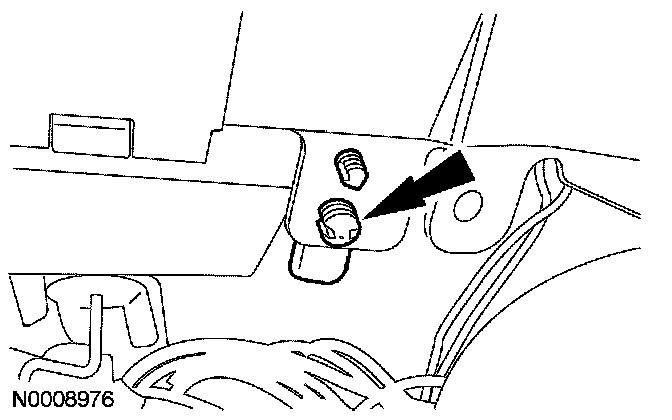

4. Disengage the antenna lead-in cable pin-type locator retainer.

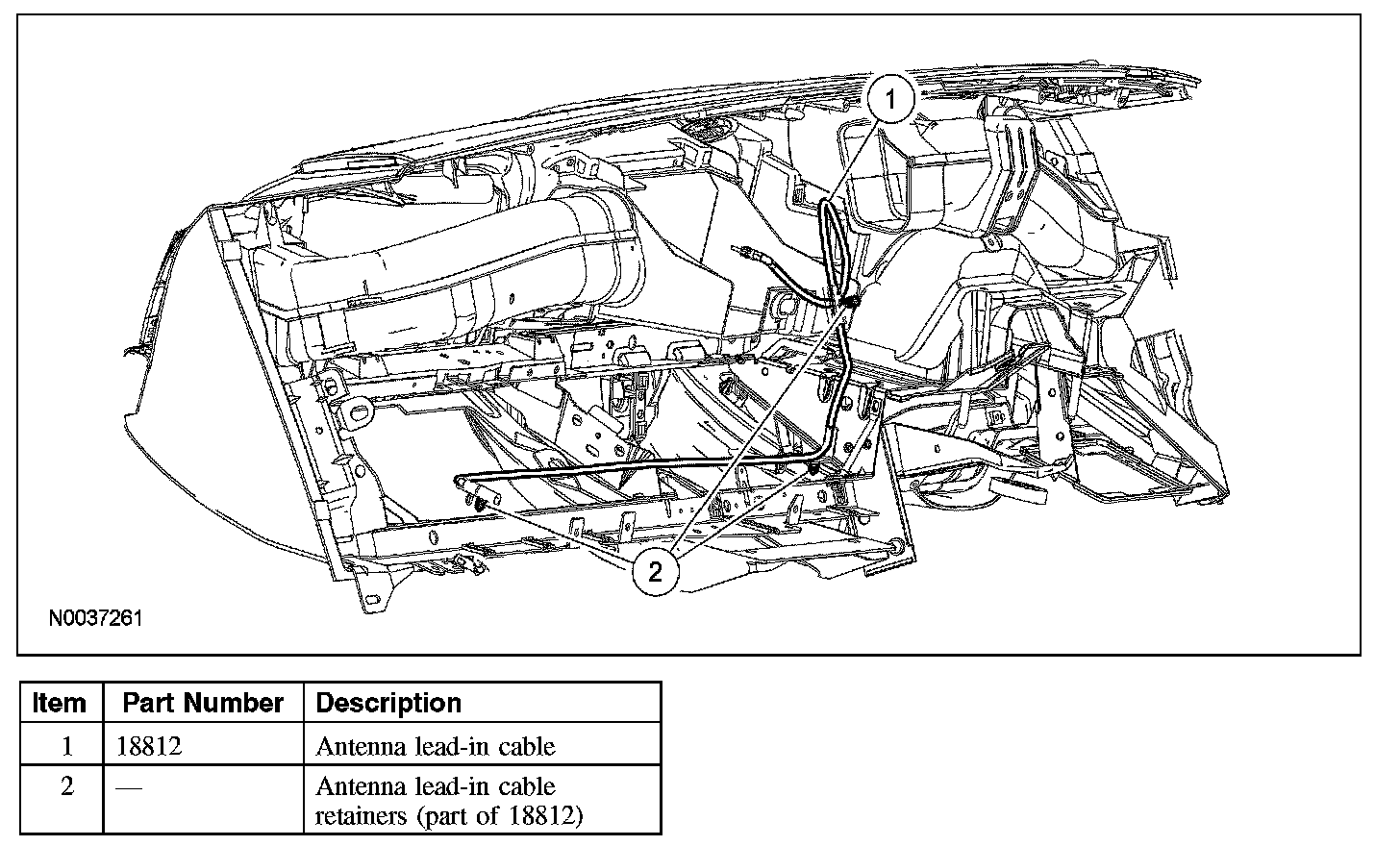

5. Remove the 3 retainers and the antenna lead-in cable.
6. To install, reverse the removal procedure.
