Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

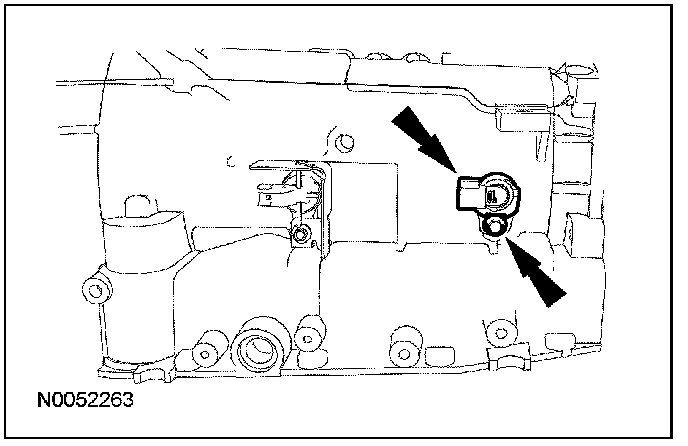

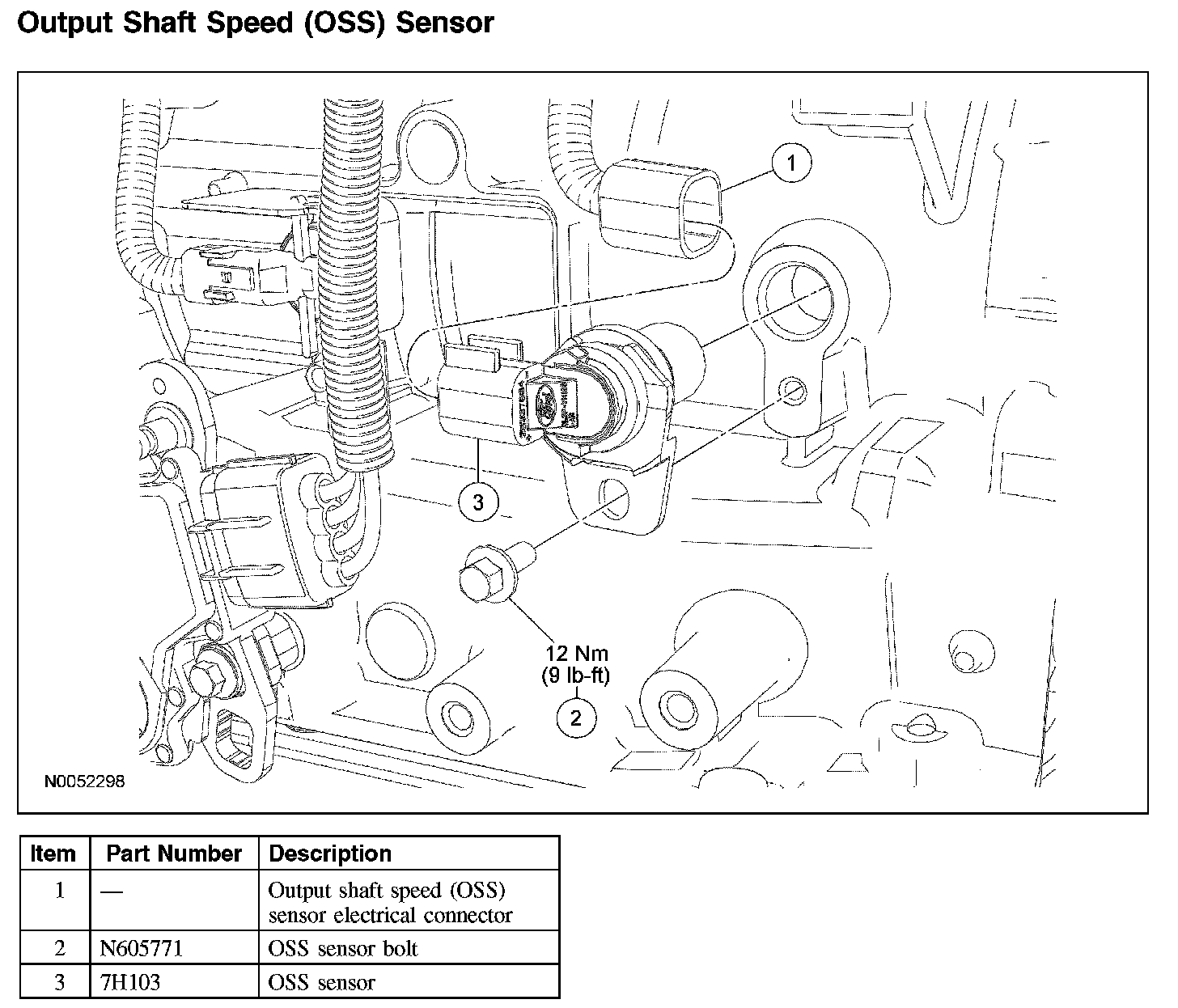

Output Shaft Speed (OSS) Sensor:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the output shaft speed (OSS) sensor electrical connector.
3. Remove the OSS sensor bolt and the sensor.
^ To install, tighten to 12 Nm (9 lb-ft).





4. To install, reverse the removal procedure.
