Power Steering Pump Pulley

Power Steering Pump Pulley








Removal and Installation

CAUTION: Do not install a power steering pump pulley that has been removed and installed twice or pulley failure and/or pump damage may occur. Inspect the pulley for paint marks in the web area near the hub. If there are 2 paint marks, discard the pulley and install a new one. If there is one paint mark or no paint marks, use a paint pencil to mark the web area of the pulley near the hub.

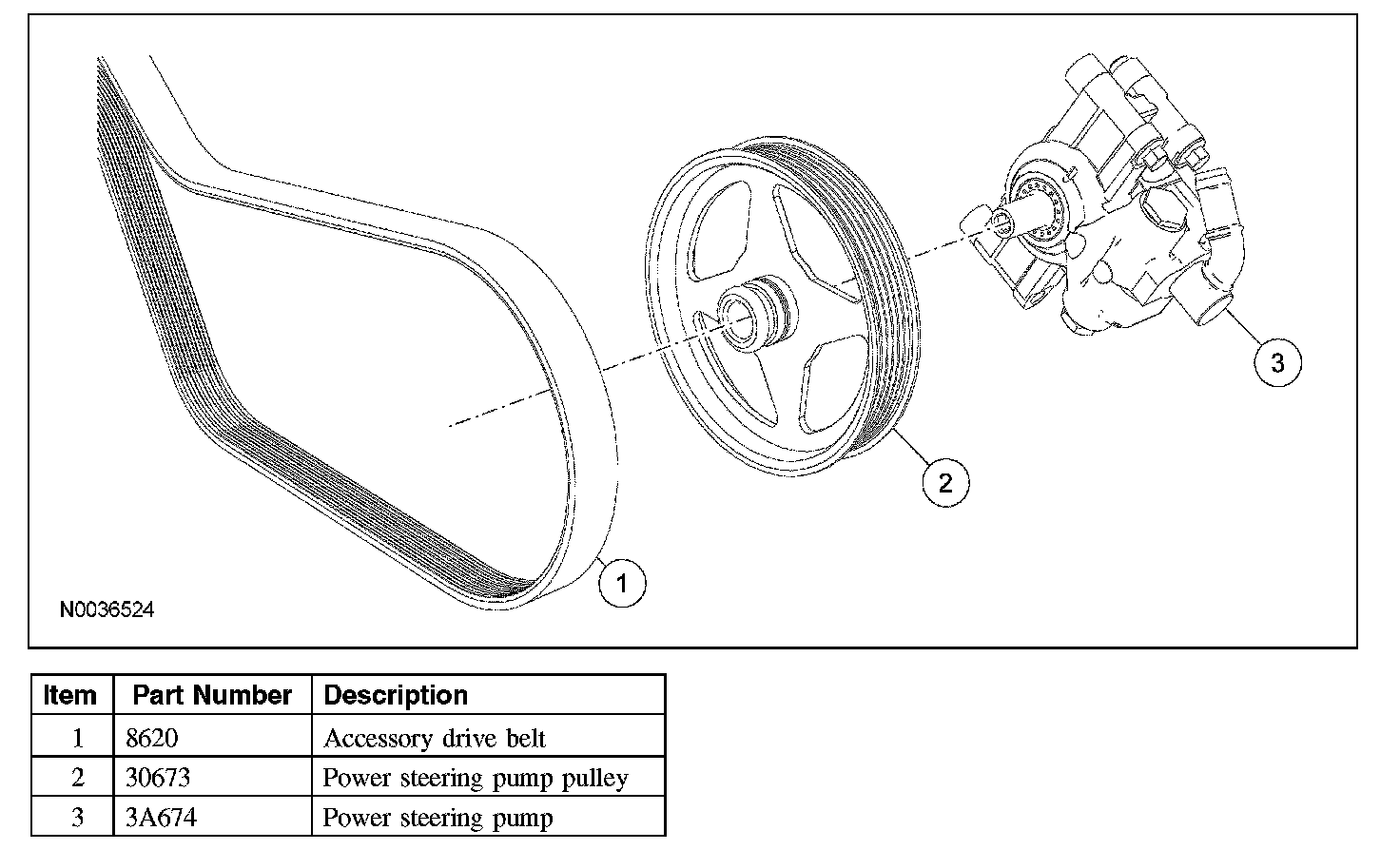

1. Remove the accessory drive belt from the power steering pump pulley.

2. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist.

3. CAUTION: Do not apply pressure on the power steering pump rotor shaft. Pressure may damage the internal thrust areas of the power steering pump.

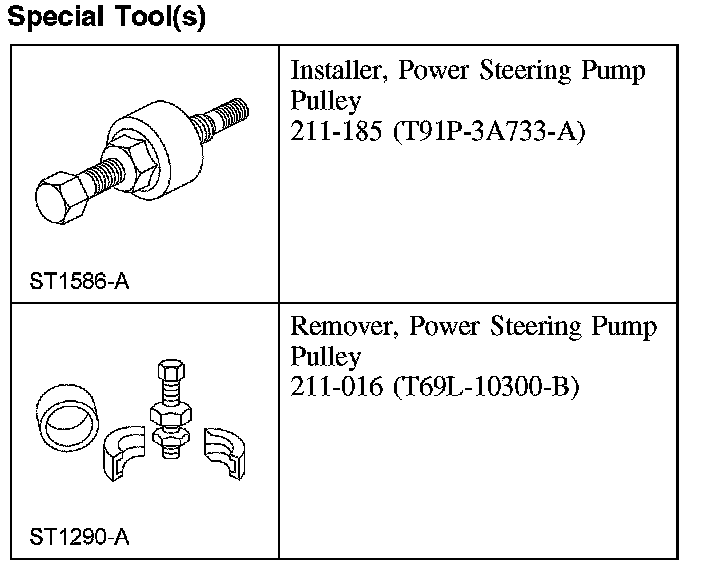

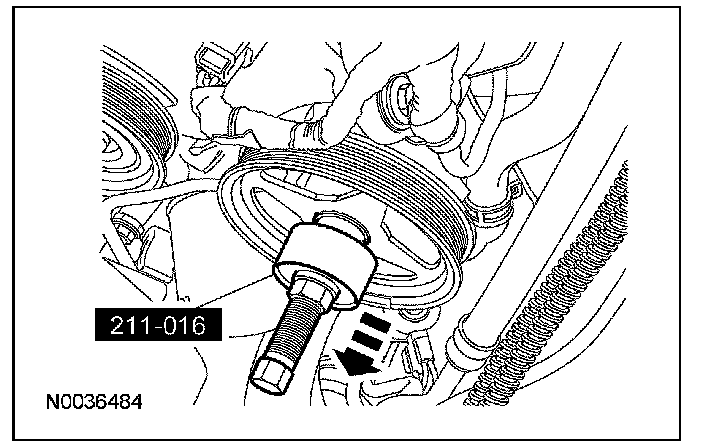

Using the special tool, remove the pulley.





4. To install, reverse the removal procedure.

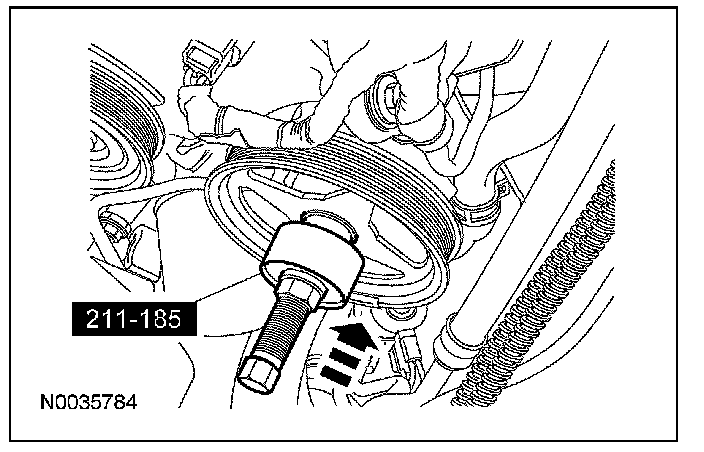

^ Use the special tool to install the pulley.





5. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

If equipped with a fire suppression system, repower the system.
