Driver/Vehicle Information Display: Service and Repair

MESSAGE CENTER SWITCH







Removal and Installation

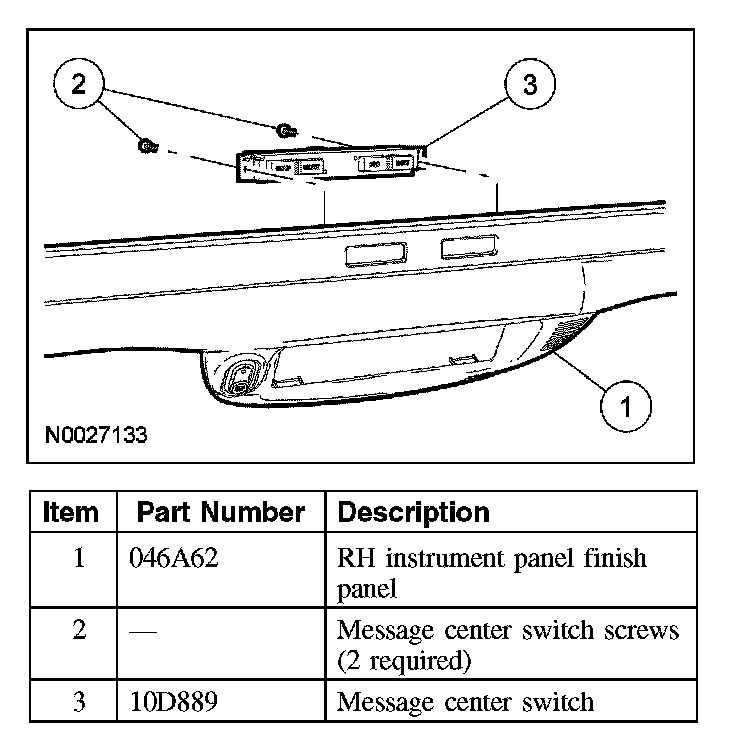

1. NOTE: The RH instrument panel finish panel is held in place with spring clips located on the RH instrument panel finish panel.

Remove the RH instrument panel finish panel.
- Disconnect the electrical connectors.

2. Remove the 2 screws and the message center switch.
3. To install, reverse the removal procedure.
