Compass Zone Adjustment

COMPASS ZONE ADJUSTMENT

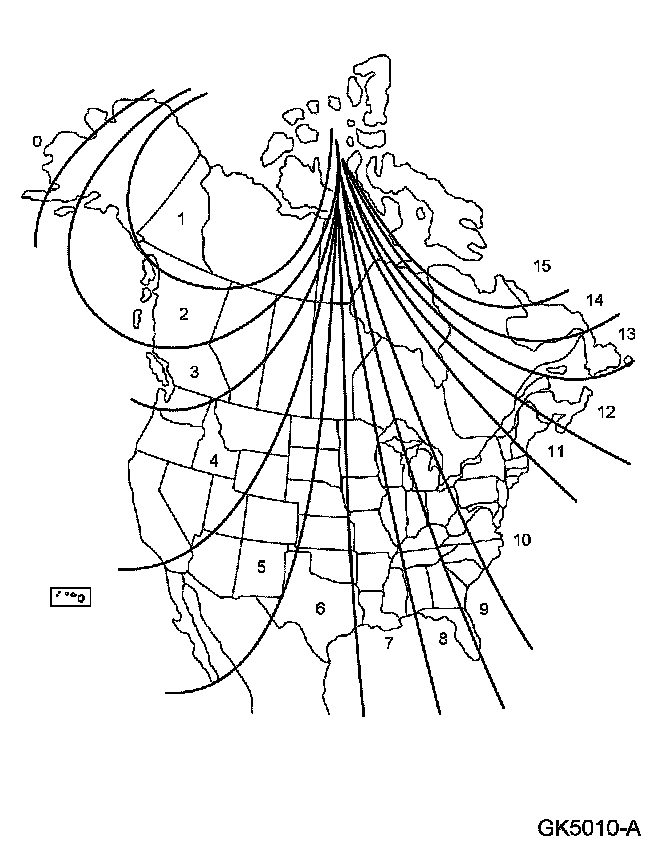

1. Refer to the compass calibration zone map to select the correct compass zone setting for the geographic location of the vehicle. Compass Calibration







2. With the key in the ON position, press and hold the MODE button for approximately 5 seconds until VAR appears on the display. Release the MODE button.

3. NOTE: After approximately 5 seconds, the compass display will exit the VAR mode after the MODE button has been released.

Within 5 seconds of releasing the MODE button, momentarily press and release the MODE button to increase the zone increment by one. Set the zone display number to match the vehicle geographical location on the compass calibration zone map.

4. Release the MODE button for 5 seconds to exit the zone setting mode.
