Brake Fluid Reservoir

Brake Fluid Reservoir











Removal and Installation

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

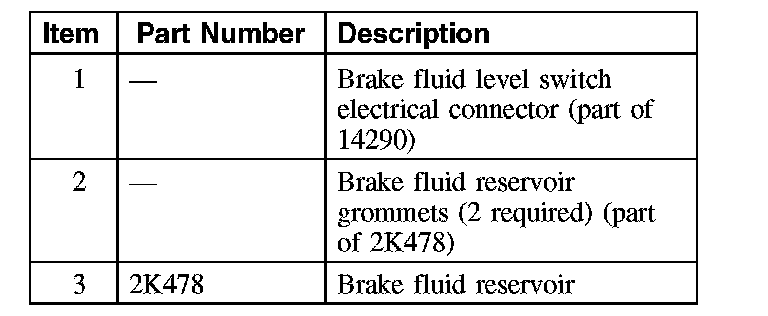

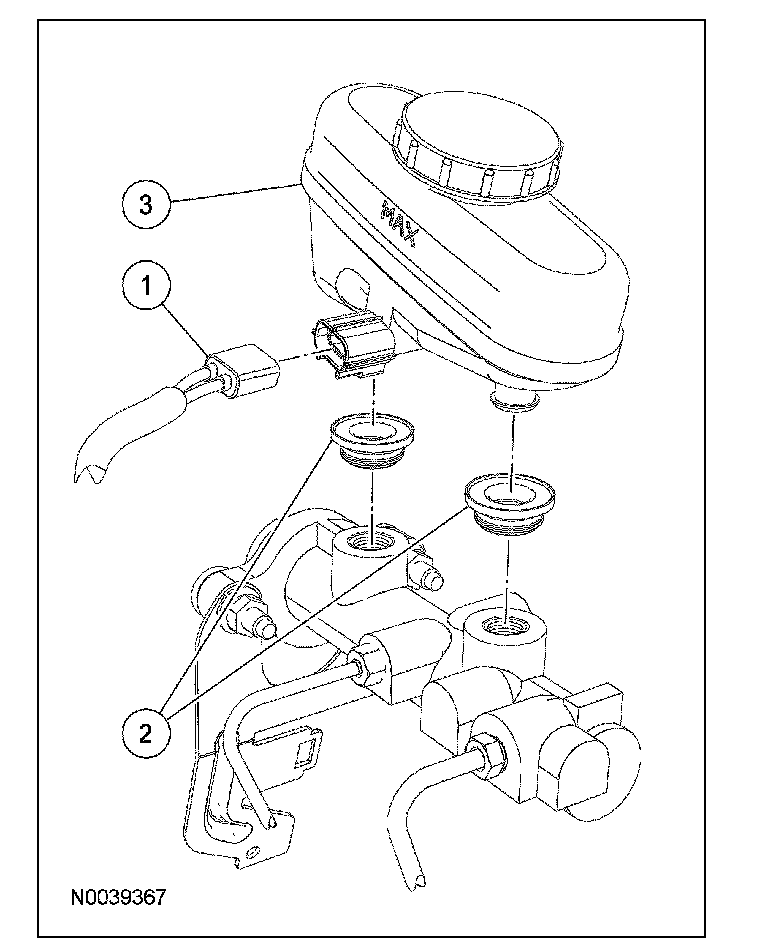

1. Disconnect the brake fluid level switch electrical connector.
2. Use a suitable suction device to drain the brake master cylinder reservoir.
3. Pull upward on the brake master cylinder reservoir to remove.

4. NOTE: Whenever installing a brake master cylinder reservoir, install new grommets.

Remove the 2 brake fluid reservoir grommets.
^ To install, lubricate the 2 grommets with DOT 3 brake fluid.
5. To install, reverse the removal procedure.
^ Press the brake master cylinder reservoir into the grommets until it is fully seated.
