Inspection and Verification

INSPECTION AND VERIFICATION

1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical or electrical damage.

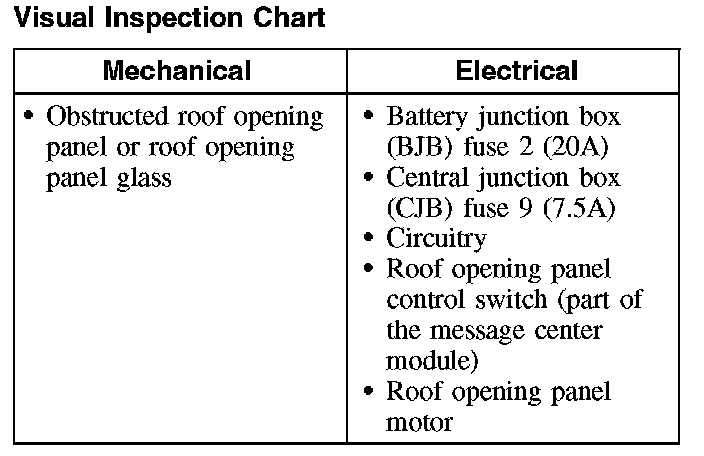

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, GO to Symptom Chart - Roof Opening Panel or GO to Symptom Chart - Noise, Vibration and Harshness (NVH). Symptom Chart - Roof Opening Panel Symptom Chart - Noise, Vibration and Harshness (NVH)
