Console - Overhead

CONSOLE - OVERHEAD







Removal and Installation

WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

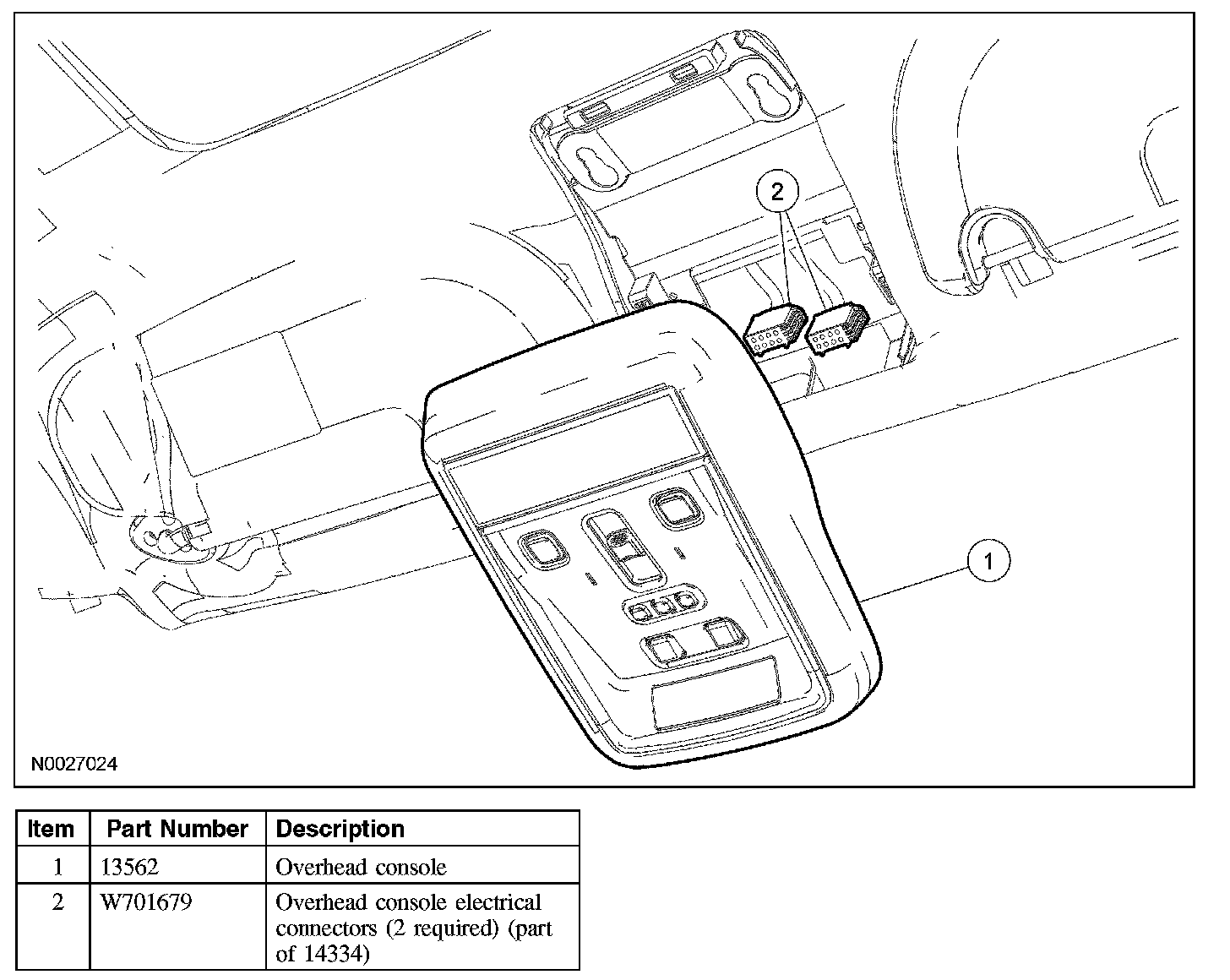

1. CAUTION: The overhead console bracket is supported by the headliner. Failure to follow the removal procedure will damage the headliner.

Support the headliner at the rear corner of the overhead console and pull down on that corner to remove the overhead console.
- Disconnect the 2 electrical connectors.

2. To install, reverse the removal procedure.
