Hood Latch: Service and Repair

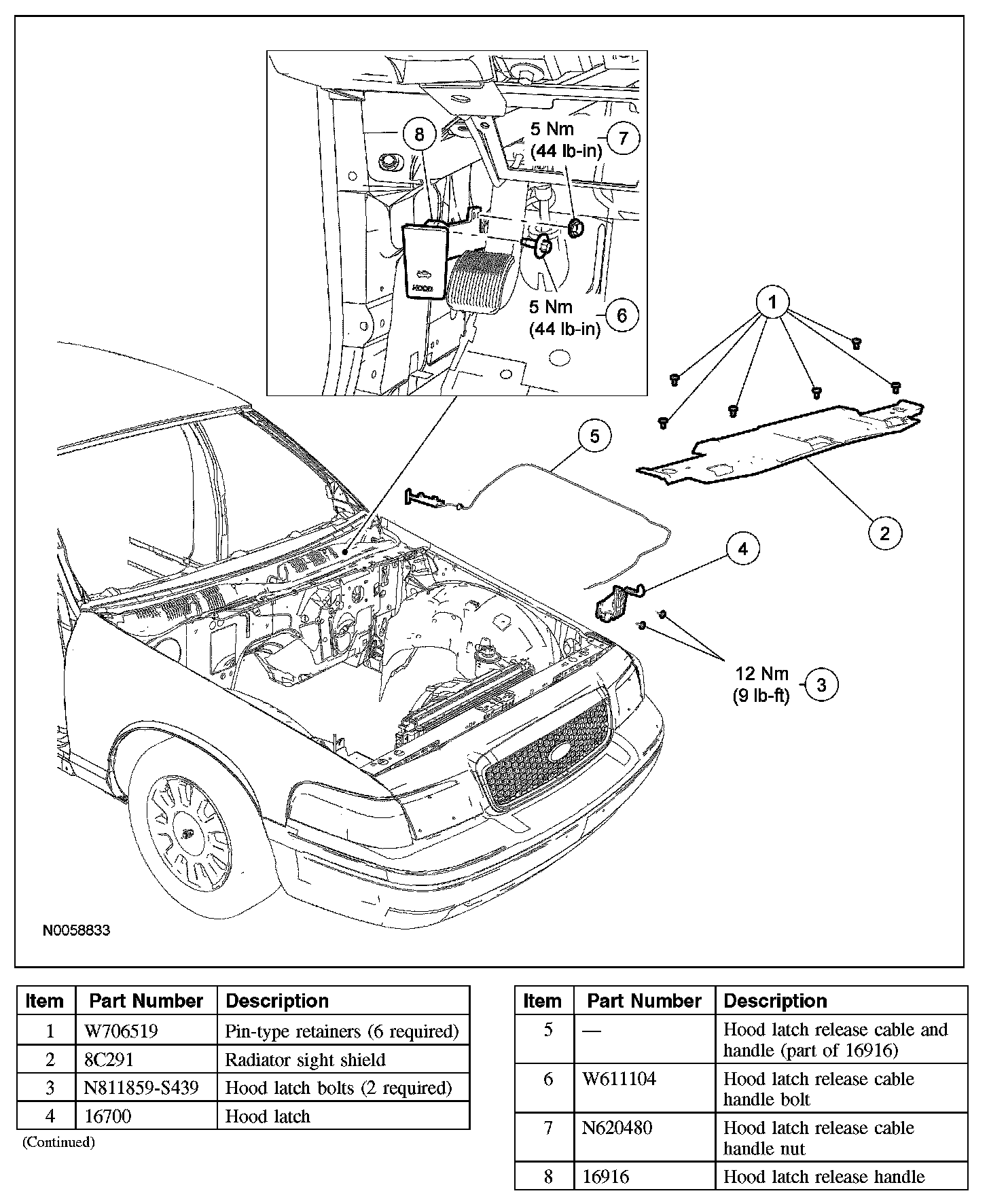

HOOD LATCHExploded View
Removal and Installation
1. Remove the 6 pin-type retainers and the radiator sight shield.
2. NOTE: Mark the position of the hood latch prior to removal of the bolts.
Remove the 2 hood latch bolts.
- To install, tighten to 12 Nm (9 lb-ft).
3. Disconnect the cable and remove the hood latch.
4. To install, reverse the removal procedure.
- Check the hood latch adjustment to make sure the hood striker engages the hood latch correctly.
