Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT

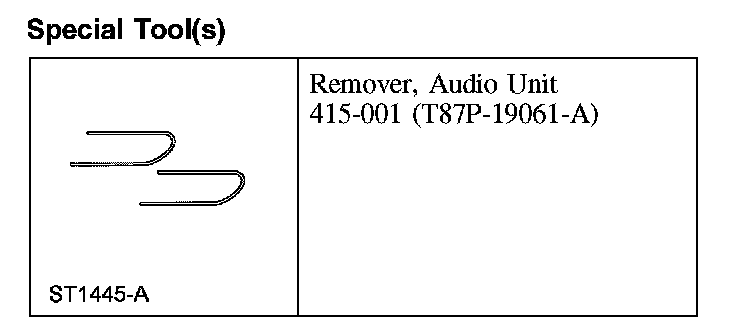

Special Tool(s)

Special Tool(s):

Removal and Installation

NOTE: It is not necessary to remove the audio unit to retrieve the part number.

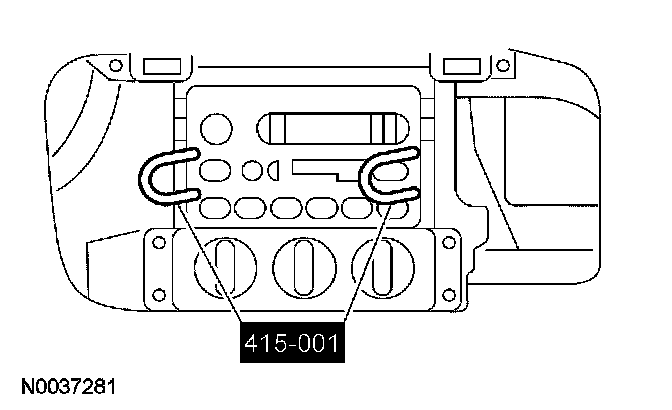

1. Using the special tool, remove the audio unit.
- Disconnect the connectors and the antenna lead-in cable.







2. To install, reverse the removal procedure.
