Wiper Motor - Windshield

WIPER MOTOR - WINDSHIELD

Removal and Installation
1. Remove the wiper mounting arm and pivot shaft assembly.

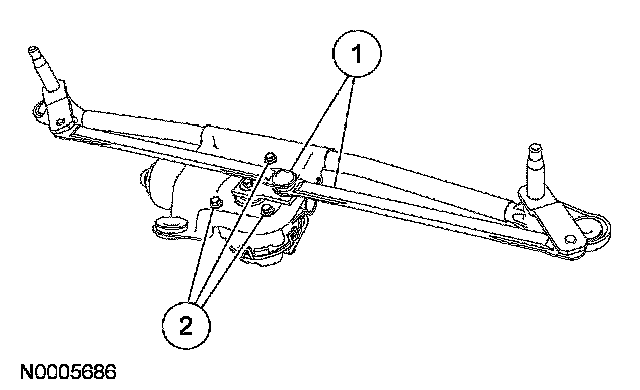

2. Remove the windshield motor.
1 Disconnect the wiper pivot arm linkage.
2 Remove the 3 bolts.
- To install, tighten to 18 Nm (13 lb-ft).

3. To install, reverse the removal procedure.
