Test I: The Wash and Wipe Function is Inoperative - Rear

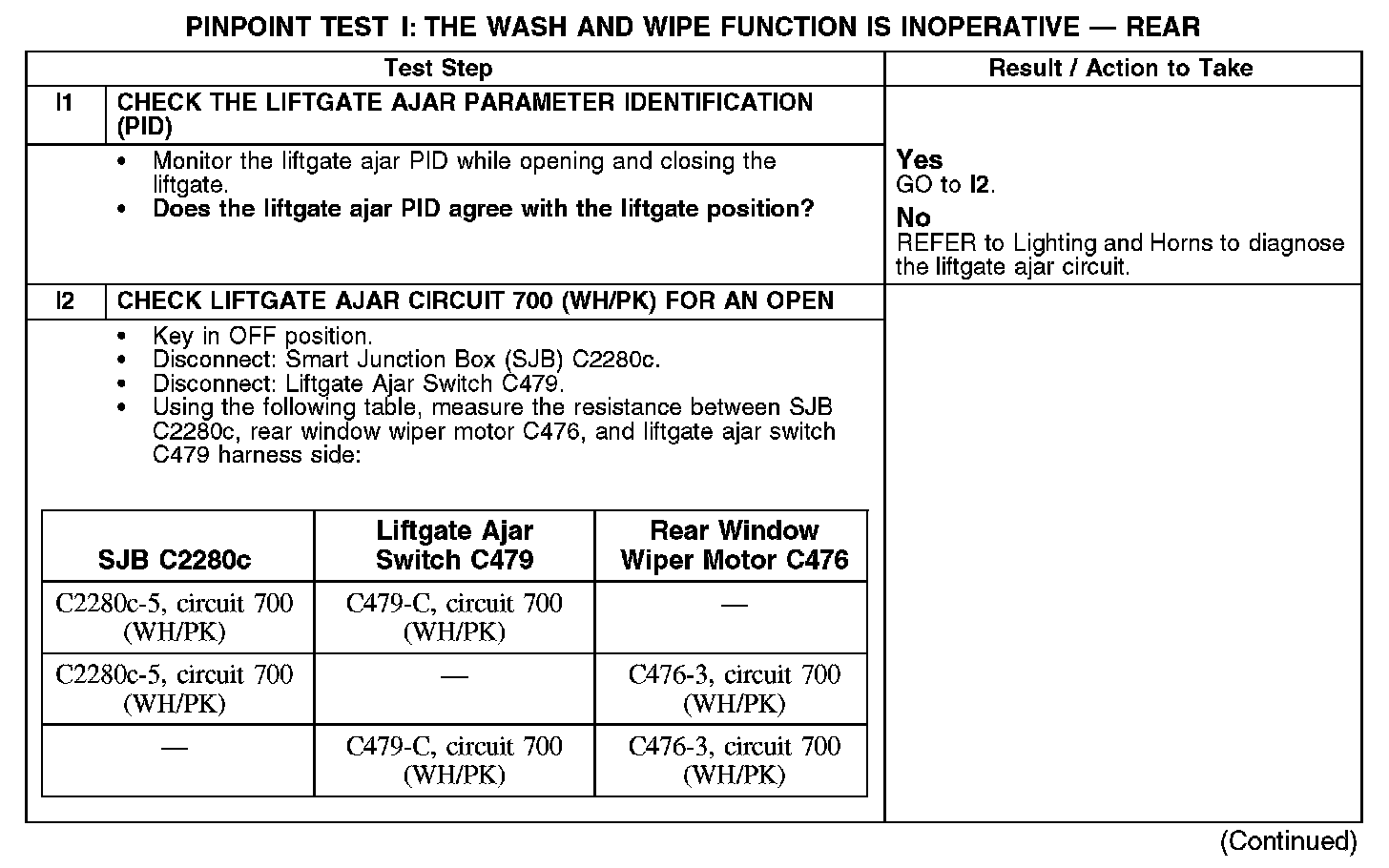

PINPOINT TEST I: THE WASH AND WIPE FUNCTION IS INOPERATIVE - REARI1-I2:

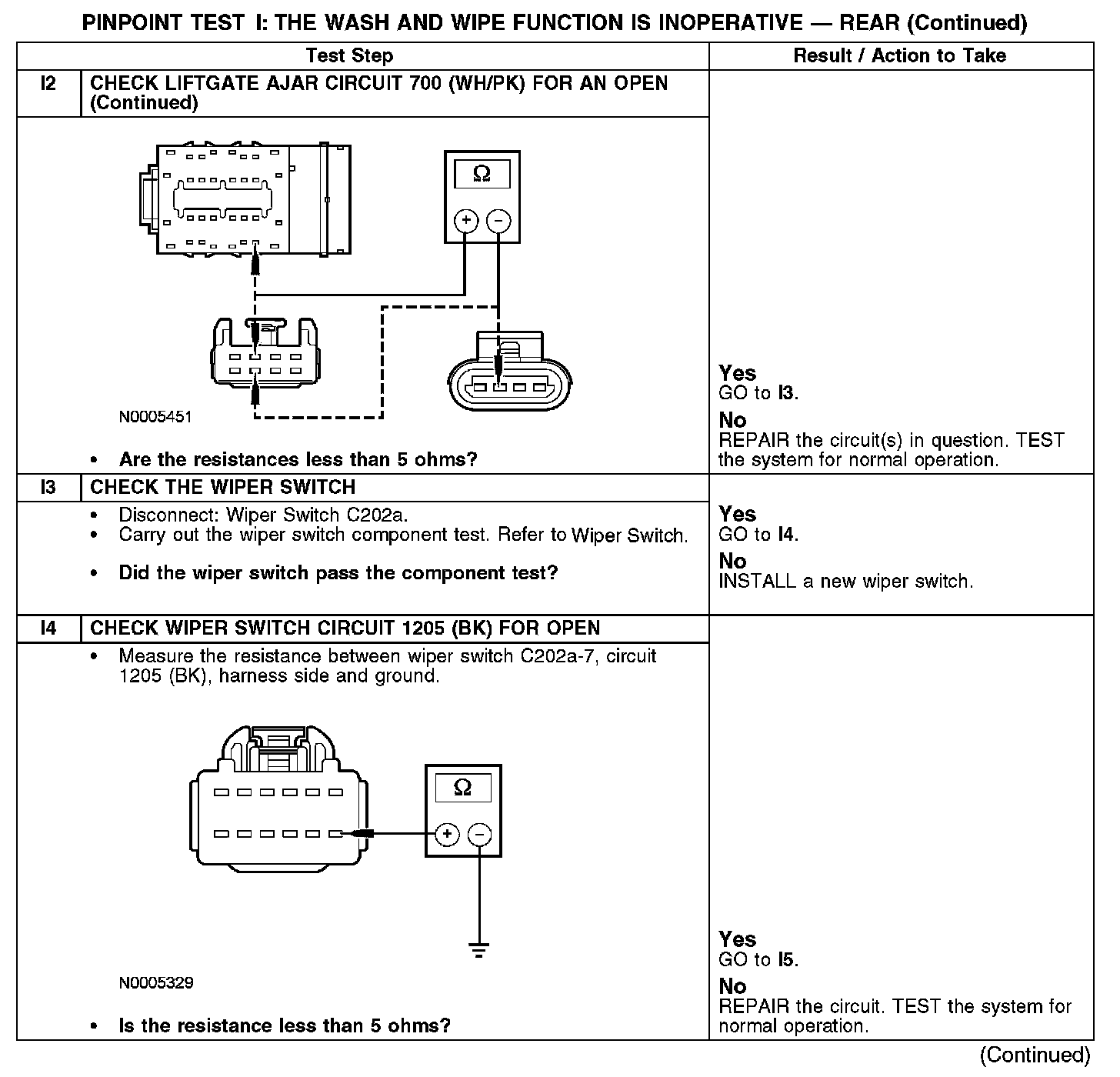

I2-I4:

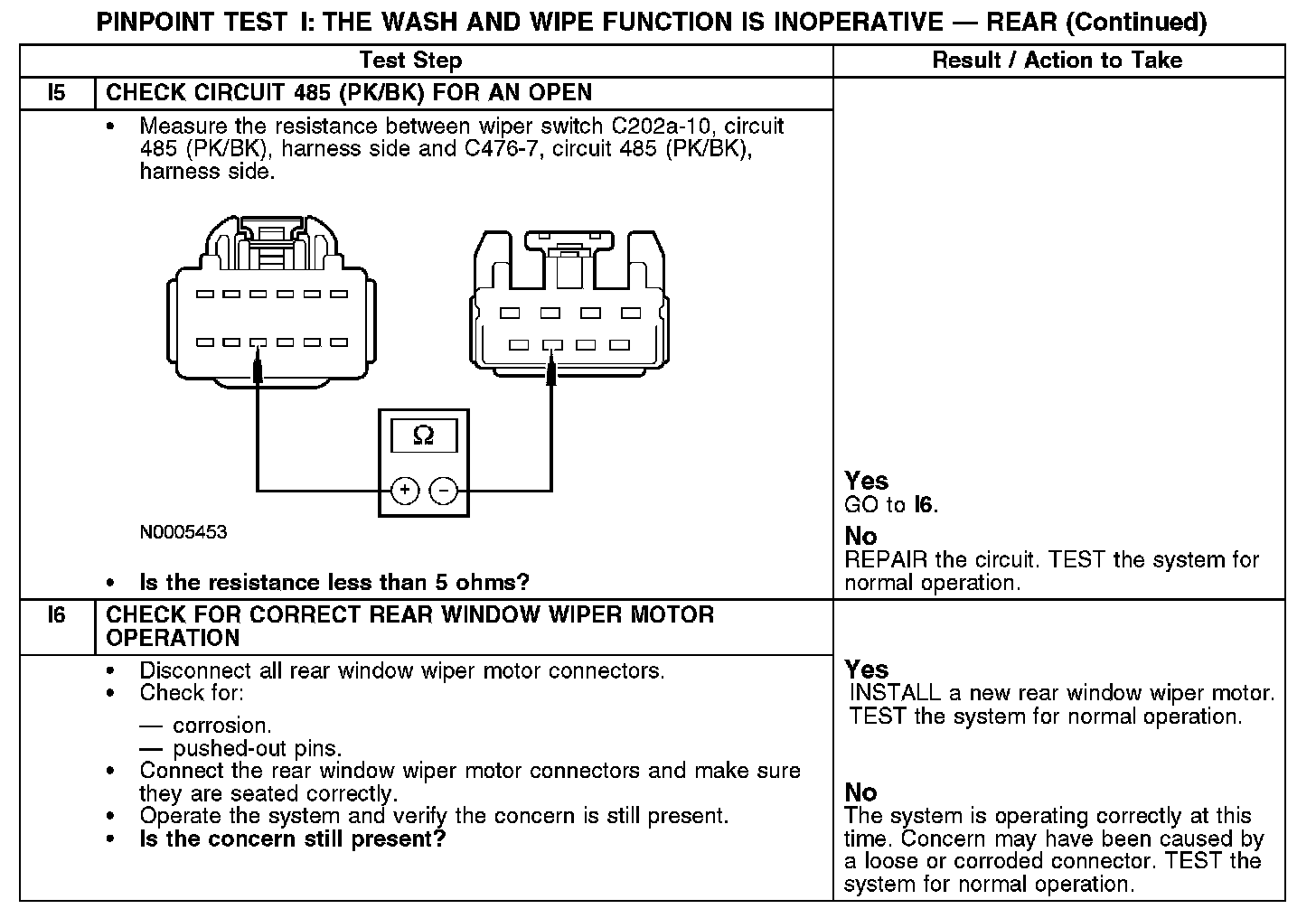

I5-I6:
Normal Operation
The wiper switch receives ground through 1205 (BK). The rear wiper motor receives ground from the wiper switch through circuit 485 (PK/BK) to operate the rear wiper wash and wipe function. The rear window wiper motor has a safety override which stops the rear wiper motor if it is operating when the liftgate is opened. The rear wiper motor monitors the position of the liftgate through circuit 700 (WH/PK), which is normally connected to ground through the liftgate ajar switch when the liftgate is closed. When the liftgate is opened, ground is disconnected from circuit 700 (WH/PK) by the liftgate ajar switch, and the rear window wiper motor stops until the liftgate is closed.
Possible Causes
- Open in circuits 485 (PK/BK) or 1205 (BK)
- Inoperative wiper switch
