Test A: The Wipers Are Inoperative

PINPOINT TEST A: THE WIPERS ARE INOPERATIVE

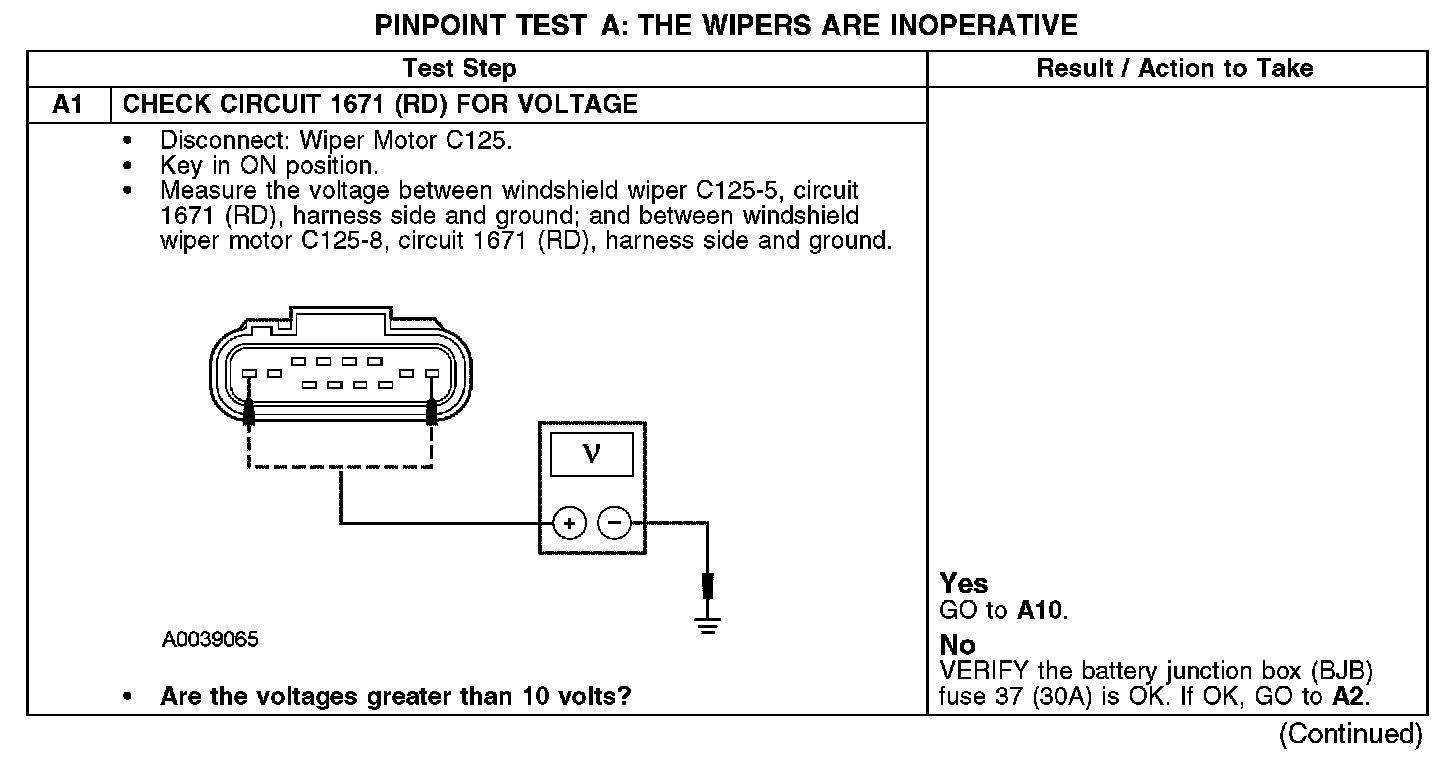

A1:

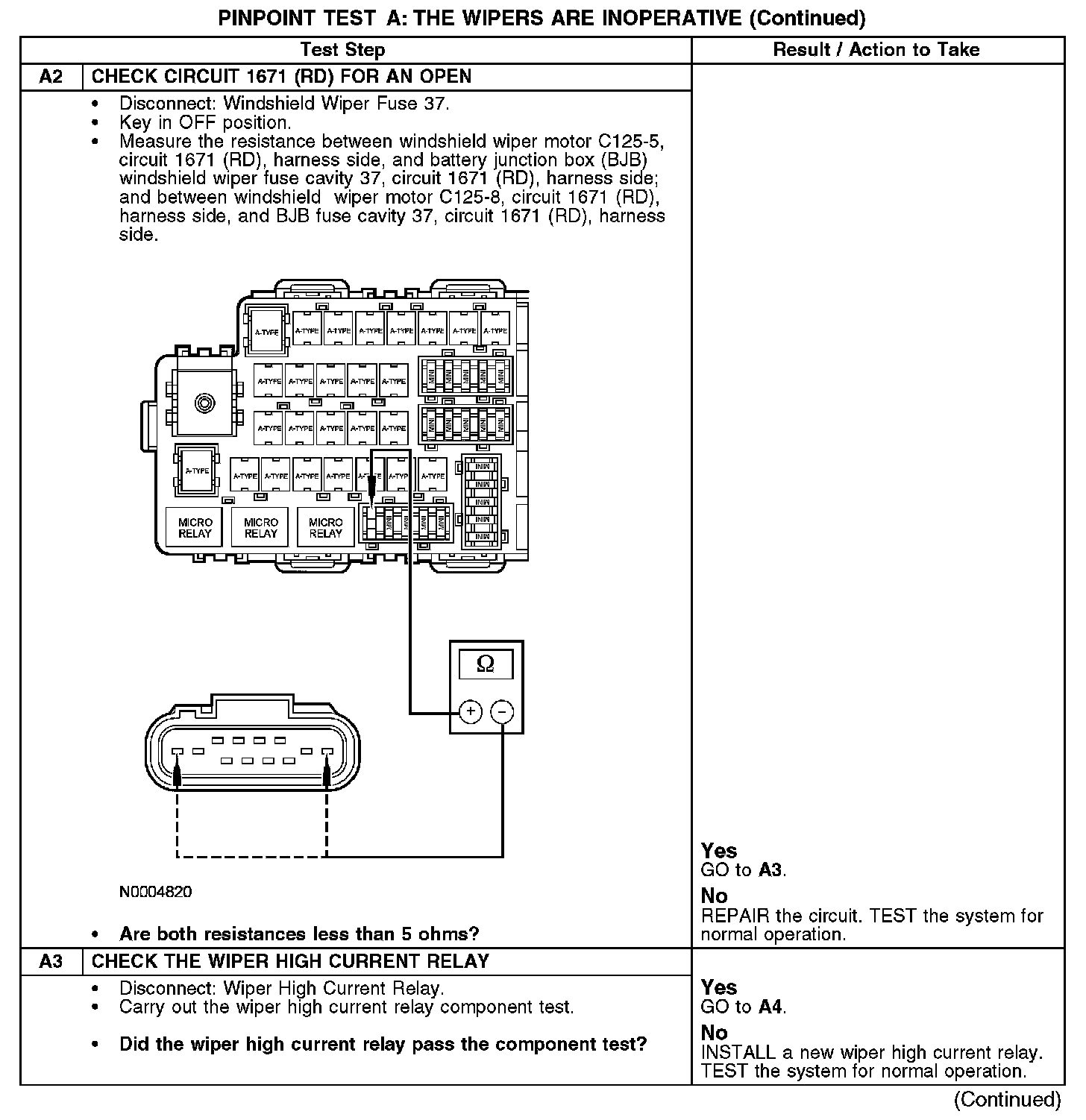

A2-A3:

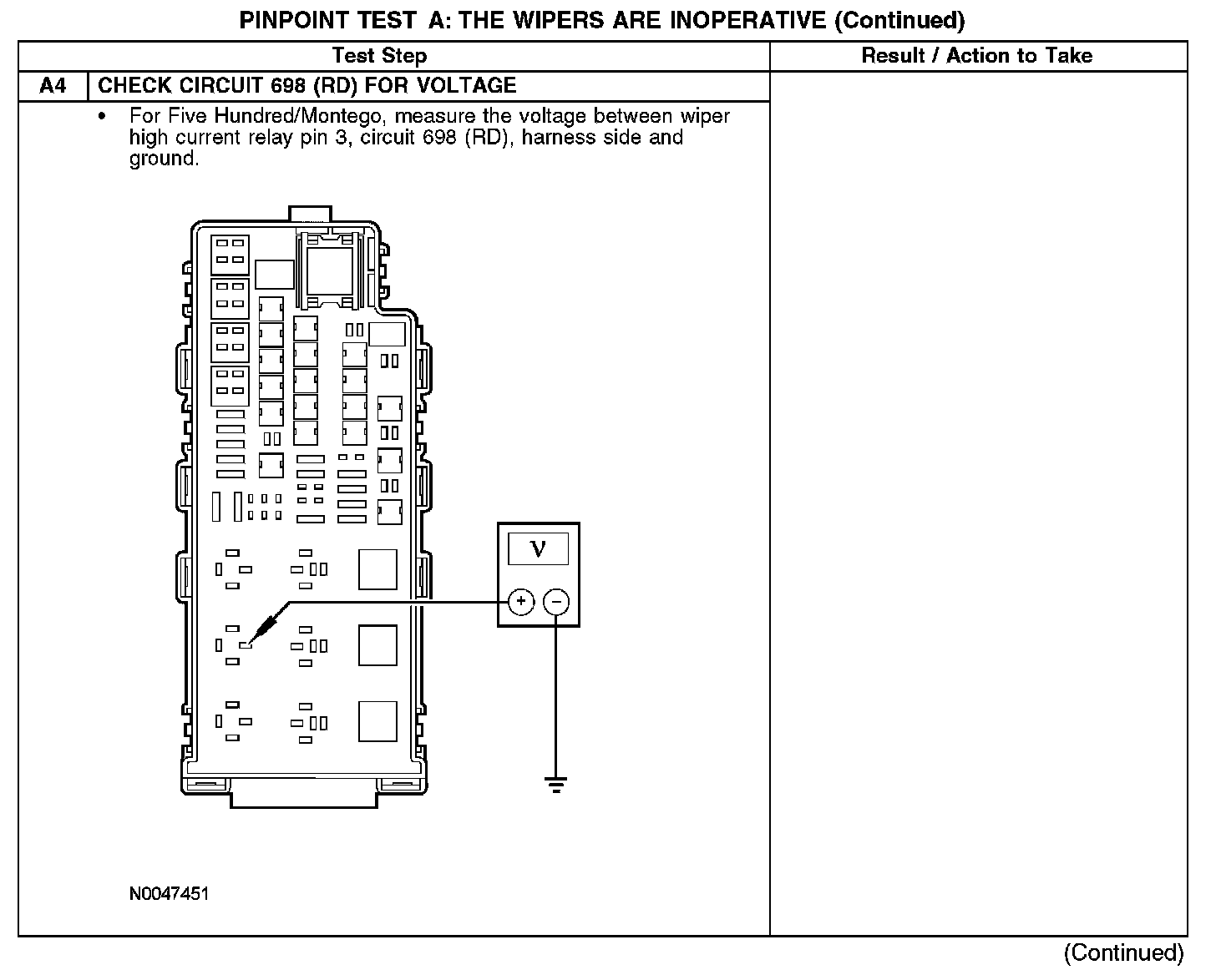

A4:

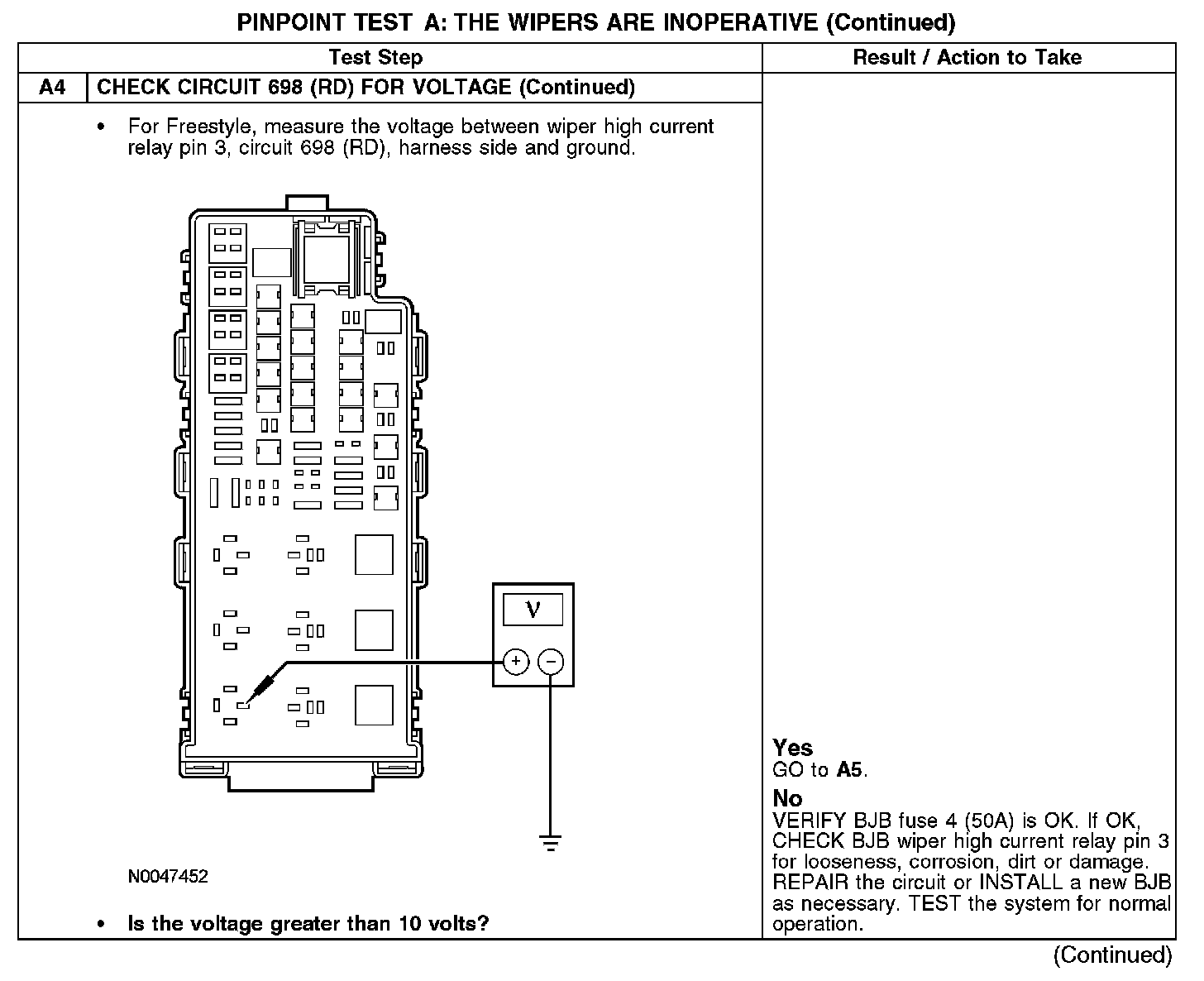

A4 Continued:

A5:

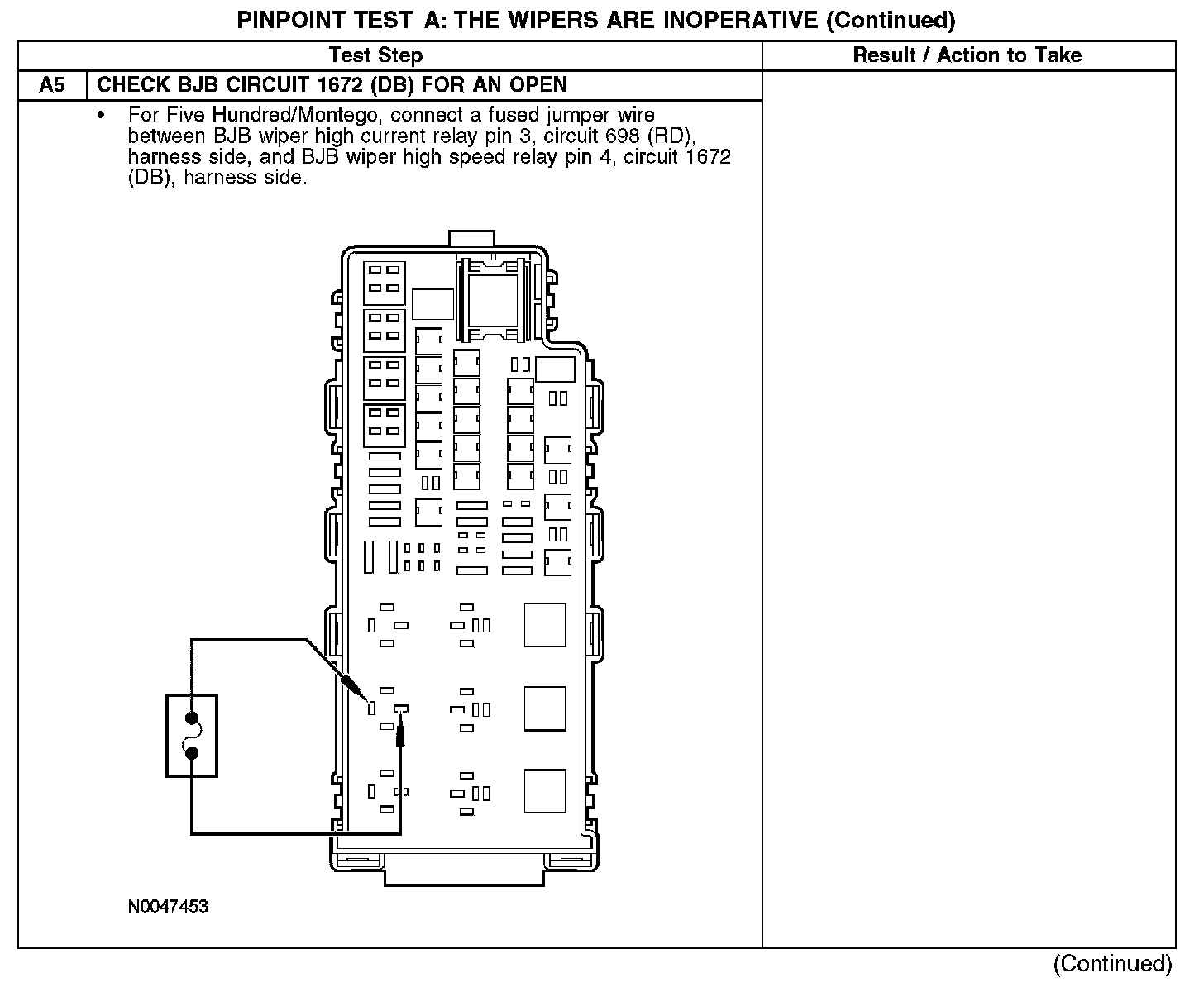

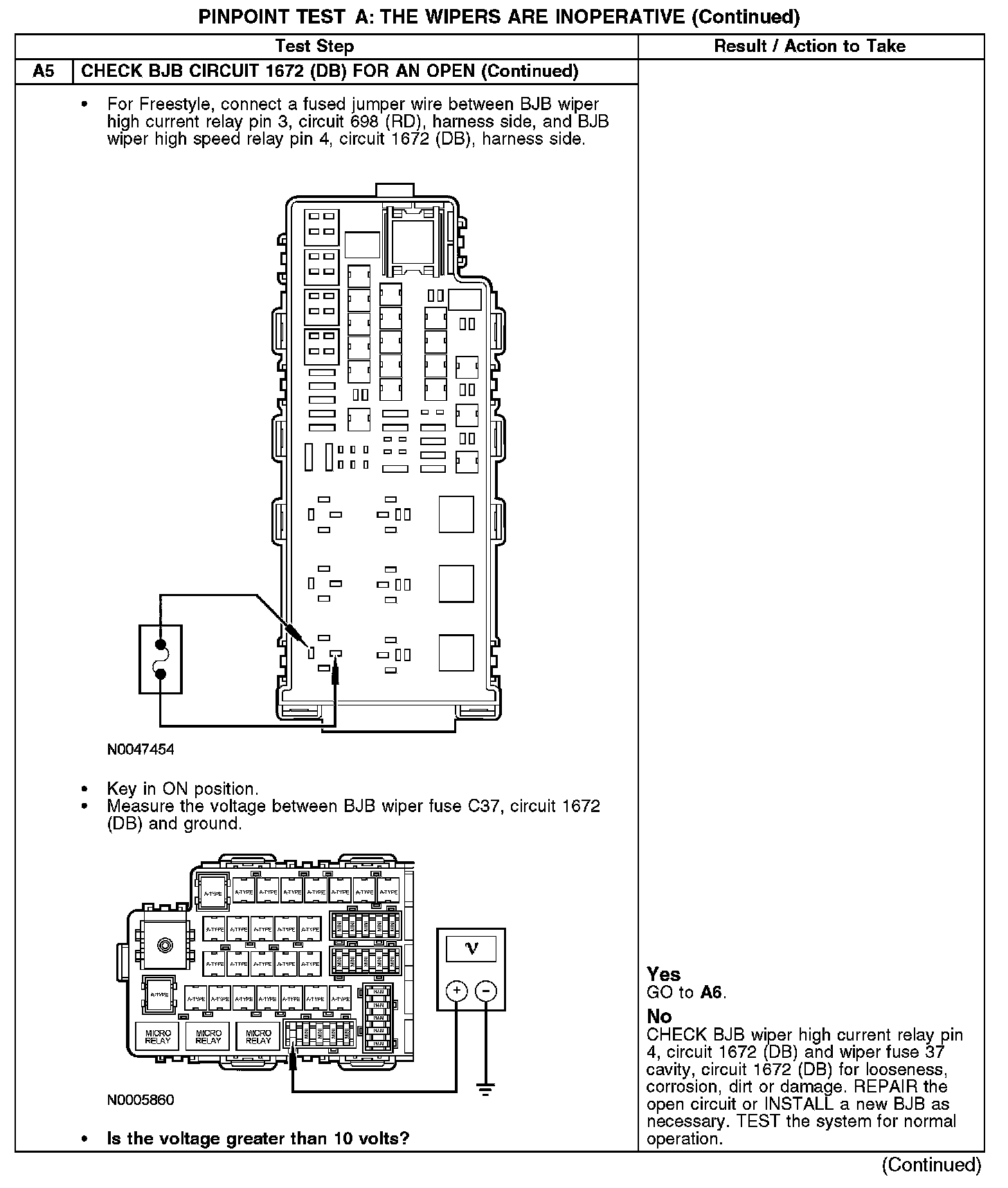

A5 Continued:

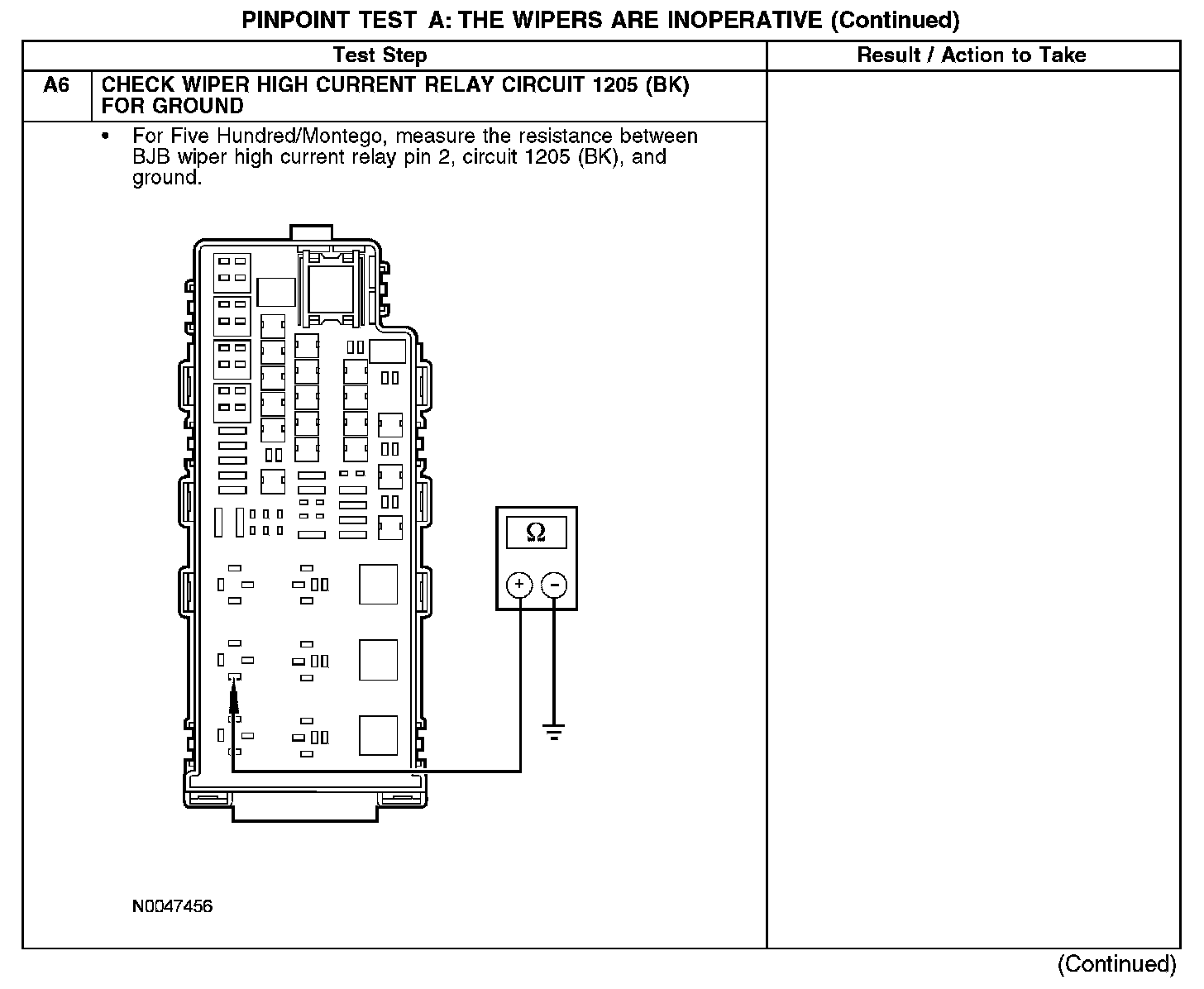

A6:

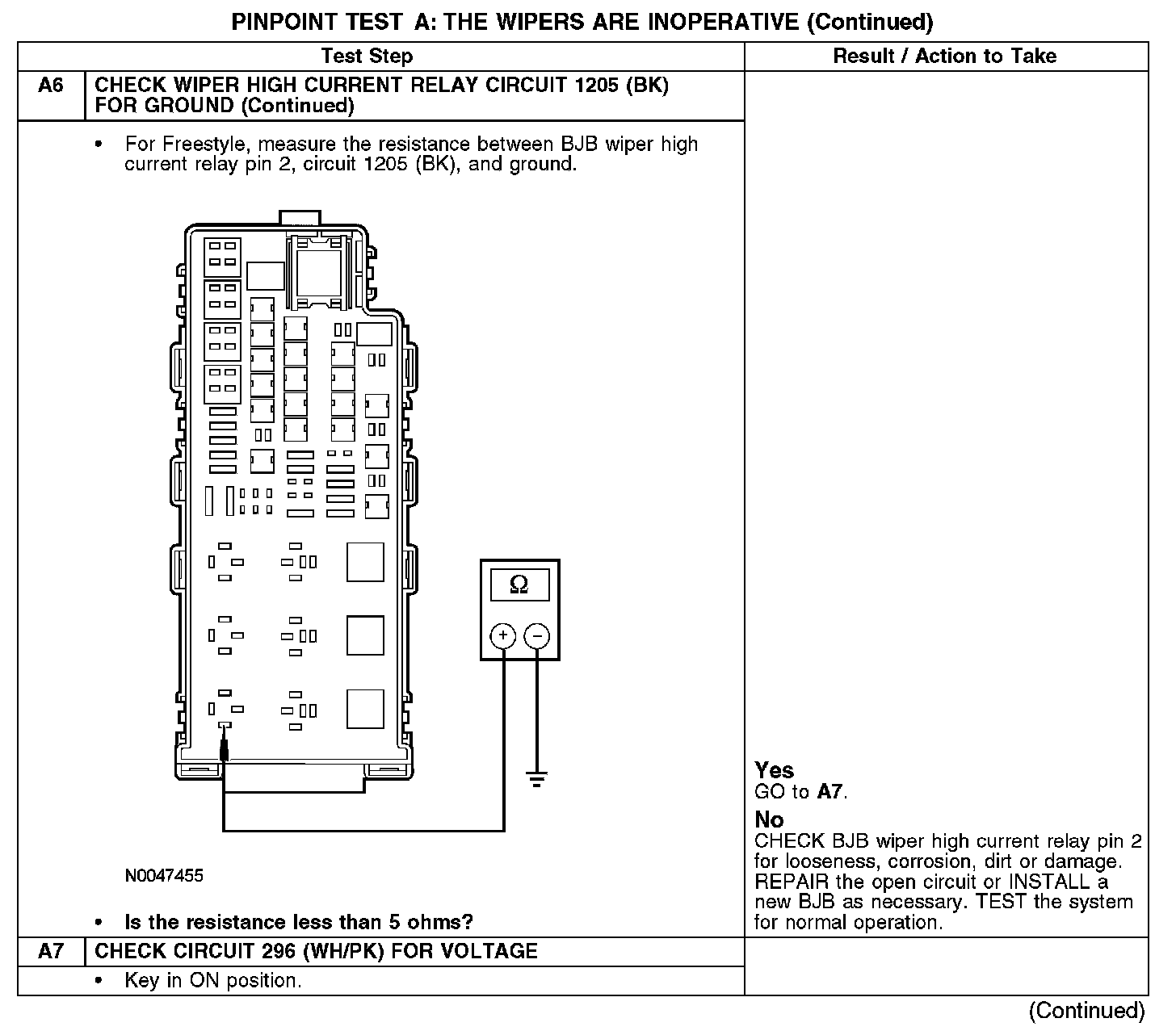

A6-A7:

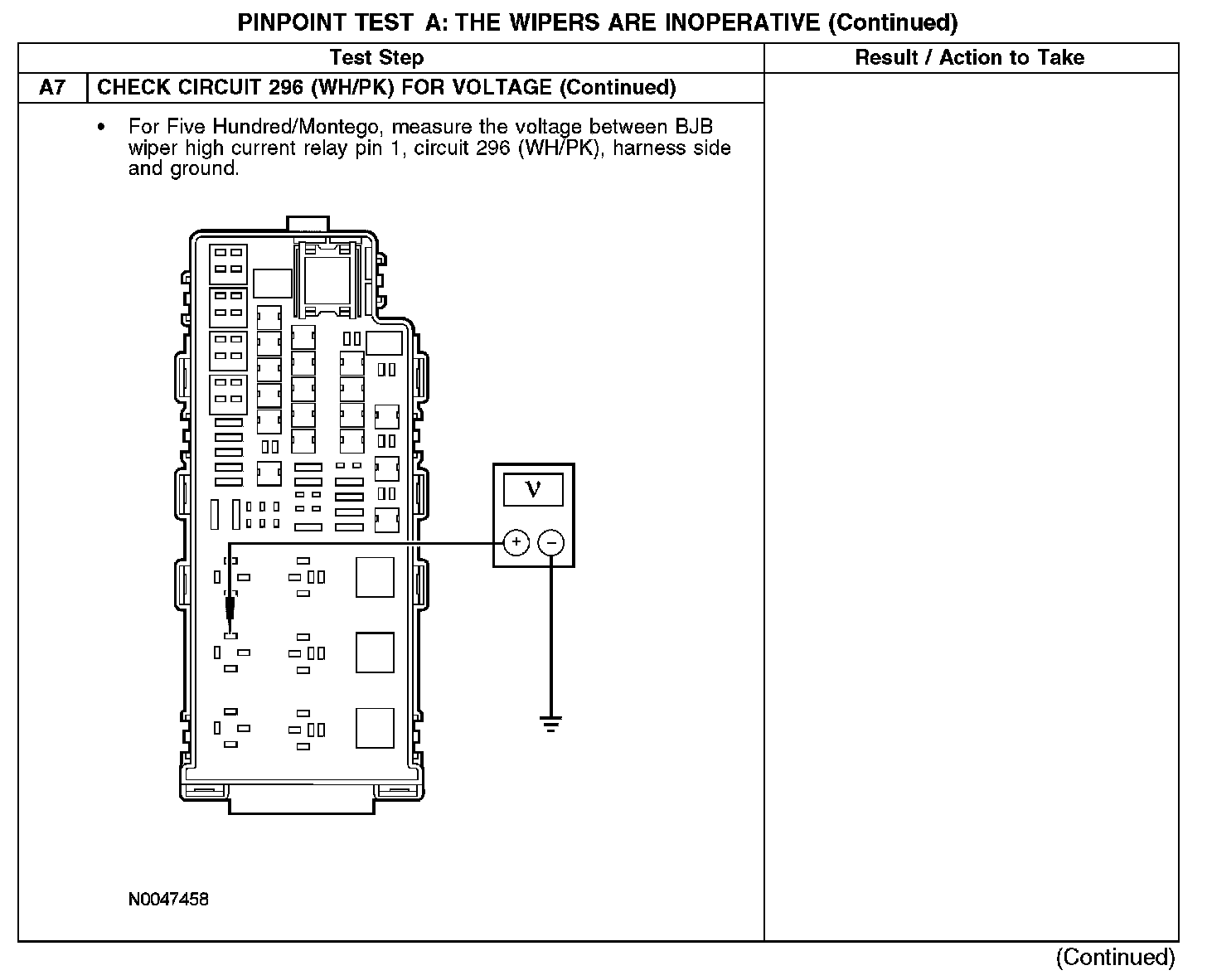

A7 Continued:

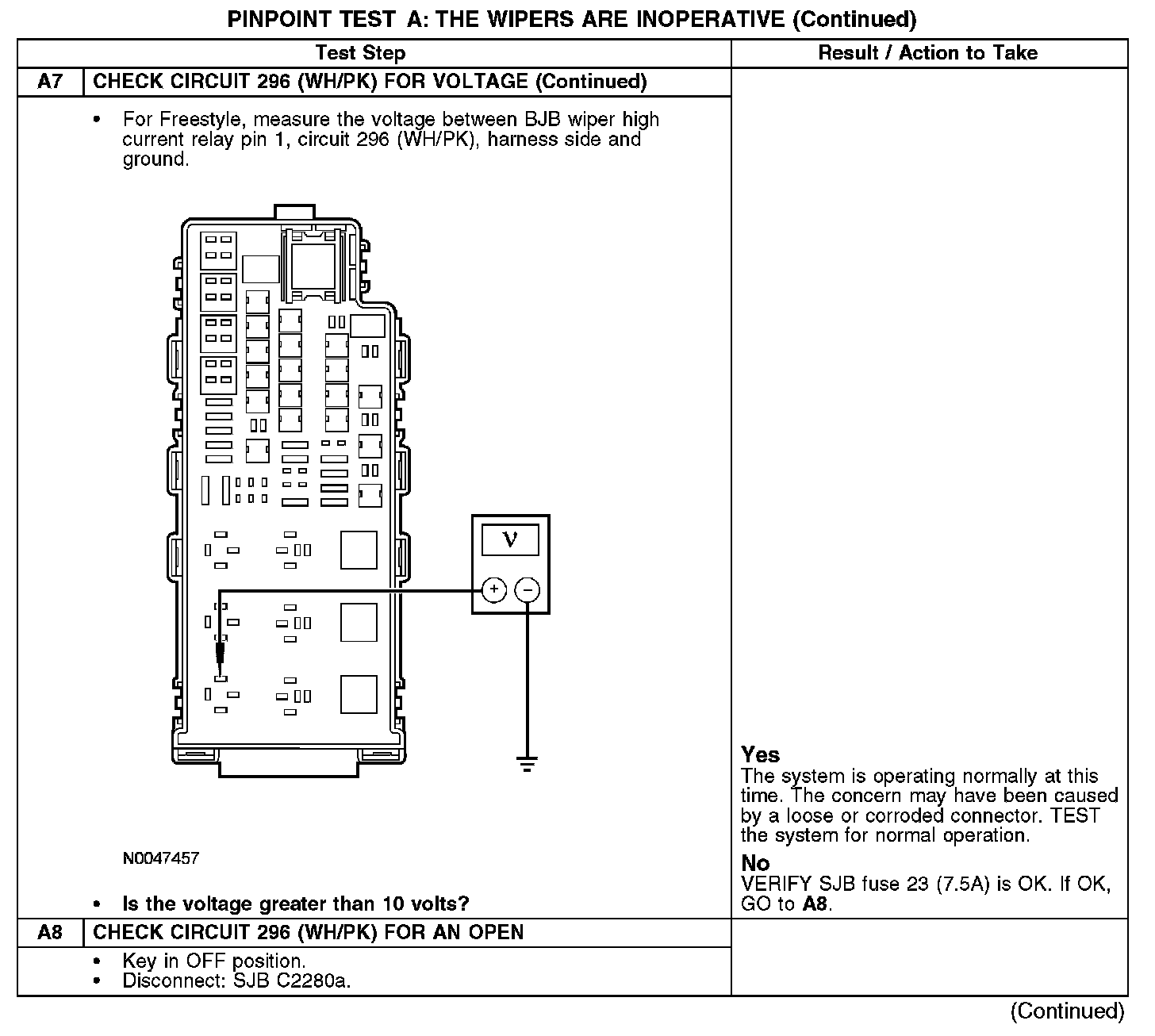

A7-A8:

A8 Continued:

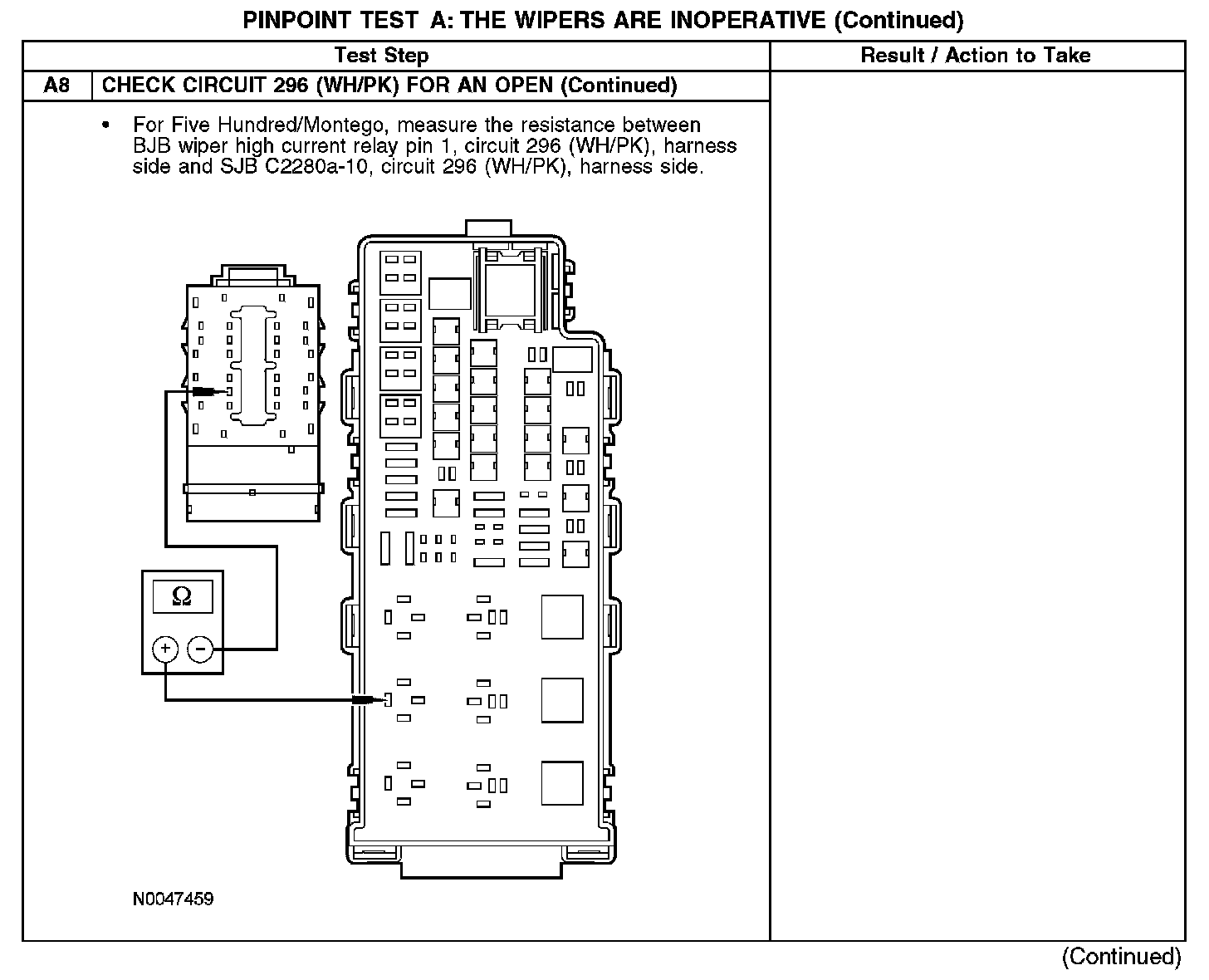

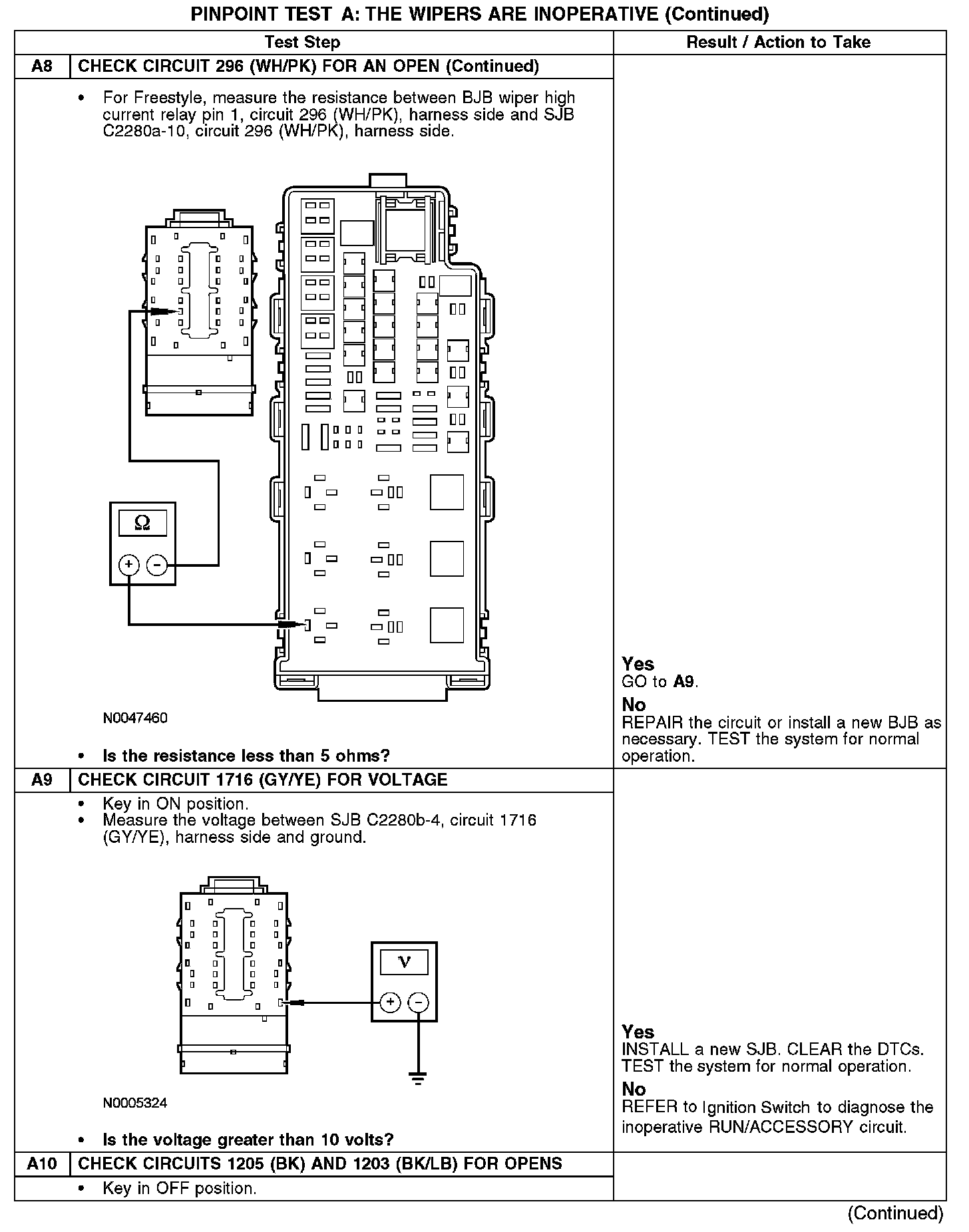

A8-A10:

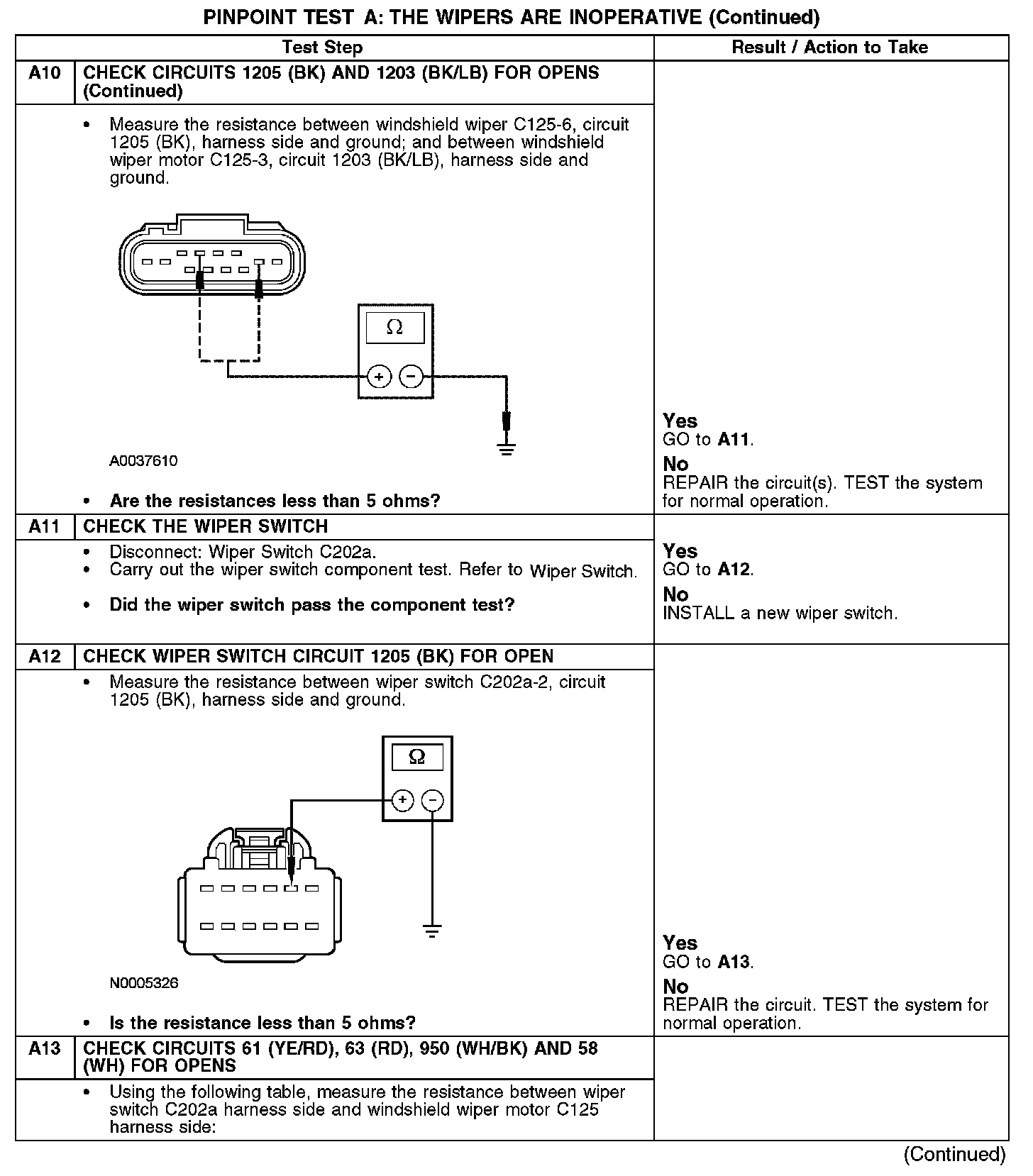

A10-A13:

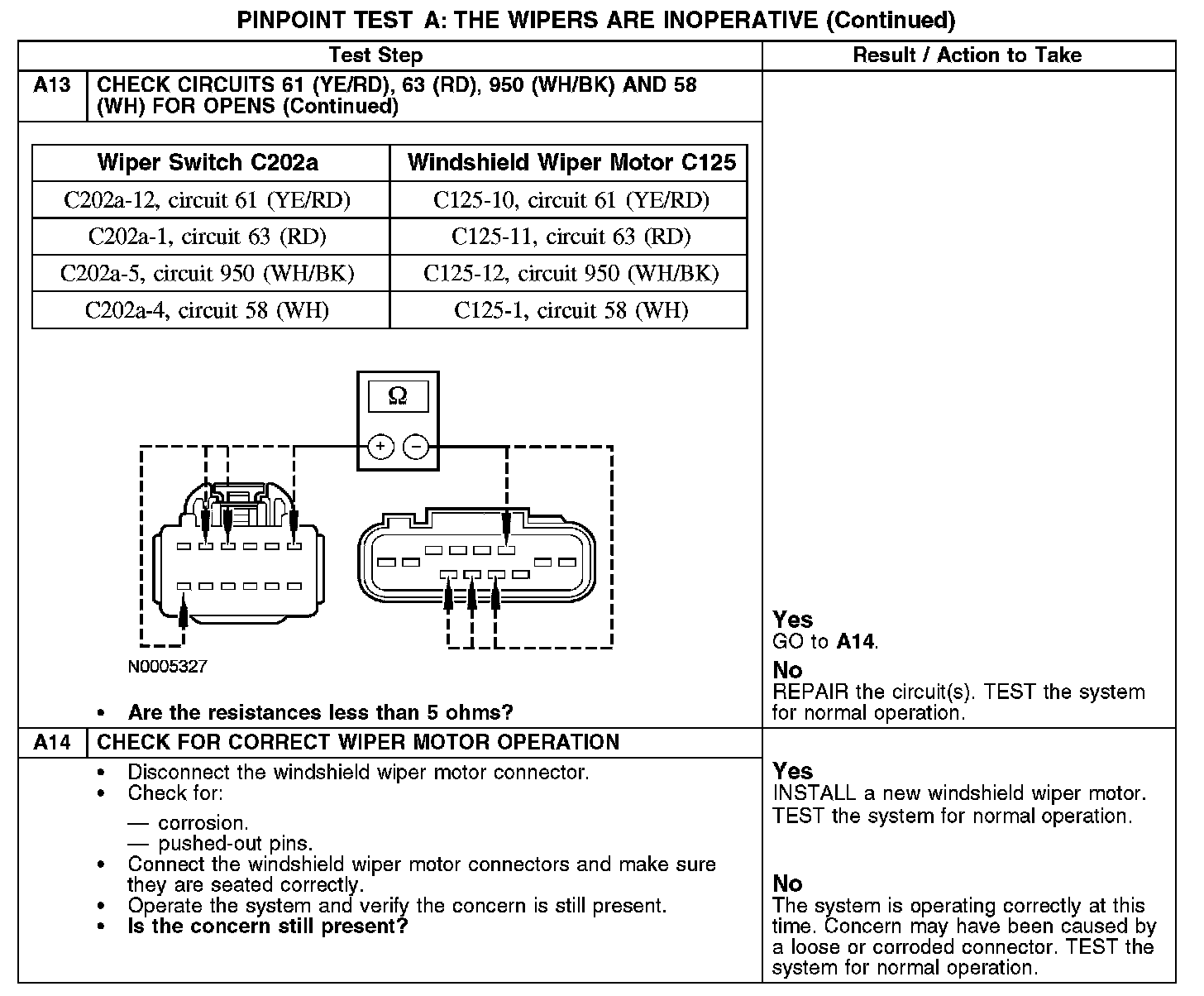

A13-A14:

Normal Operation
Under normal operation, the windshield wiper motor receives power through circuit 1671 (RD) and is grounded through circuits 1203 (BK/LB) and 1205 (BK). The front wiper motor receives open and ground inputs from the wiper switch through circuits 58 (WH), 61 (YE/RD), 63 (RD) and 950 (WH/BK) to activate the windshield wipers to the selected speeds.

Possible Causes
- Fuse
- Open in circuits 58 (WH), 61 (YE/RD), 63 (RD), 950 (WH/BK), 1203 (BK/LB) or 1205 (BK)
- Inoperative wiper switch
- Inoperative windshield wiper motor
