Test H: The Delayed Accessory Is Inoperative

PINPOINT TEST H: THE DELAYED ACCESSORY IS INOPERATIVE

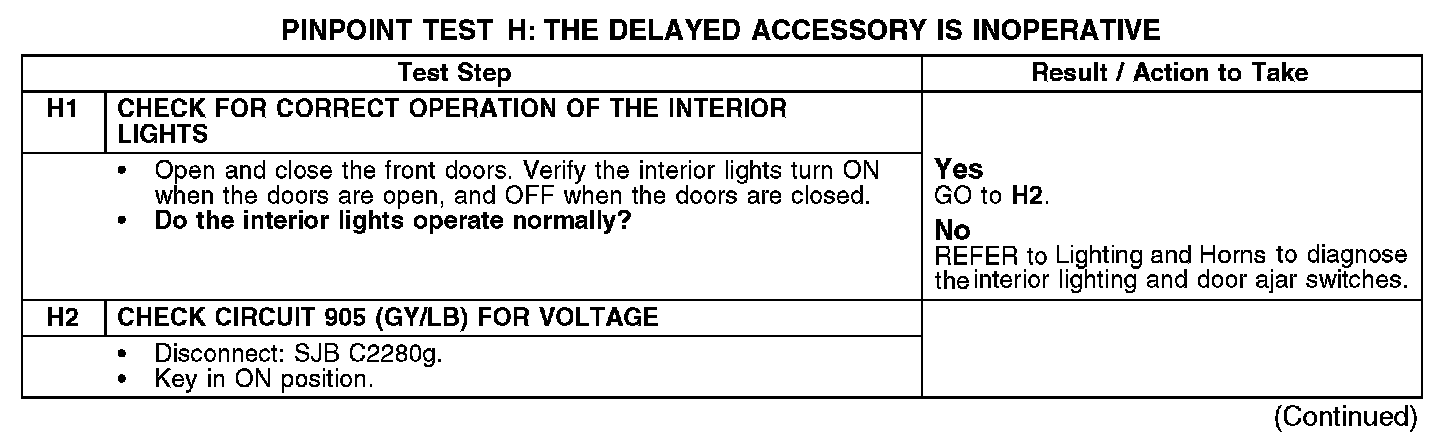

H1-H2:

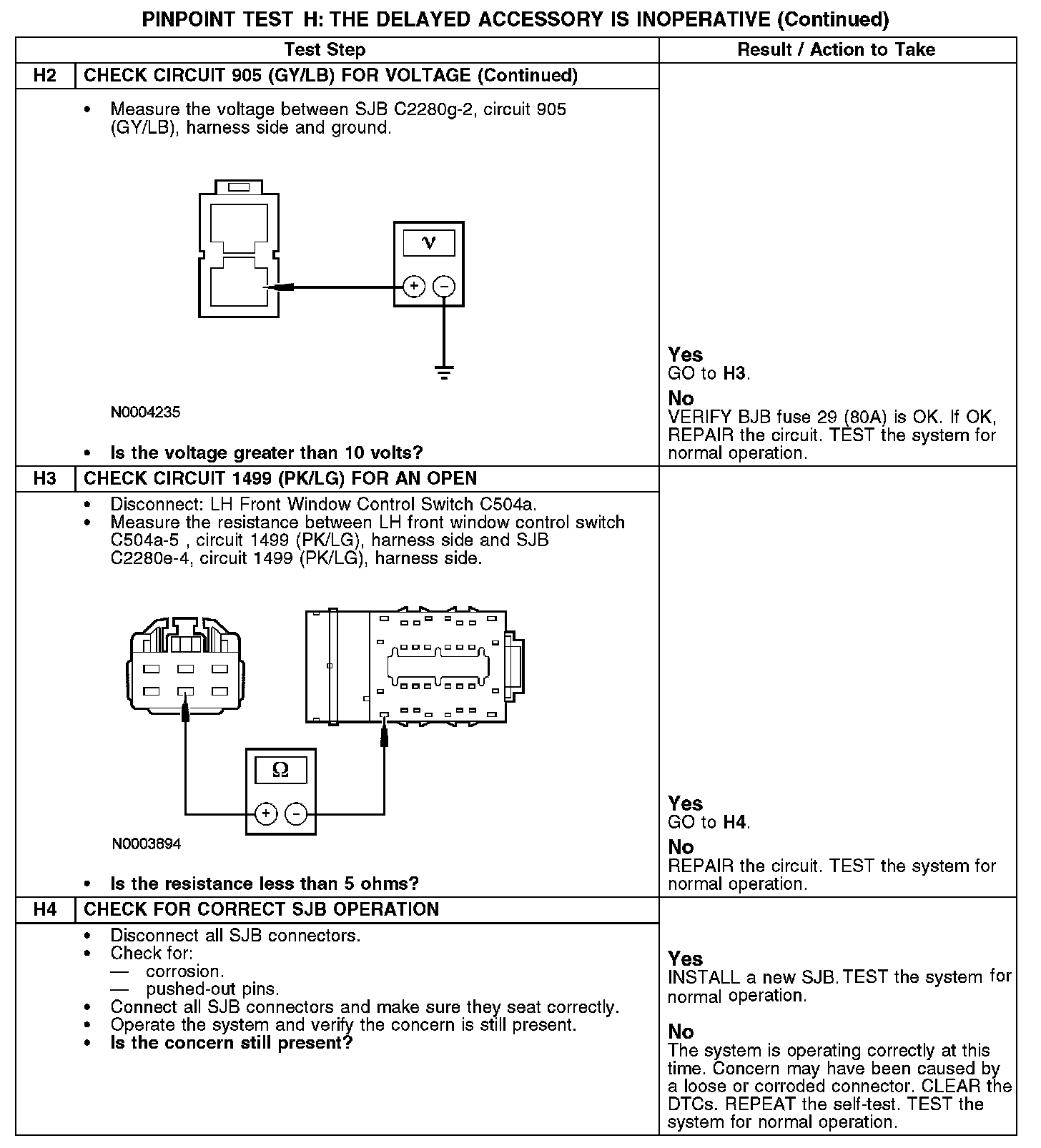

H2-H4:






Normal Operation
The delayed accessory relay, which is integral to the smart junction box (SJB), receives power from the central junction box (CJB) through circuit 905 (GY/LB). When the ignition key is turned ON, the SJB activates the delayed accessory relay, which provides power to the LH front window control switch through circuit 1499 (PK/LG). The delayed accessory feature remains active for 10 minutes after the ignition key is turned OFF or until either front door is opened.

Possible Causes
- Circuit 905 (GY/LB) or 1499 (PK/LG) open
- Inoperative SJB
- Inoperative door ajar switches
- Fuse
