Halfshaft Seal - RH

Halfshaft Seal - RH

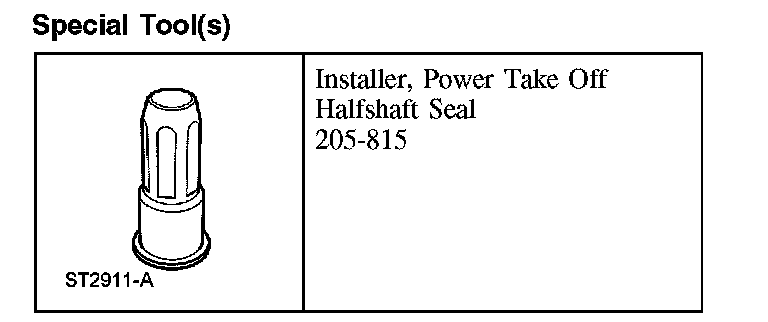

Special Tool(s):





Removal
1. Remove the RH halfshaft.

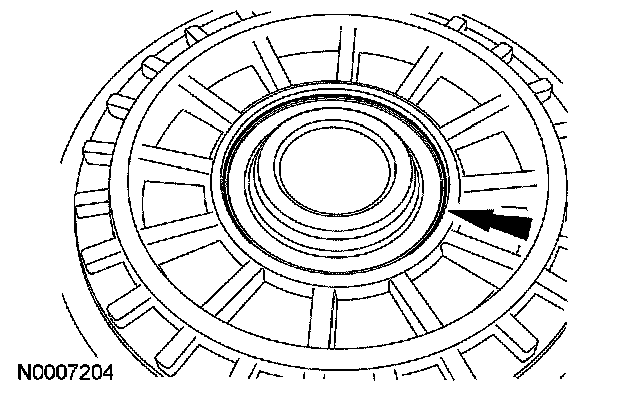

2. Remove and discard the halfshaft seal.





Installation

1. CAUTION: Make sure the halfshaft seal, the halfshaft seal bore and the halfshaft are clean and dry. Do not oil the halfshaft seal or leakage will occur.

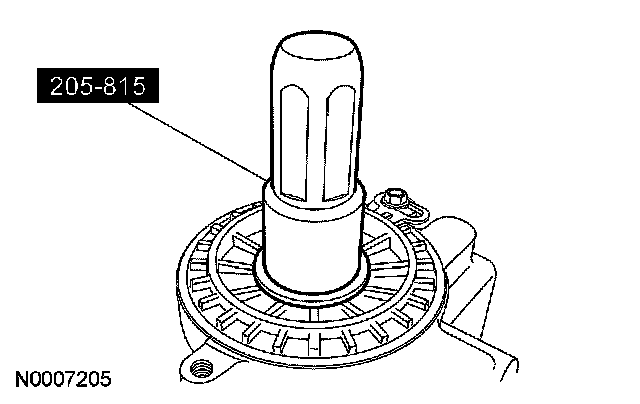

NOTE: Always install a new halfshaft seal. Using the special tool, install a new halfshaft seal.

2. Install the RH halfshaft.
