Output Yoke/Flange: Service and Repair

Output Flange

Removal and Installation

1. Remove the driveshaft.

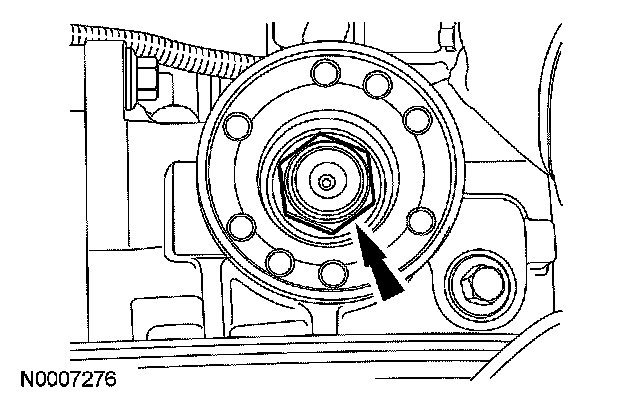

2. Remove the output flange nut.
^ To install, tighten to 100 Nm (74 ft. lbs.).





3. Remove the output flange.
4. To install, reverse the removal procedure.
