Drive Pinion Seal - Inner

Drive Pinion Seal - Inner

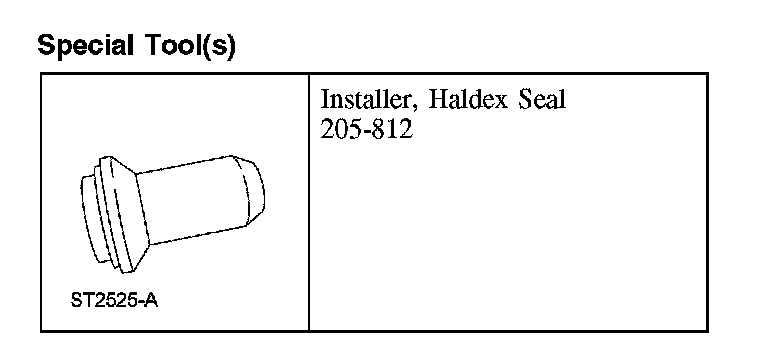

Special Tool(s):

Removal

1. NOTE:The drive pinion inner seal is a double seal assembly.

Remove the active on-demand coupling.

2. CAUTION: The drive pinion seal is a 2-piece design. Remove both pieces.

Using a suitable blind hole puller, remove and discard the drive pinion seal.

Installation

1. CAUTION: If the drive pinion seal becomes misaligned in its bore during installation, install a new drive pinion seal.

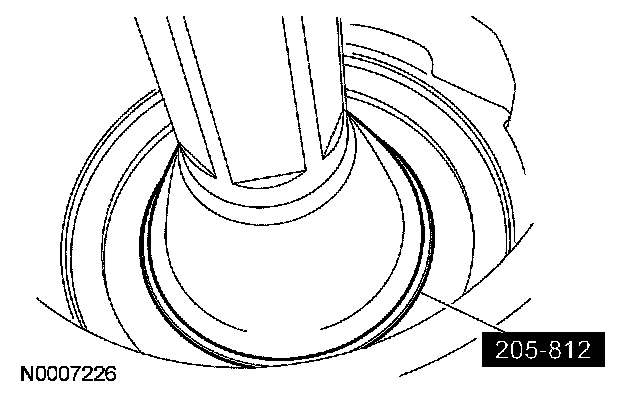

Using the special tool, install the drive pinion seal.





2. Install the active on-demand coupling.
