207, No Forward and No Reverse

Engagement Concern: No Forward and No Reverse

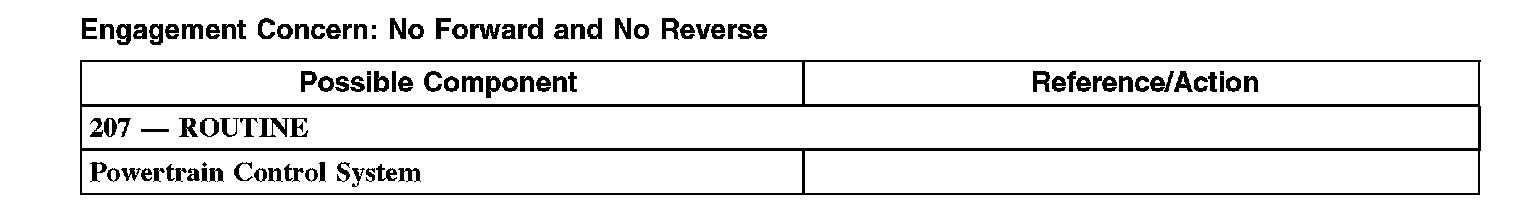

207 Engagement Concern: No Forward and No Reverse (part 1):

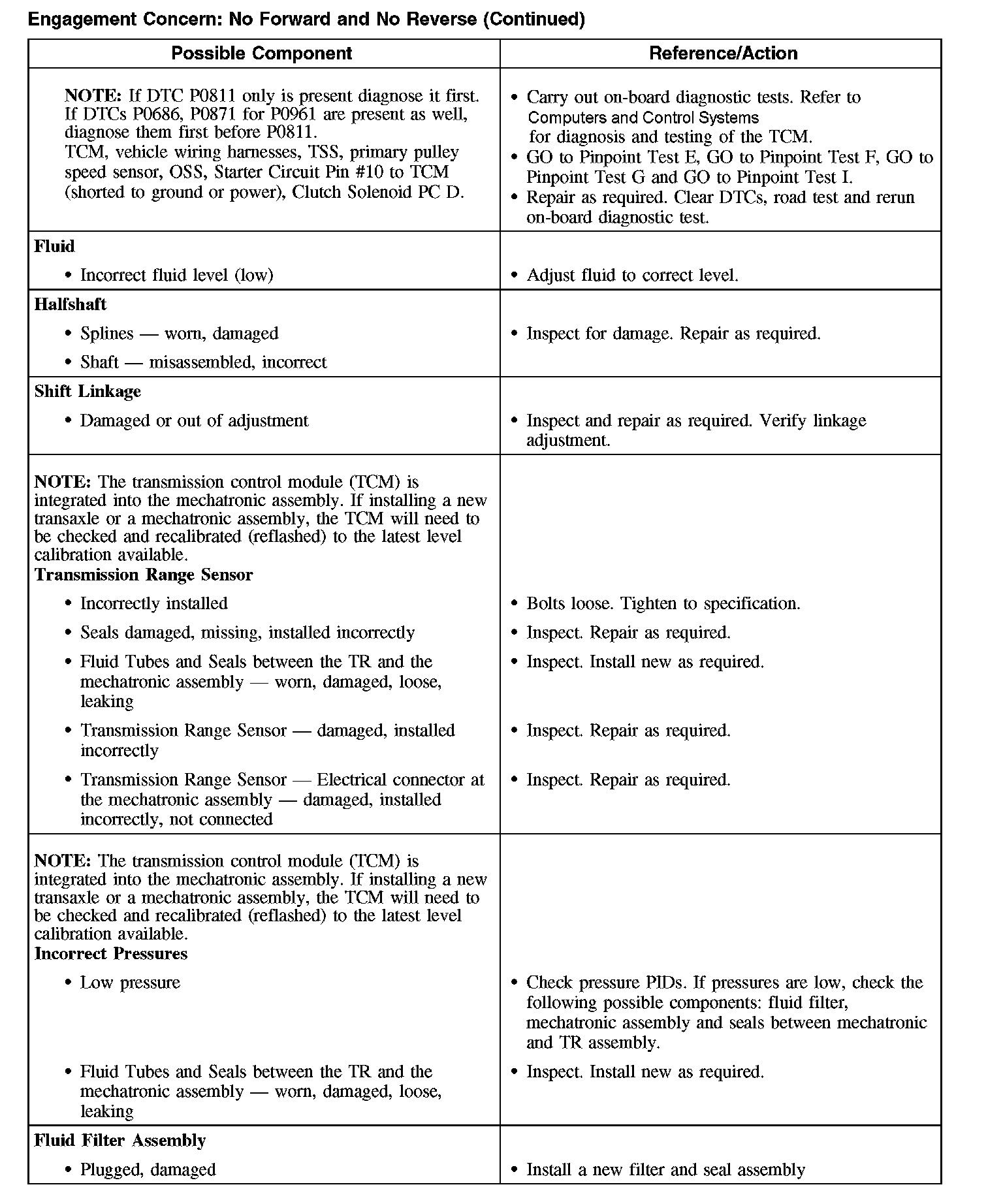

207 Engagement Concern: No Forward and No Reverse (part 2):

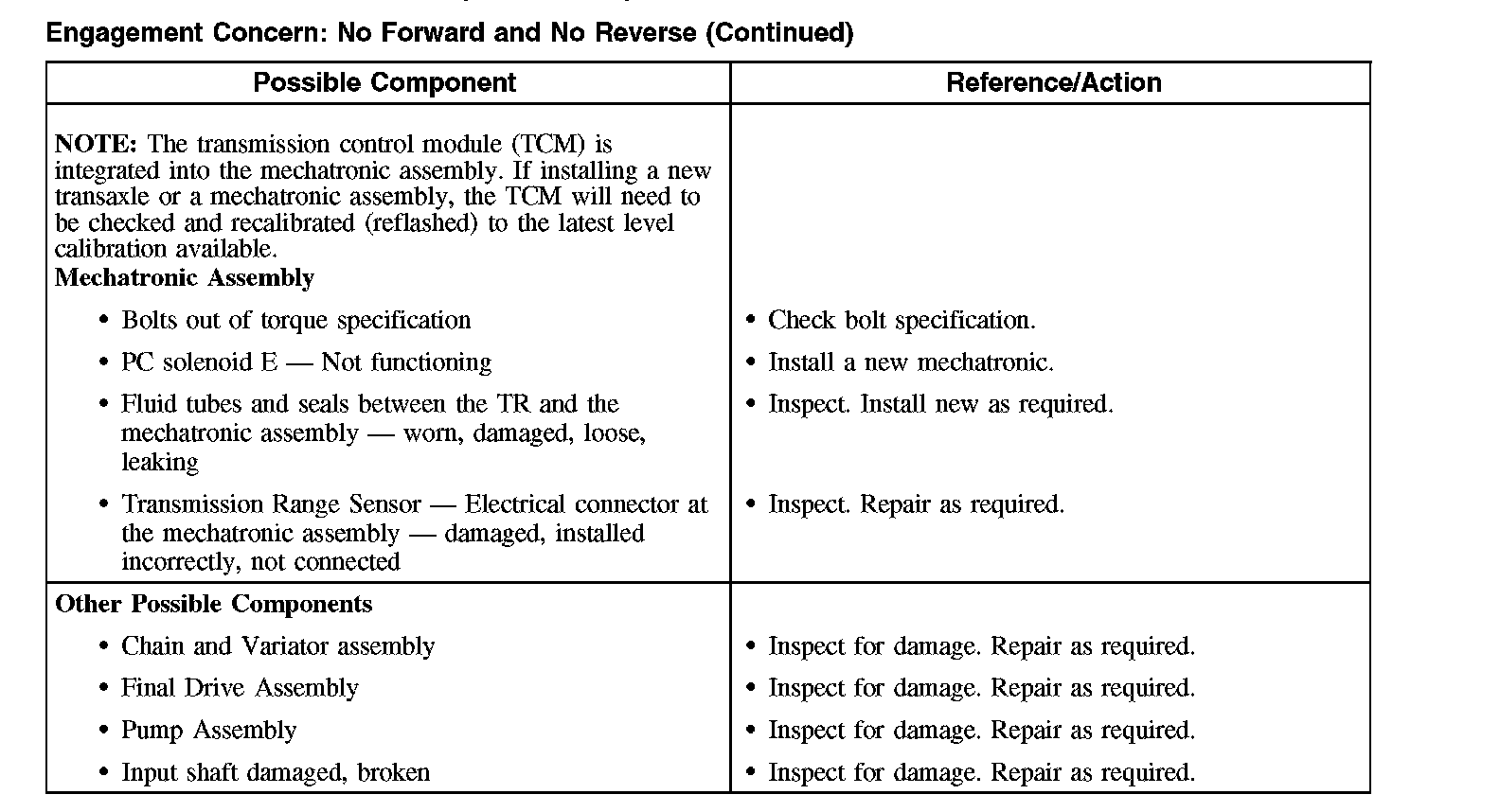

207 Engagement Concern: No Forward and No Reverse (part 3):
