Selector Lever

Selector Lever

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the center console.

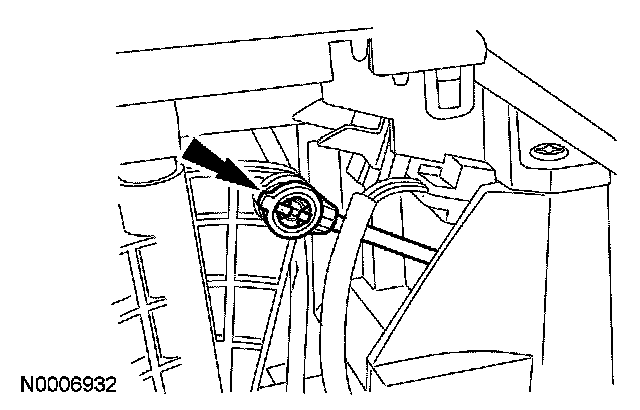

3. Disconnect the selector lever cable end from the selector lever.

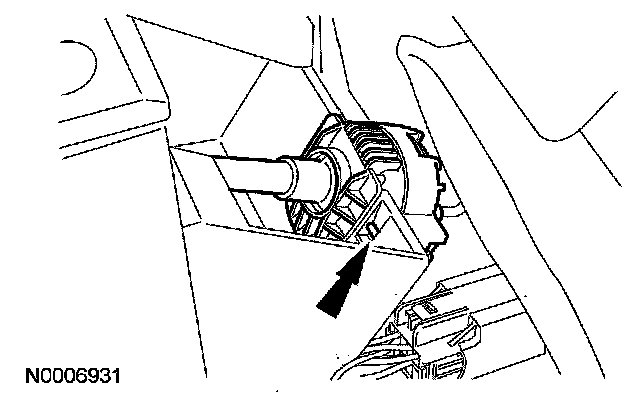

4. Depress the tab on the selector lever cable connector and lift up on the selector lever cable to remove it from the housing.

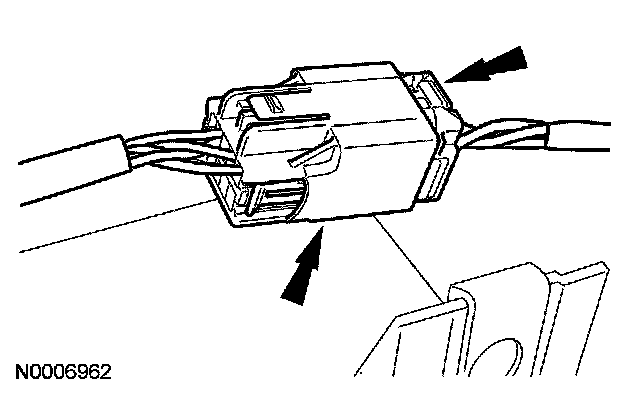

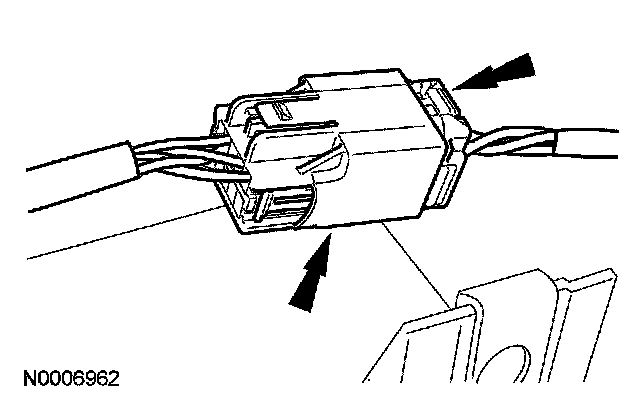

5. Disconnect the electrical connector.

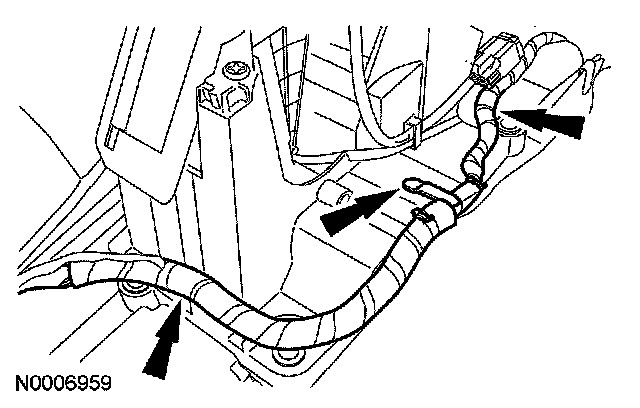

6. Disconnect the wire harness from the shifter in 3 locations.

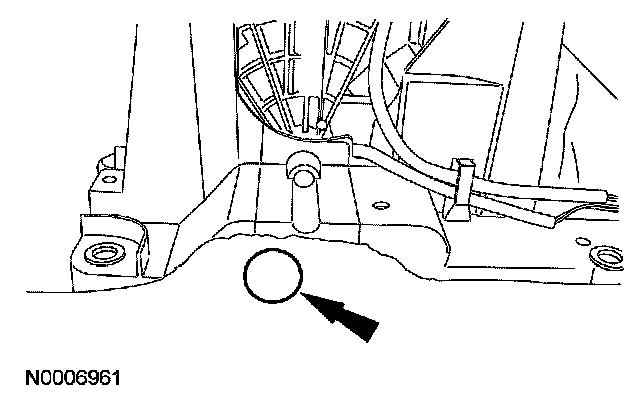

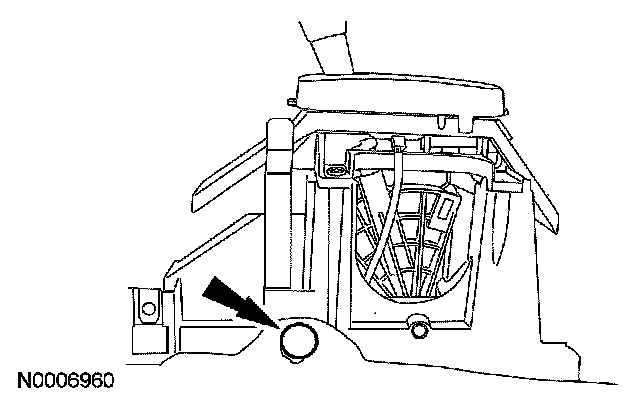

7. Remove the RH plastic retaining clip for the carpet.

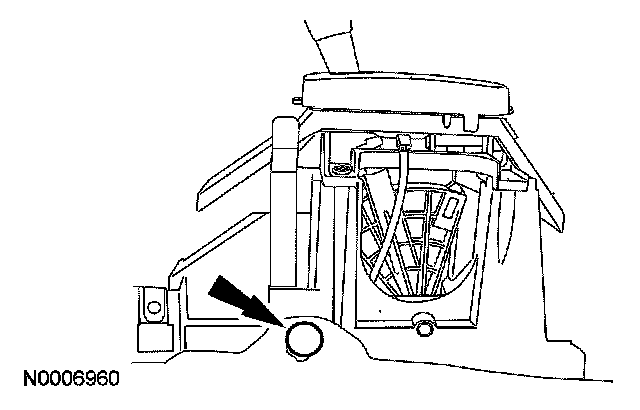

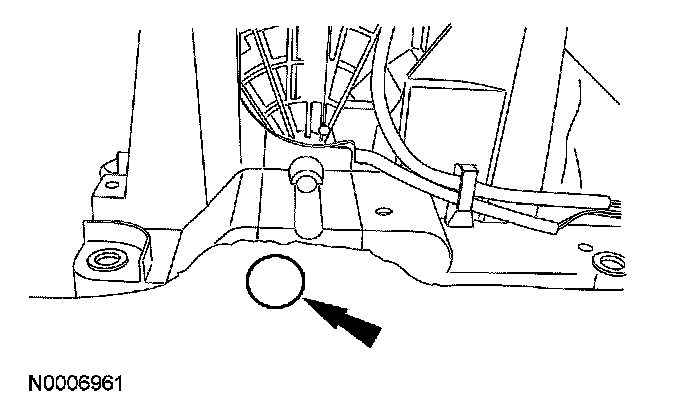

8. Remove the LH plastic retaining clip for the carpet.

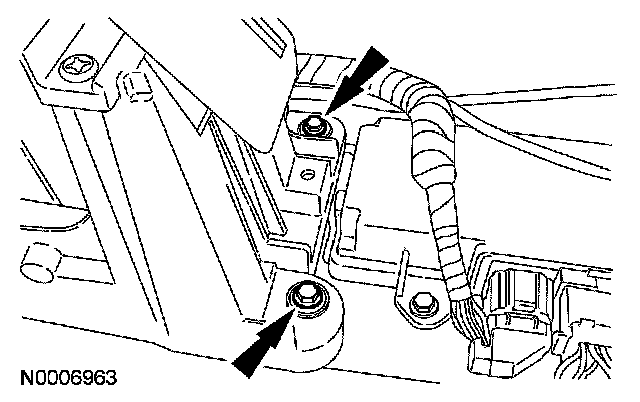

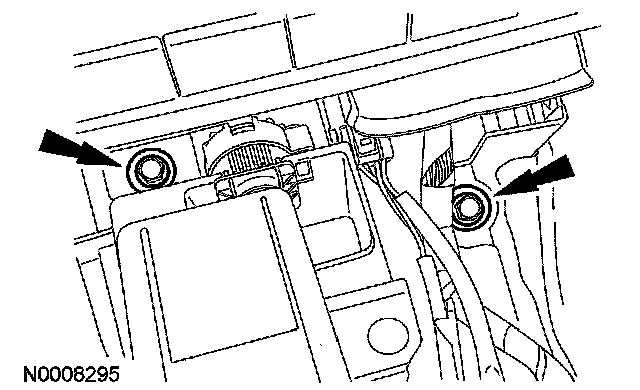

9. Remove the 2 front shifter bolts.

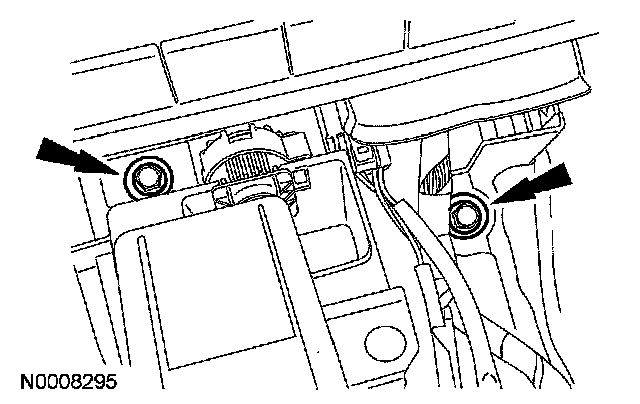

10. Remove the 2 rear shifter bolts and the shifter from the vehicle.





Installation

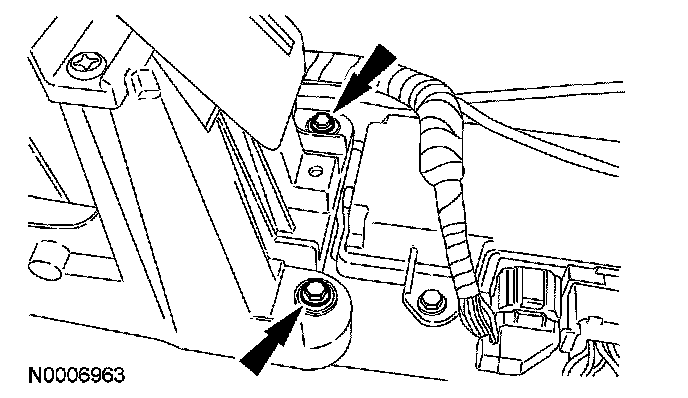

1. Install the shifter and the 2 front bolts.
^ Tighten to 11 Nm (8 ft. lbs.).





2. Install the 2 rear shifter bolts.
^ Tighten to 11 Nm (8 ft. lbs.).

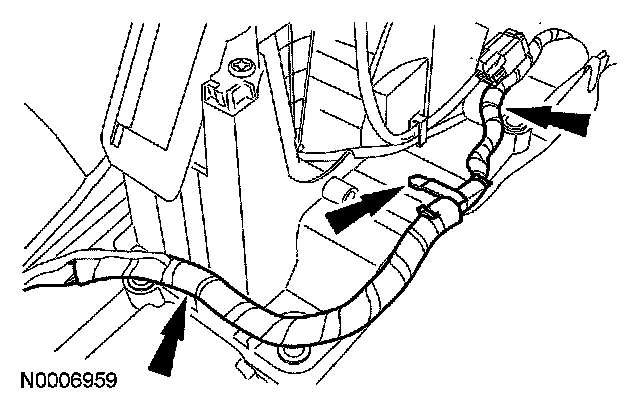

3. Connect the wire harness to the shifter.





4. Connect the electrical connector.





5. Install the LH plastic retaining clip for the carpet.





6. Install the RH plastic retaining clip for the carpet.





7. Push the selector lever cable into the housing. Make sure that the tab on the selector lever cable connector is locked in place. Pull up on the cable to make sure it is fully seated.

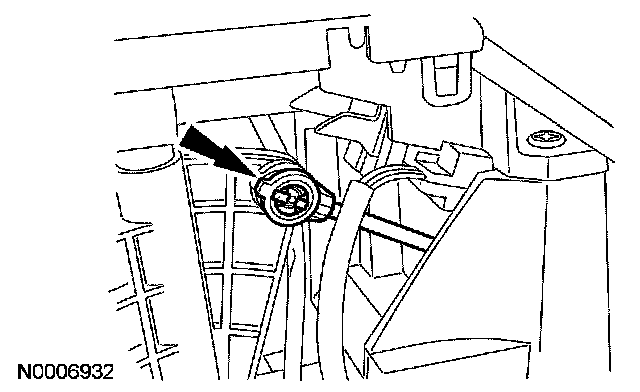

8. Connect the selector lever cable end to the selector lever.





9. Install the center console.
10. Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to Selector Lever Cable Adjustment.
