Manual Control Lever Shaft Seal

Manual Control Lever Shaft Seal

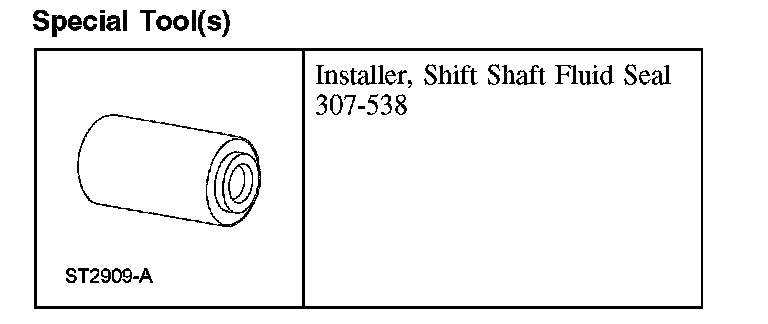

Special Tool(s):

Material:

Removal

CAUTION: MERCON (R), MERCON (R) V, MERCON (R) SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

1. Remove the battery and battery tray.

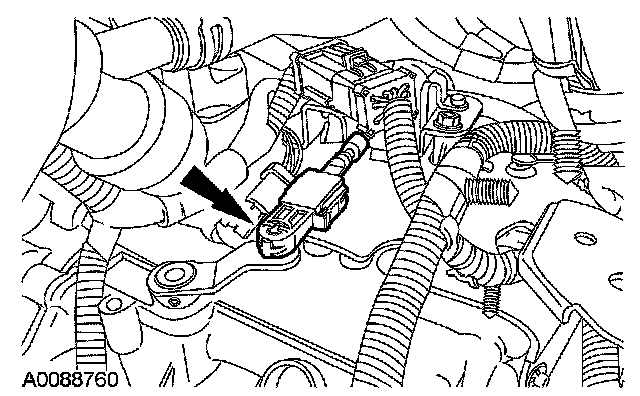

2. Disconnect the shift cable end.

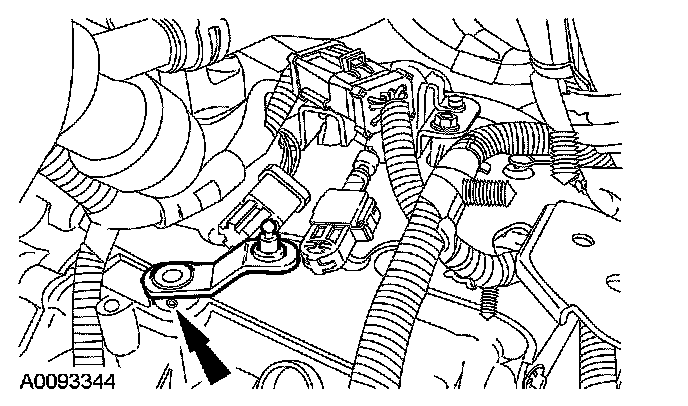

3. Remove and discard the roll pin, then remove the outer manual lever.

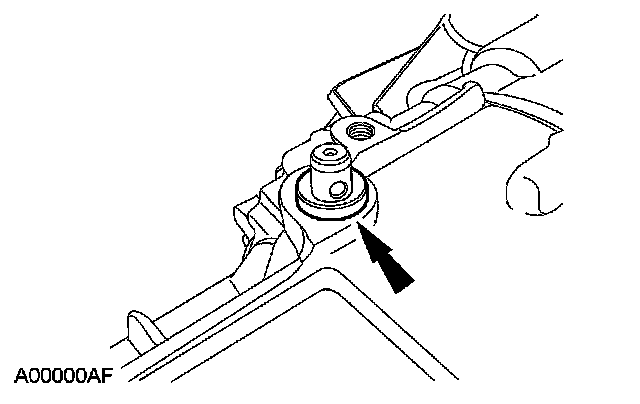

4. Using a suitable pick, remove the selector shaft seal.





Installation

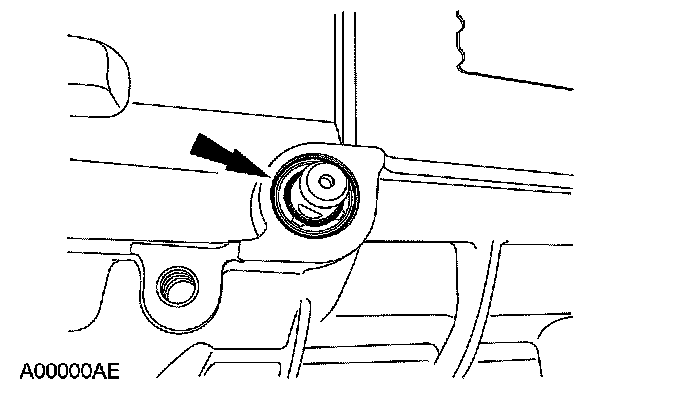

1. Position the new seal in place.

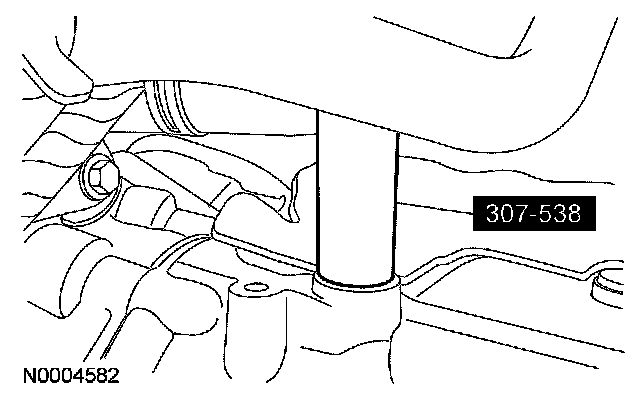

2. Using the special tool, install a new selector shaft seal.

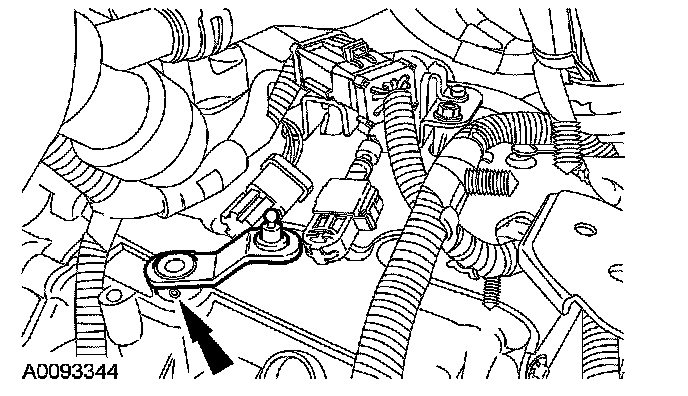

3. Position the outer manual lever over the manual shaft. Install a new roll pin.

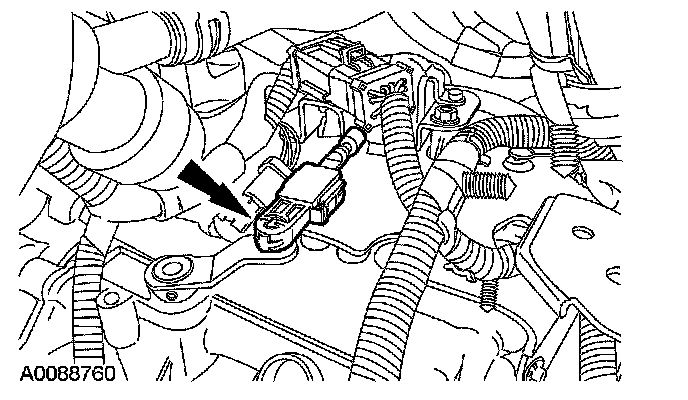

4. Connect the shift cable end.





5. Install the battery tray and battery.
6. If required, top off the transaxle with clean continuously variable transaxle (CVT) transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle.
