Differential Seals - LH

Differential Seals - LH

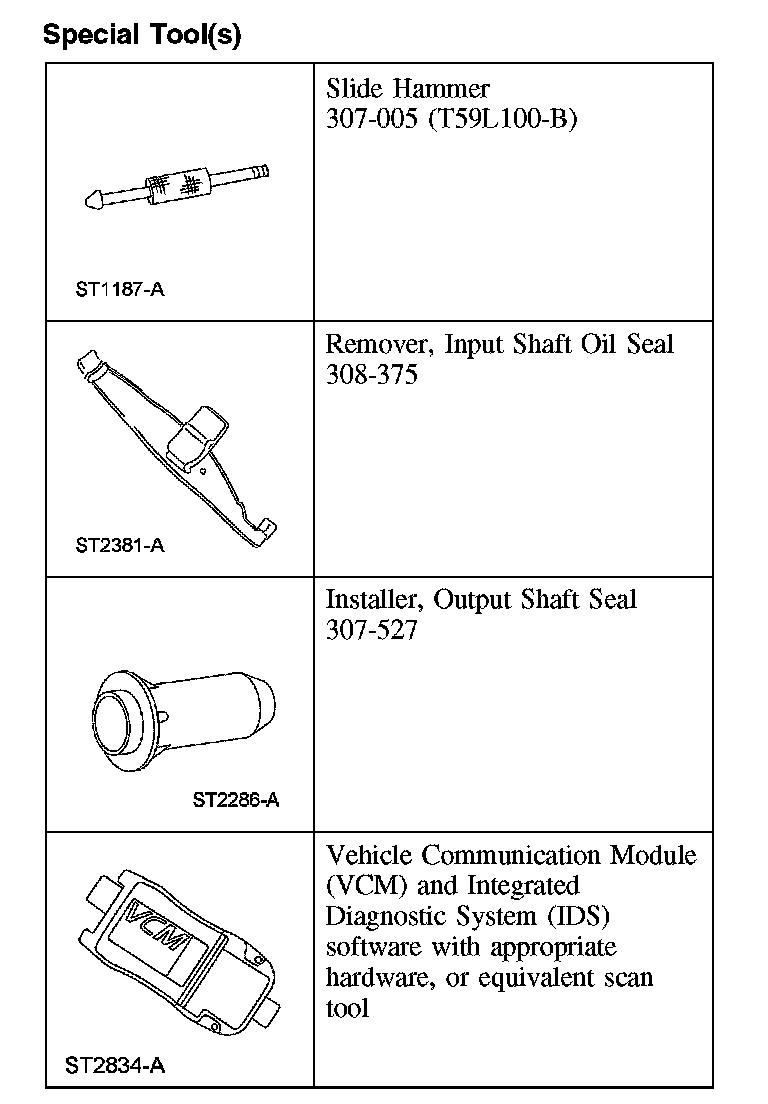

Special Tool(s):

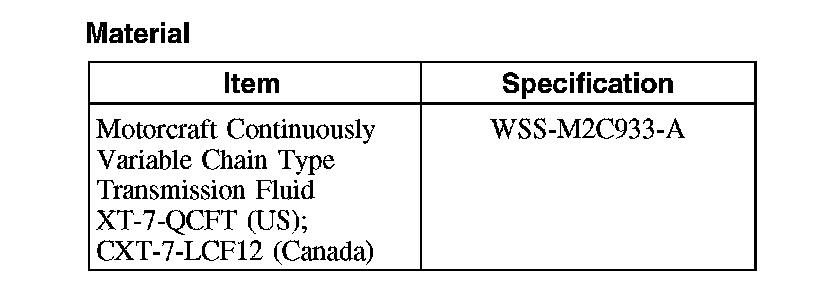

Material:

Removal

CAUTION: MERCON (R), MERCON (R) V, MERCON (R) SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

1. Remove the LH halfshaft.

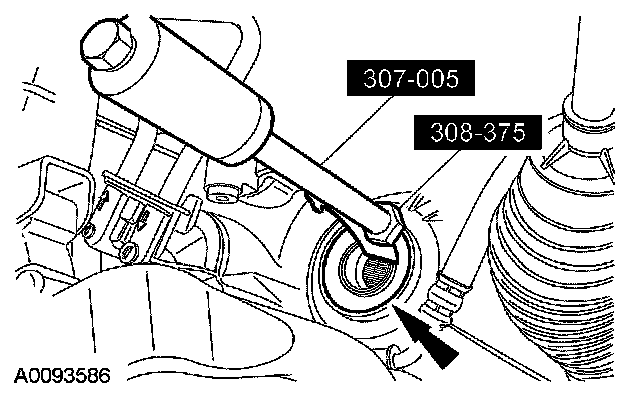

2. Using the special tools, remove the differential fluid seal.





Installation

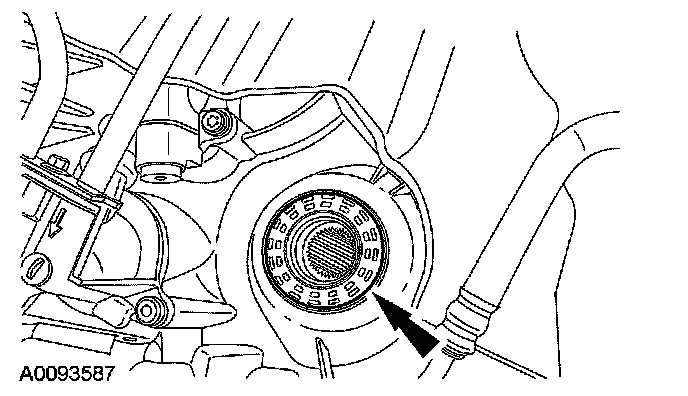

1. Lubricate the new differential fluid seal in clean continuously variable transaxle (CVT) transmission fluid and position the differential fluid seal in place.

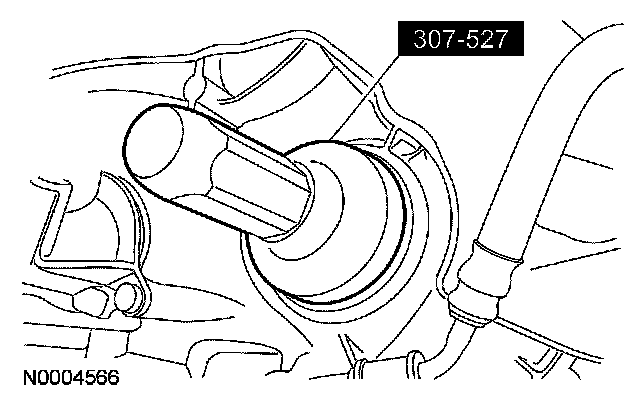

2. Using the special tool, install the differential fluid seal.





3. Install the LH halfshaft.
4. If required, top off the transaxle with clean CVT transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle.
