Electrical Connectors

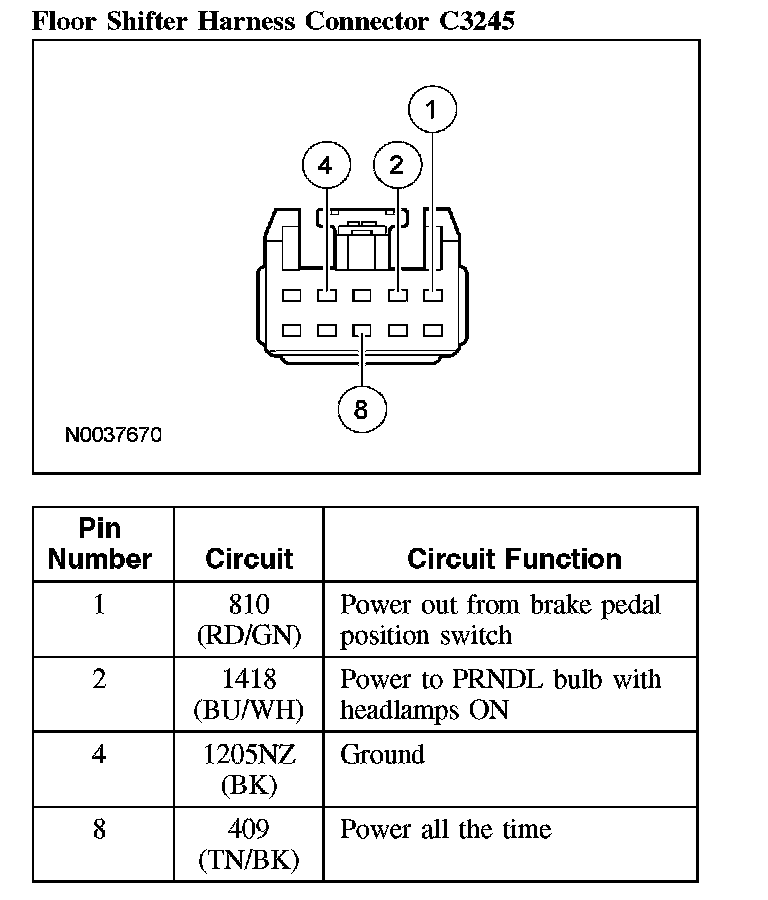

Floor Shifter Harness Connector C3245:

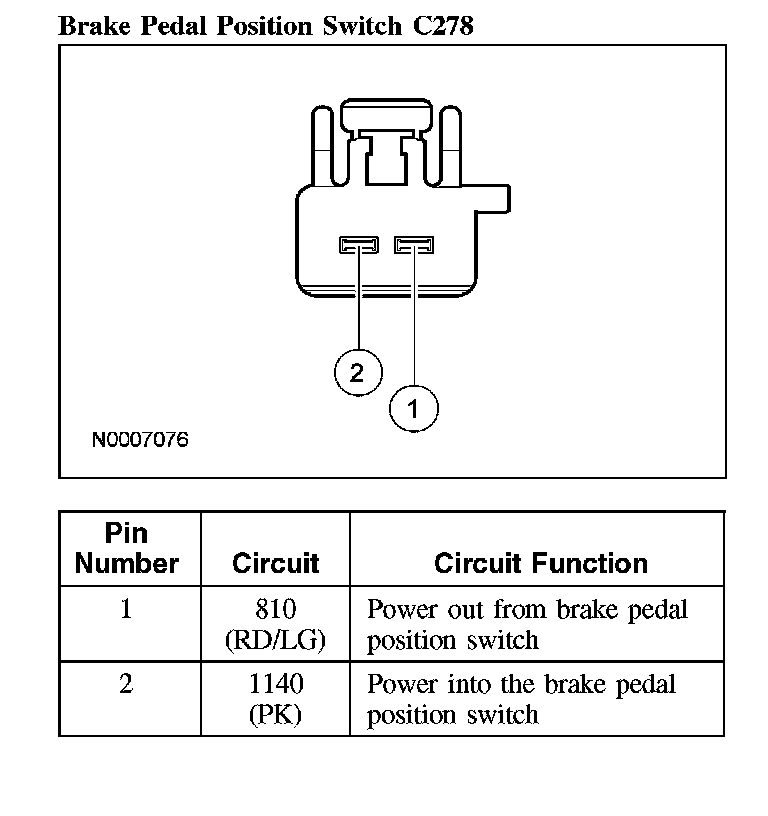

Brake Pedal Position Switch C278:

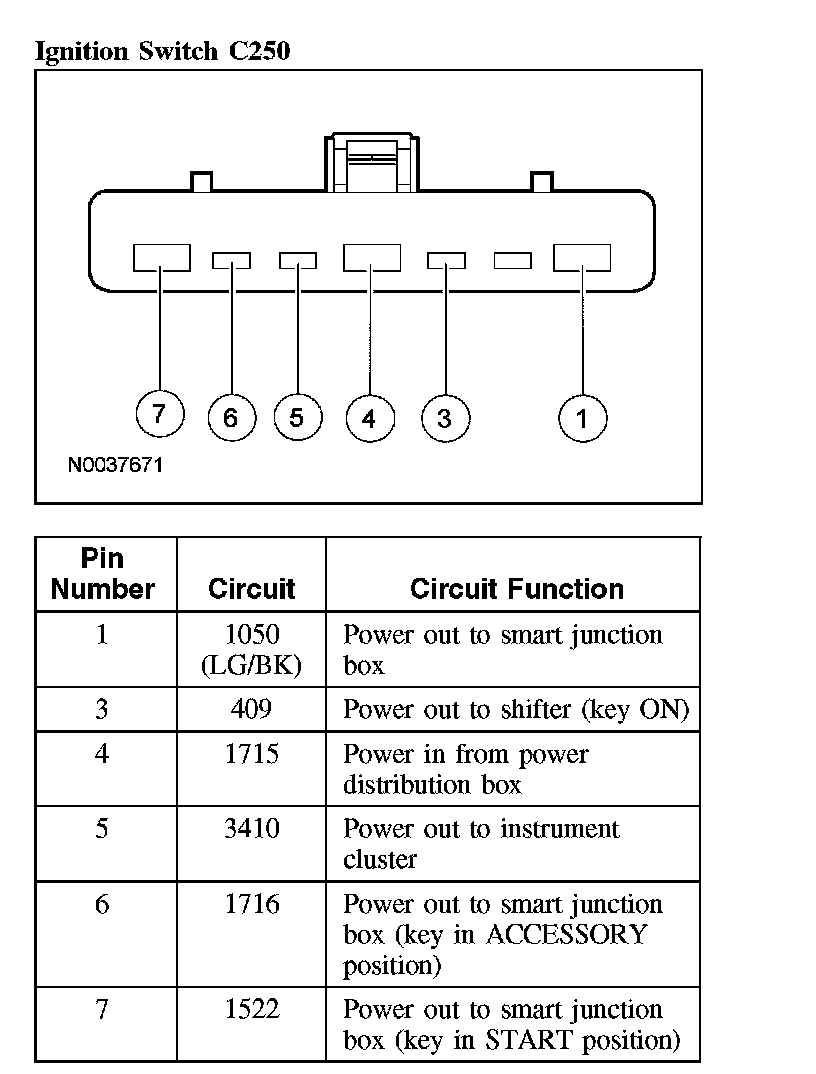

Ignition Switch C250:

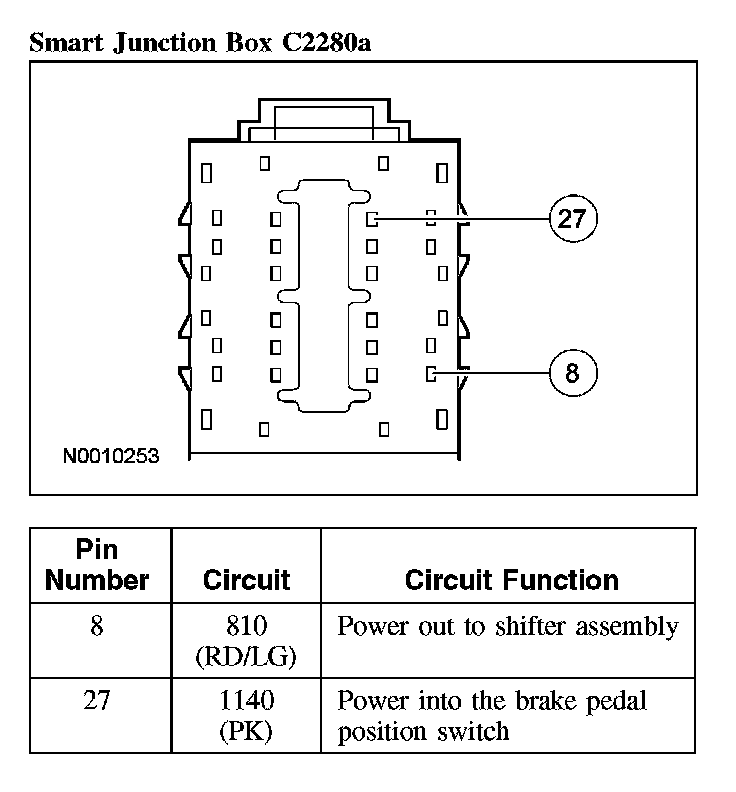

Smart Junction Box C2280a:

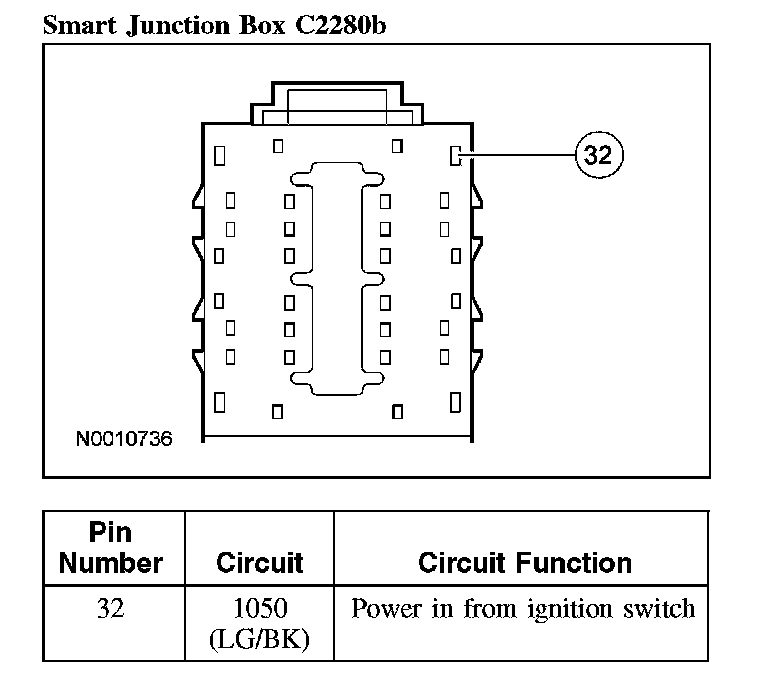

Smart Junction Box C2280b:
