Test B: No Power in ACC
Test B: No Power In ACCRefer to Vehicle/Diagrams, Power Distribution/SJB for schematic and connector information.
Normal Operation
The ignition switch ACC circuit provides fused battery voltage along circuit 1716 (GY/YE) to the smart junction box (SJB) when the key is in the ACC position.
Possible Causes
^ Circuit open
^ Circuit shorted
^ Ignition switch
^ SJB

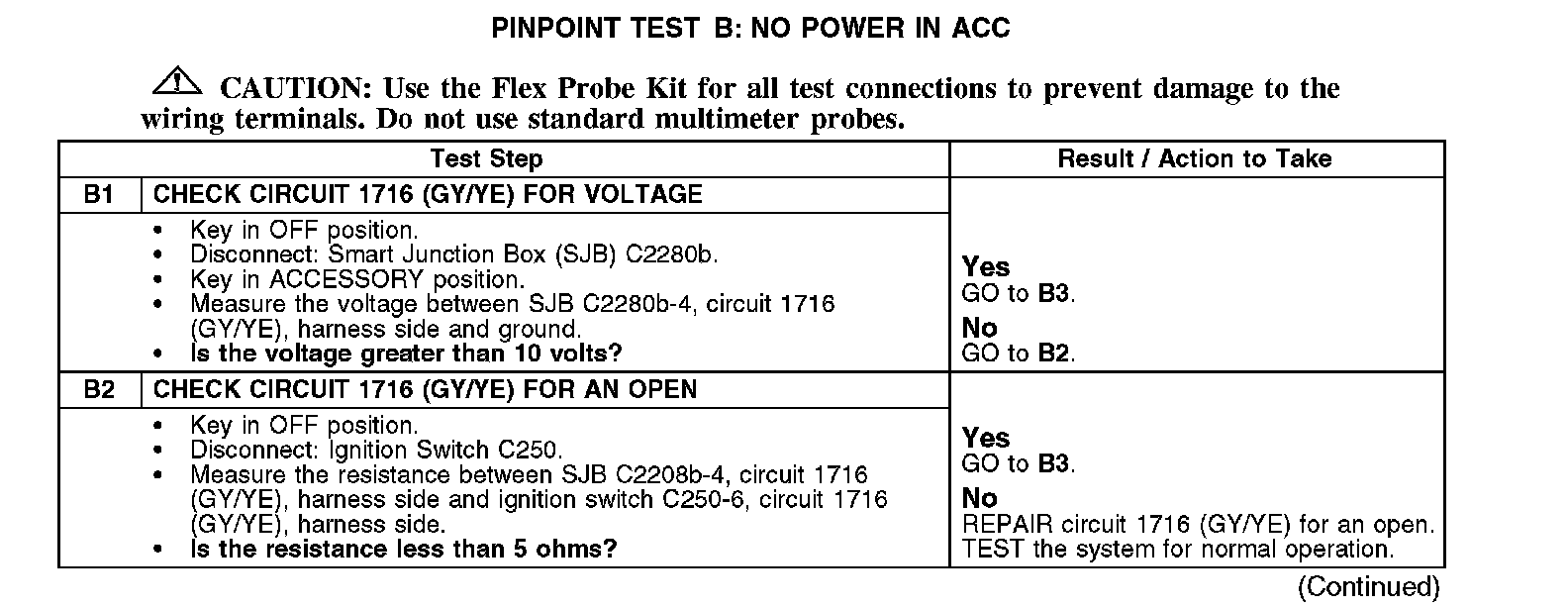

B1-B2:

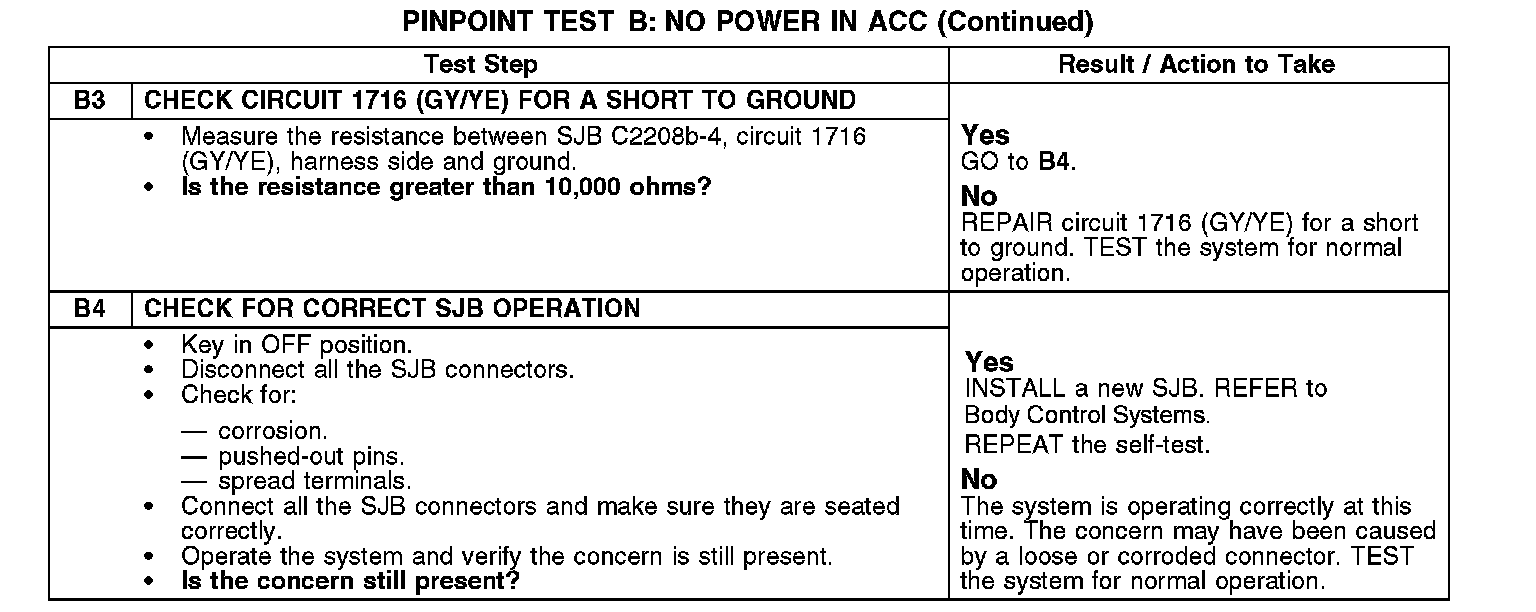

B3-B4:
