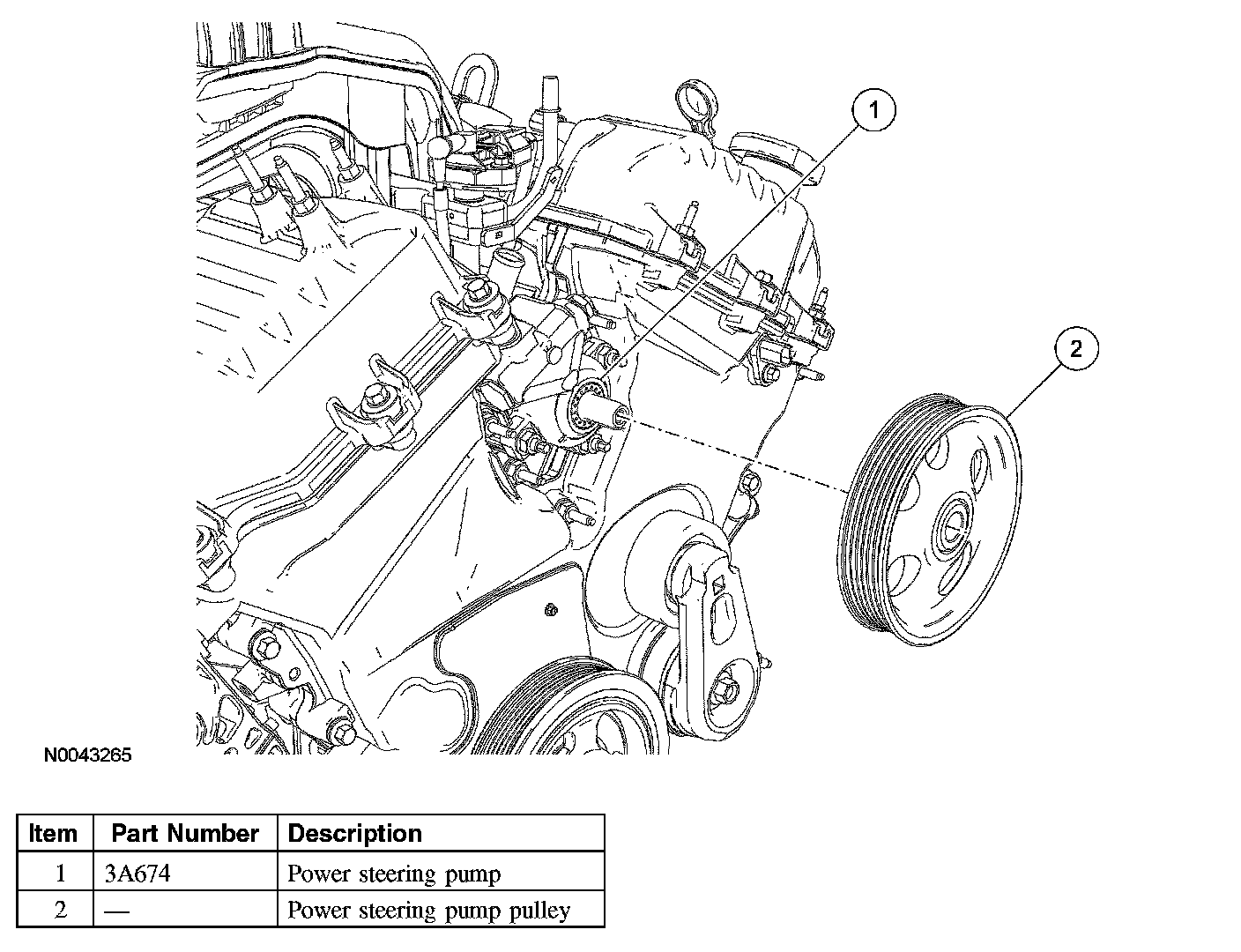

Power Steering Pump Pulley

Power Steering Pump Pulley

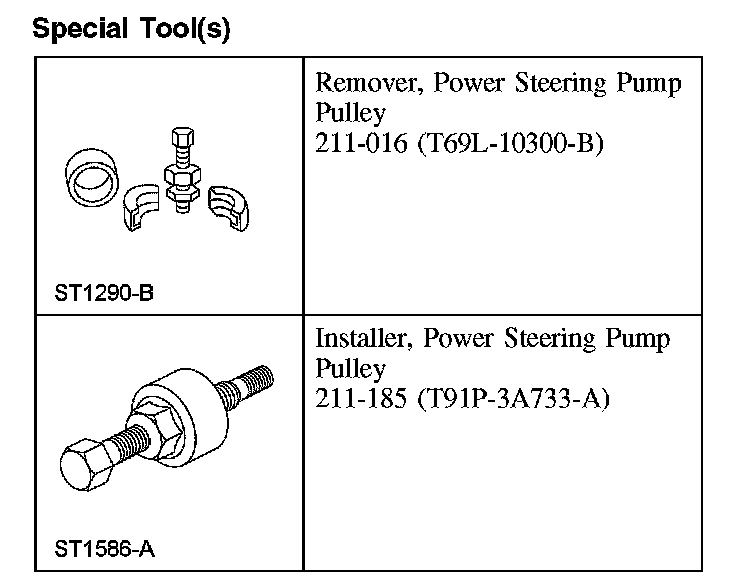

Special Tool(s):

Removal and Installation
1. Remove the 2 bolts, disconnect the electrical connector and position the degas bottle aside.
^ Tighten to 9 Nm (80 inch lbs.).
2. Disconnect the 4 electrical connectors as follows:
^ Camshaft position sensor (CMP)
^ Heated oxygen sensor (HO2S)
^ A/C pressure switch
^ Cooling fan
3. Release the 3 nuts and position aside the engine wiring harness.
^ To install, tighten to 9 Nm (80 inch lbs.).





4. Remove the engine accessory drive belt.

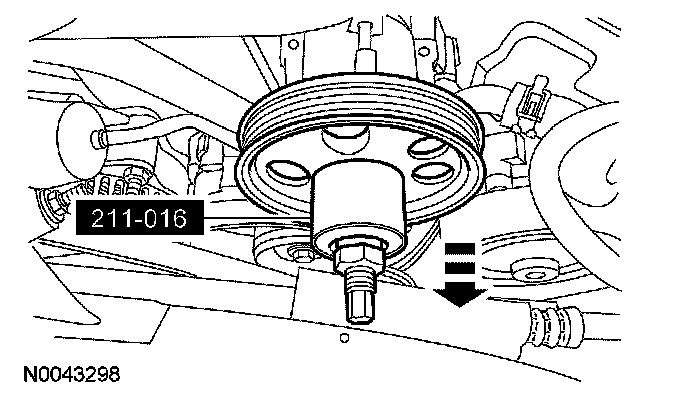

5. Using the special tool, remove the power steering pump pulley.





6. To install reverse the removal procedure.

7. NOTE: If the pulley hub has no marks or one mark, mark the pulley hub with paint before installing it. If the pulley hub has 2 marks, install a new pulley.

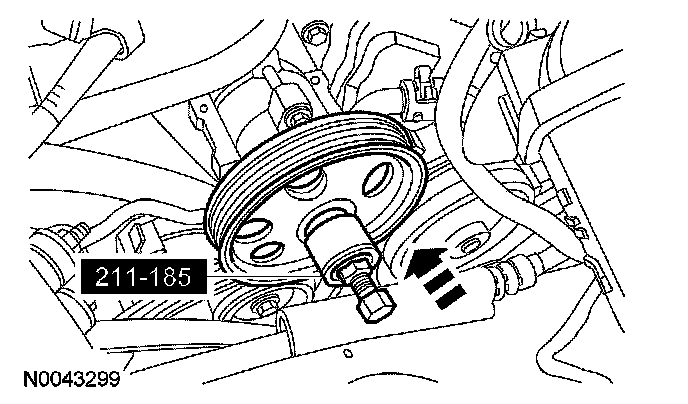

Using the special tool, install the power steering pump pulley.
