Power Steering Fluid Cooler: Service and Repair

Power Steering Fluid Cooler

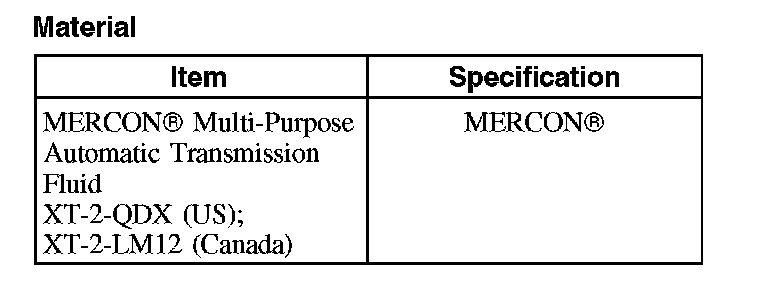

Material:

Removal and Installation

CAUTION: When repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

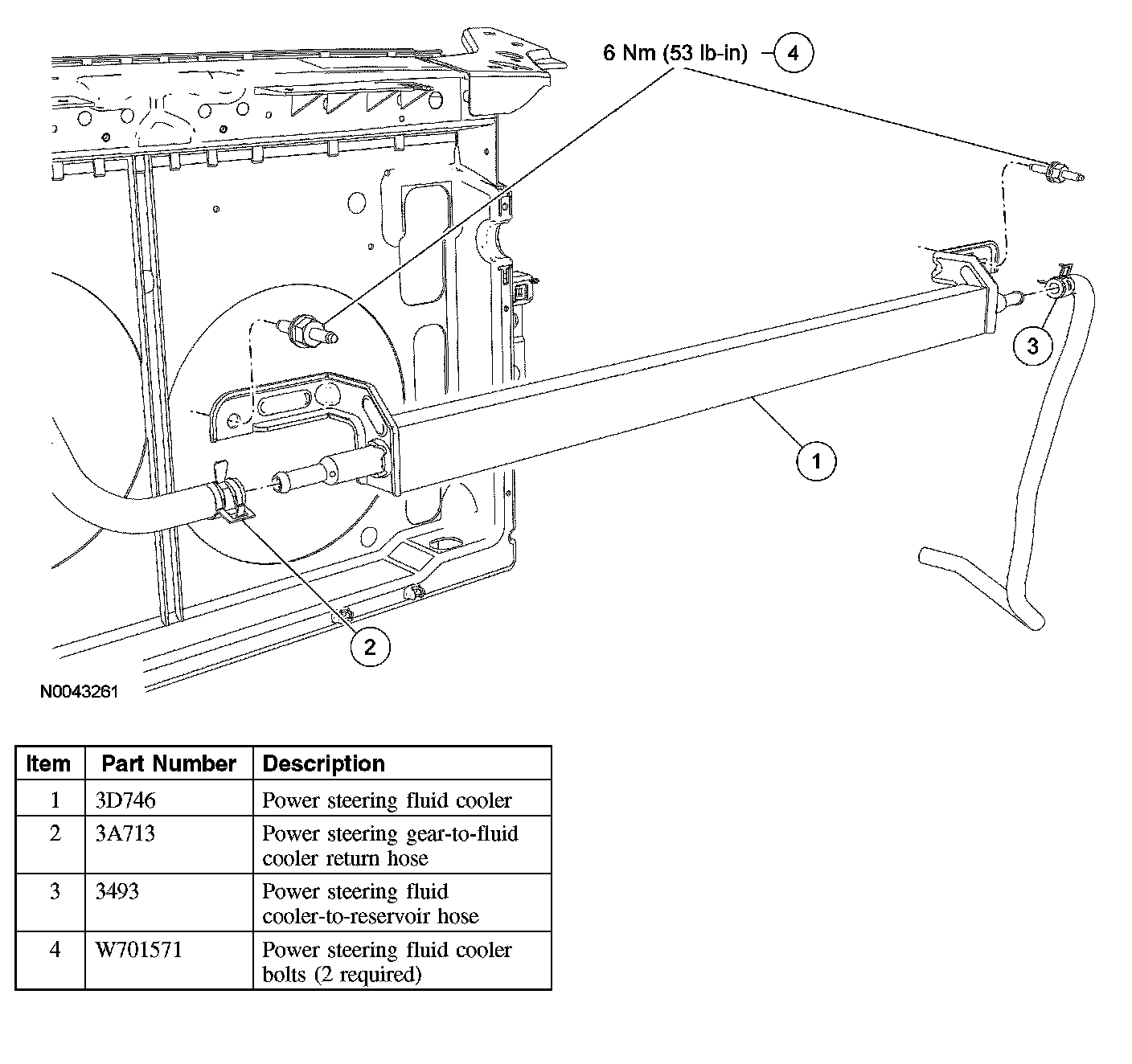

1. Remove the radiator grille.
2. Release the clamps and disconnect the hoses from the power steering cooler.
3. Remove the 2 bolts and the power steering fluid cooler.
^ To install, tighten to 6 Nm (53 inch lbs.).
4. To install, reverse the removal procedure.
^ Fill the power steering system.
