Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Diagrams >> Connector Views

Connector Views

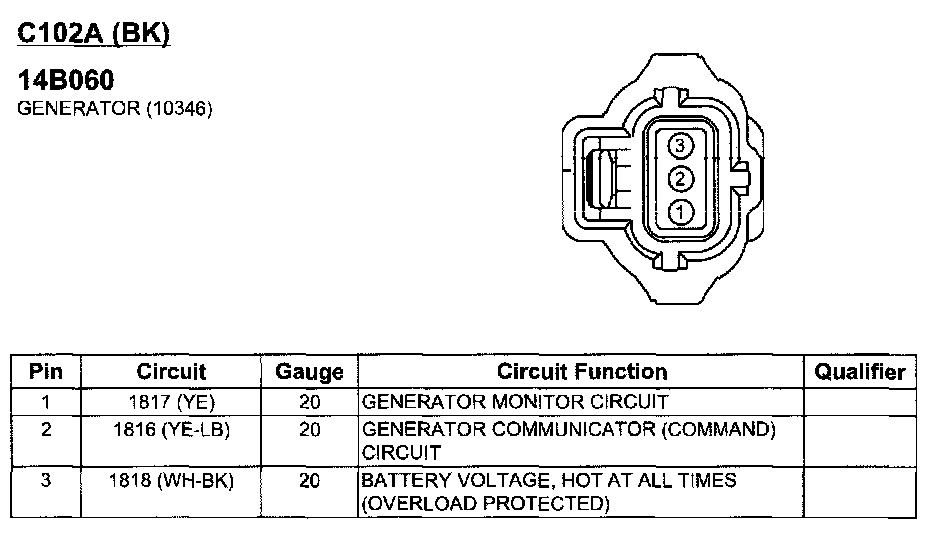

C102A:

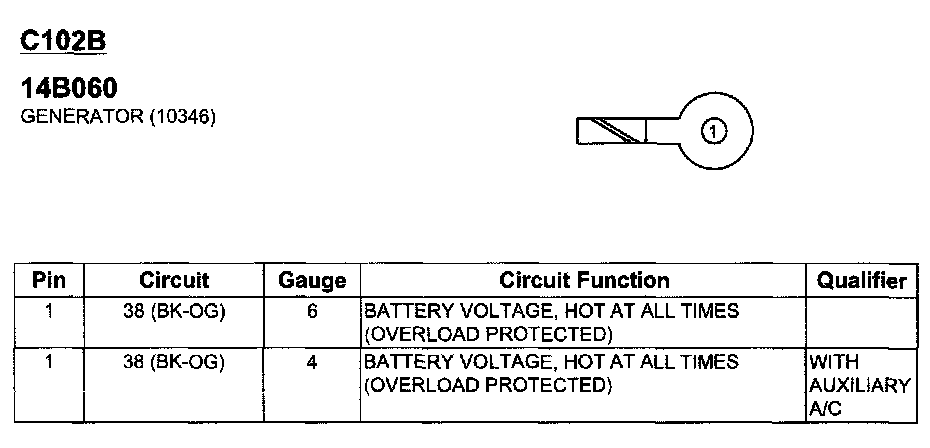

C102B:

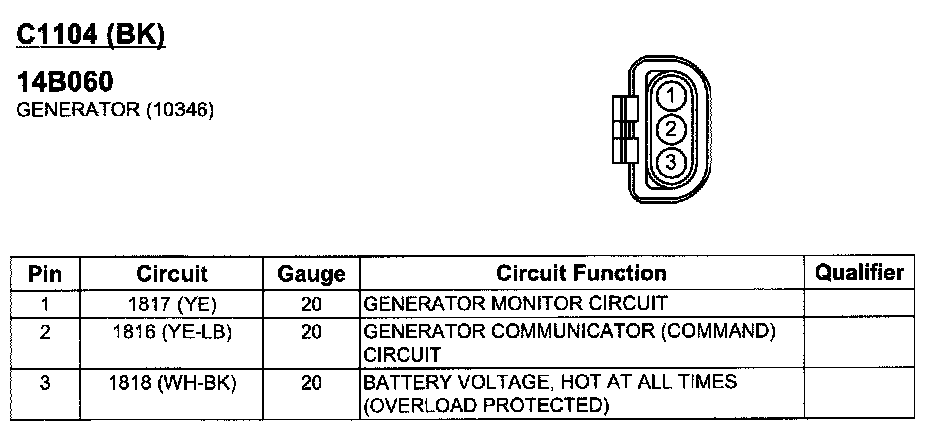

C1104:
