Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

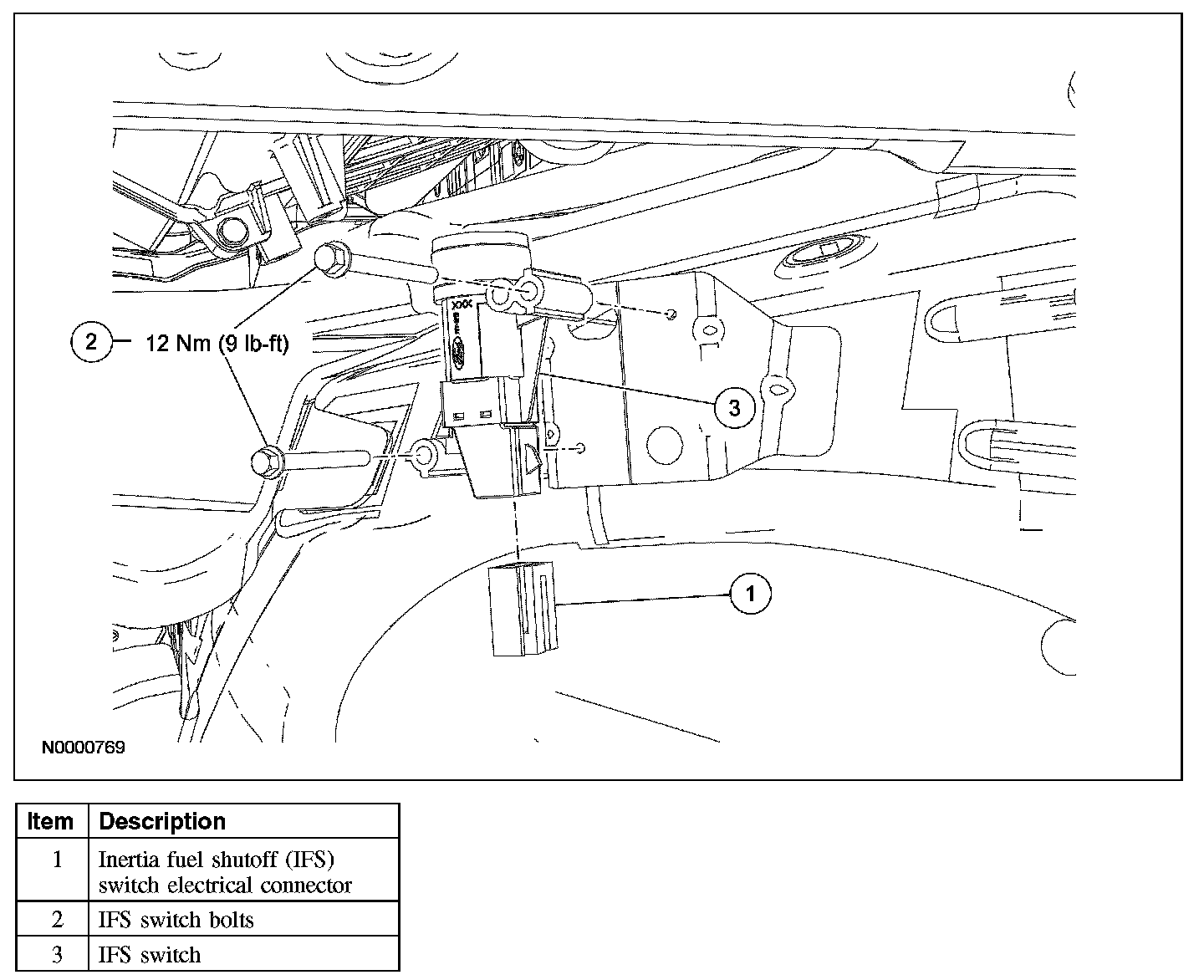

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the RH cowl side trim panel.
3. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.
4. Remove the 2 IFS switch retaining bolts.
- To install, tighten to 12 Nm (9 lb-ft).

5. Remove the IFS switch.
6. To install, reverse the removal procedure.
