Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Door Switch >> Diagrams >> Door Ajar Switch, Left Front

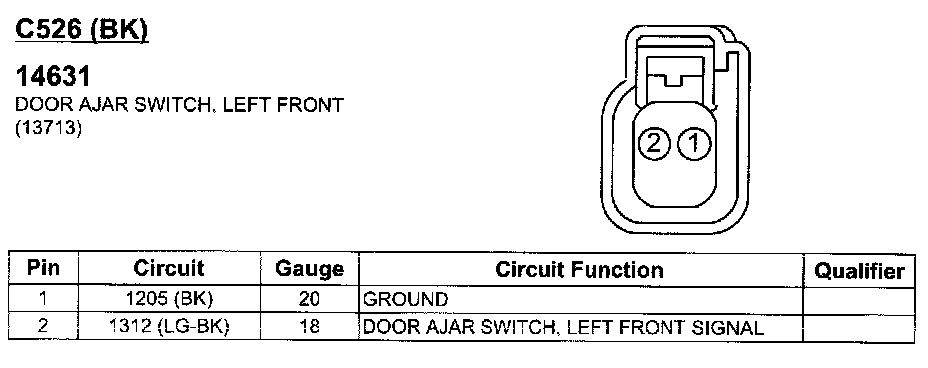

Door Ajar Switch, Left Front

C526:
