Blower Motor Switch: Service and Repair

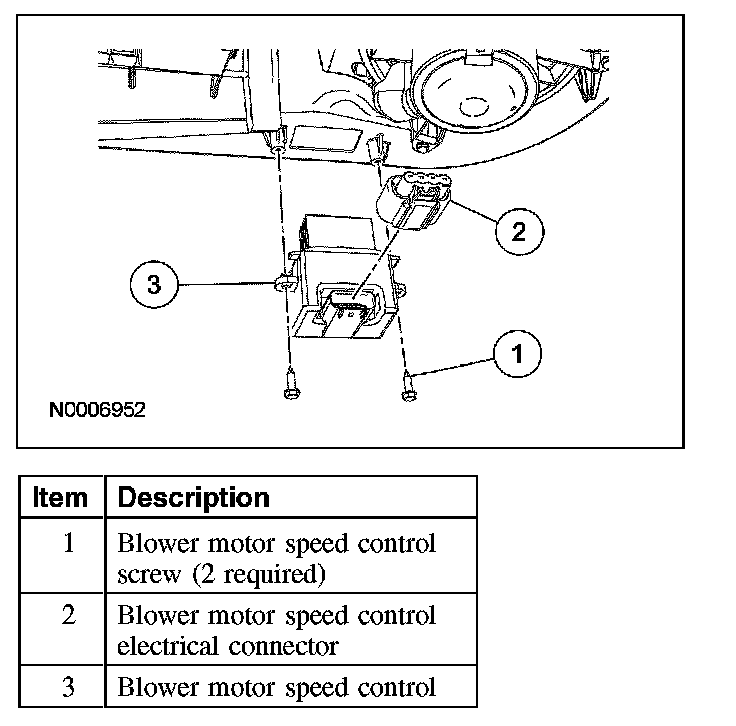

BLOWER MOTOR SPEED CONTROL







Removal and Installation
1. Remove the RH lower instrument panel insulator.
2. Disconnect the blower motor speed control electrical connector.
3. Remove the 2 blower motor speed control screws.
4. Remove the blower motor speed control.
5. To install, reverse the removal procedure.
