Front Impact Severity Sensor

FRONT IMPACT SEVERITY SENSOR







Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- Freestyle shown, Five Hundred and Montego similar.
- RH side shown, LH side similar.

All vehicles
1. Depower the system.

Freestyle front impact severity sensor

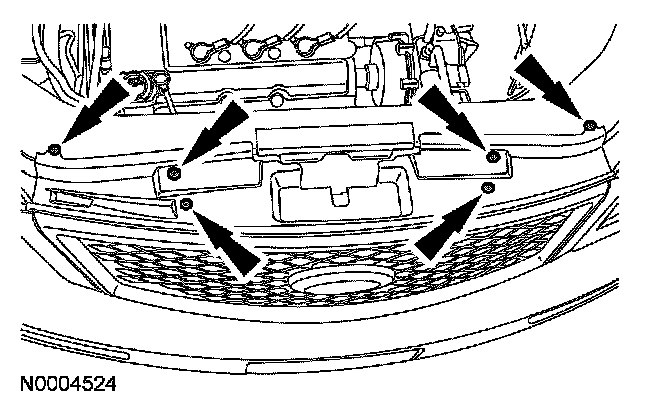

2. Remove the 8 upper grille retainers.

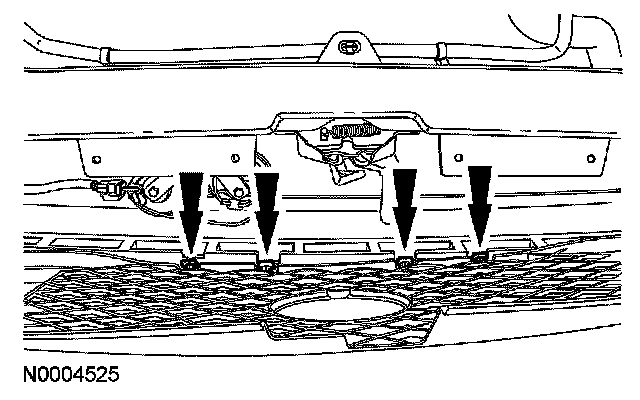

3. Release the 4 lower grille clips and remove the grill.

Five Hundred and Montego front impact severity sensor

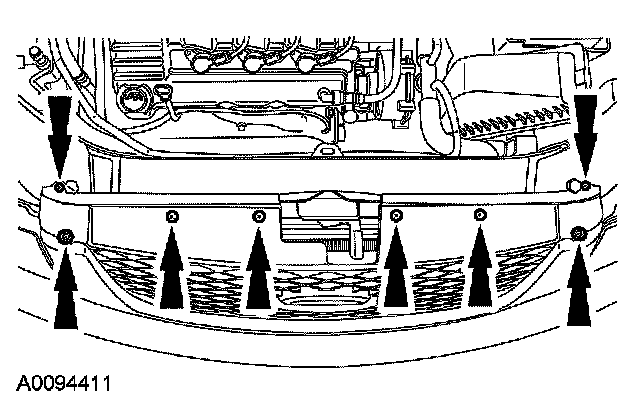

4. Remove the 6 retainers and carefully position out the upper air deflector.

All vehicles

5. WARNING: The tightening torque of the air bag front impact severity sensor retaining nuts is critical for correct system operation.

NOTE:
- Make sure the radiator support and front impact severity sensor mating surfaces are clean and debris free.
- Note position of locator tab on sensor for installation.

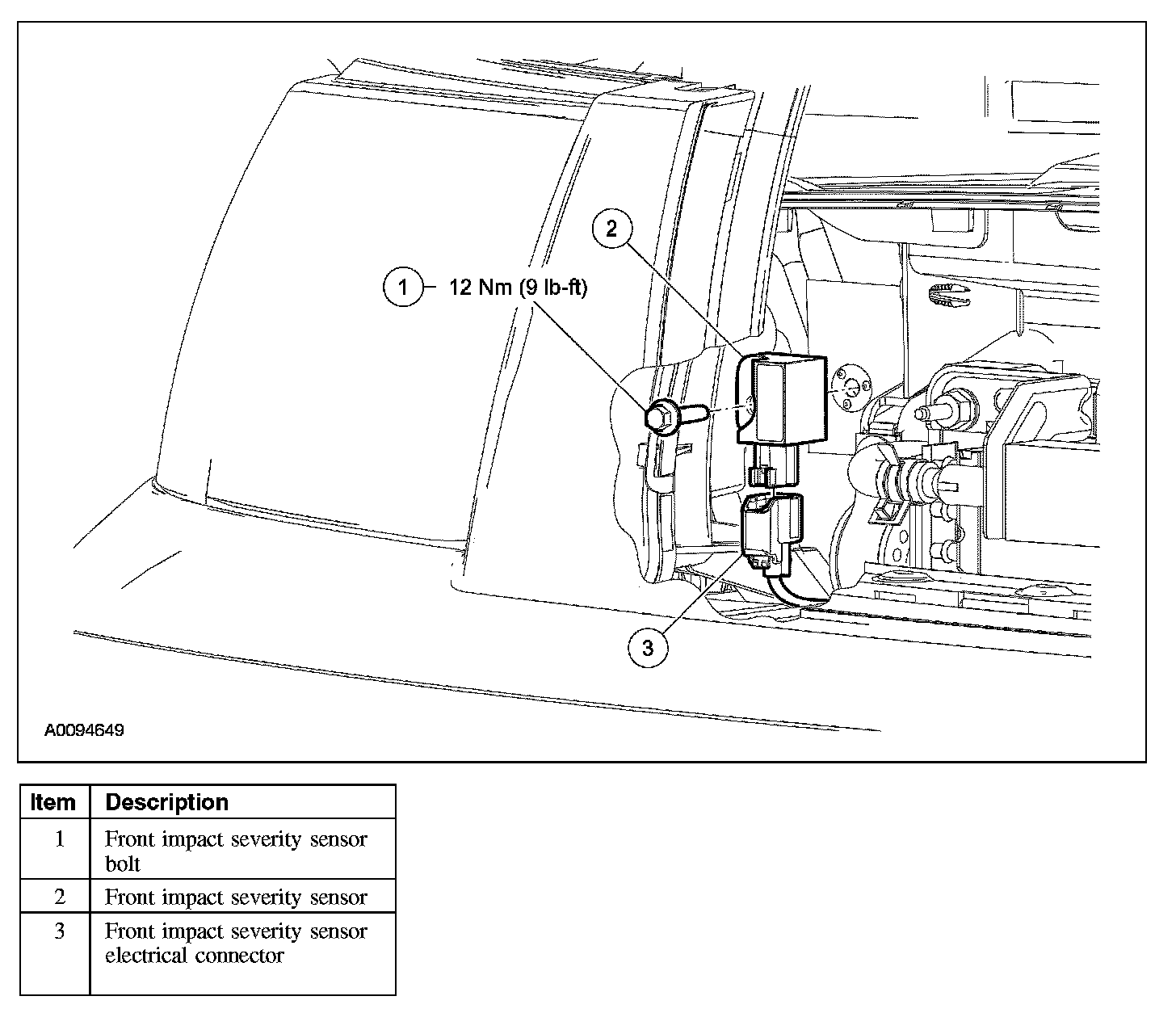

Remove the front impact severity sensor bolt.
- To install, tighten to 12 Nm (9 lb-ft).

6. Disconnect the front impact severity sensor electrical connector and remove the sensor.
7. To install, reverse the removal procedure.
8. Repower the system.
