Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations >> Front Impact Severity Sensor >> Left

Left

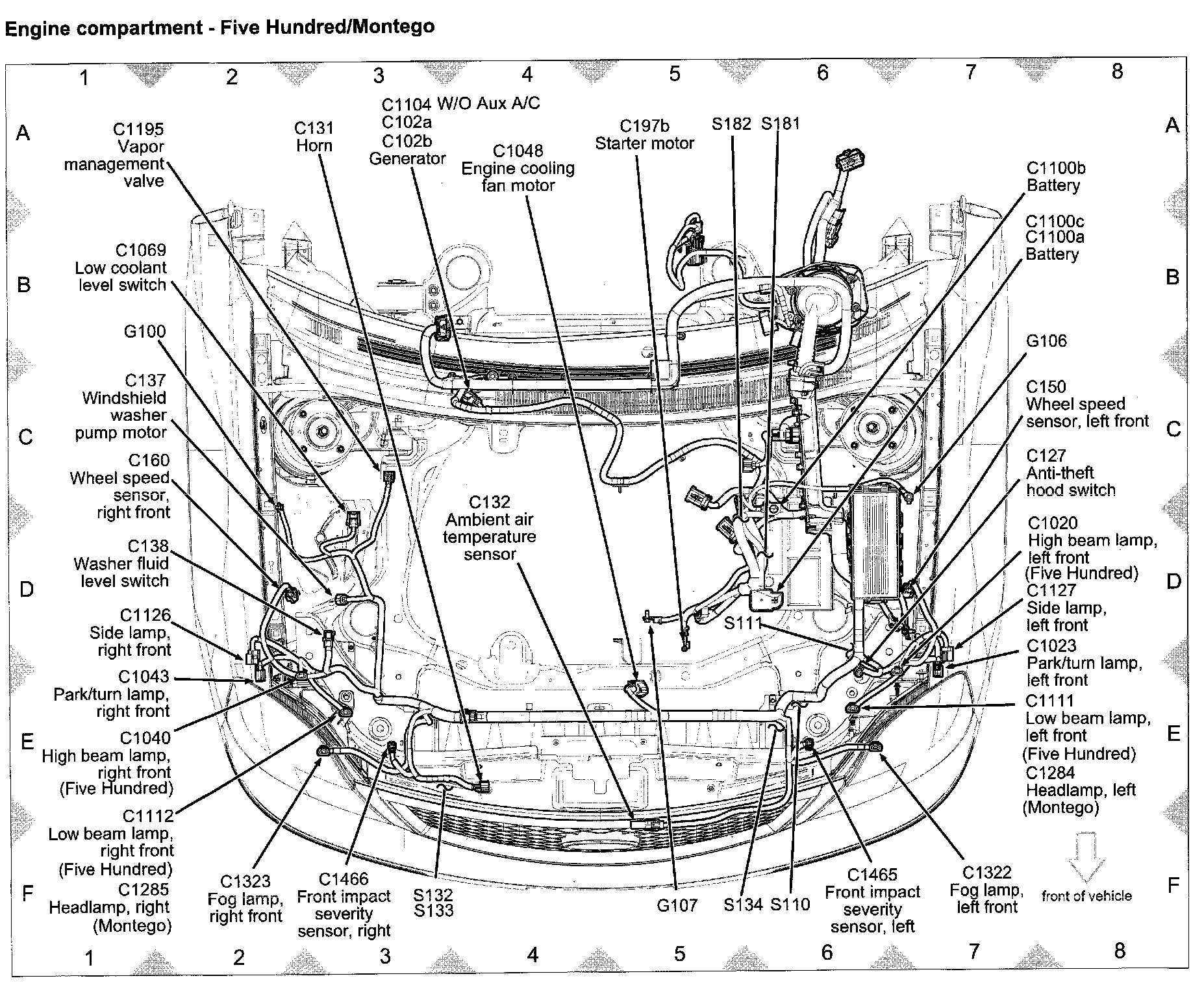

View 151-3 (Engine Compartment - Five Hundred/Montego):
